      Discontinued Parts Drawings & Submittals

      This section provides detailed exploded view drawings for parts and equipment that have become obsolete or are now considered outdated.

      iSeries Blower

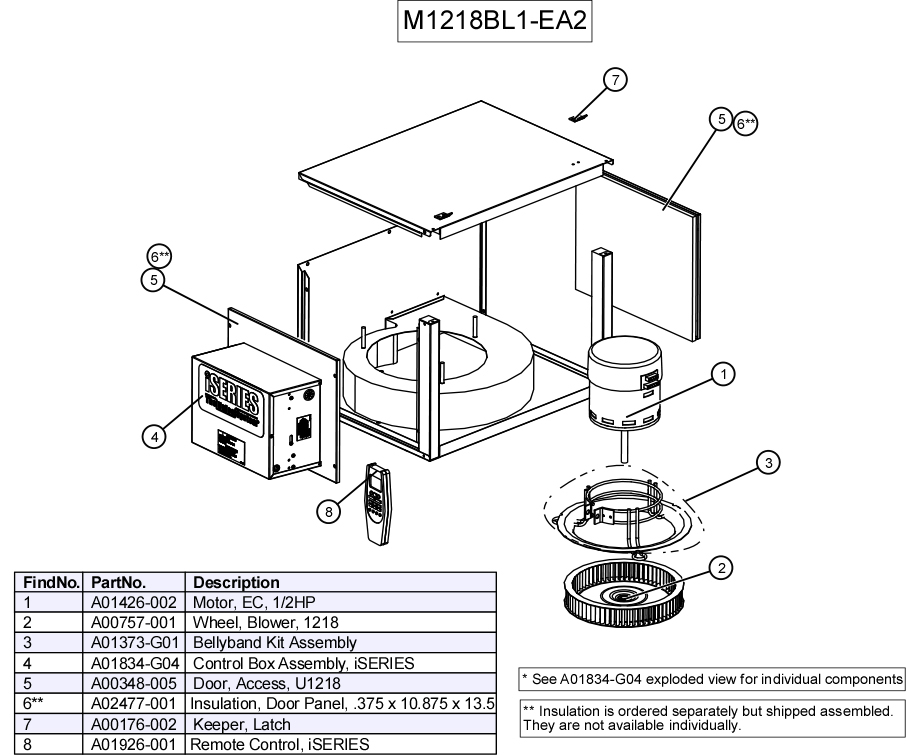

      M1218BL1-EA2
      M1218BL1-EA2



      		 Dimensional Data

      DXF CAD

      Technical Specs

      Submittals

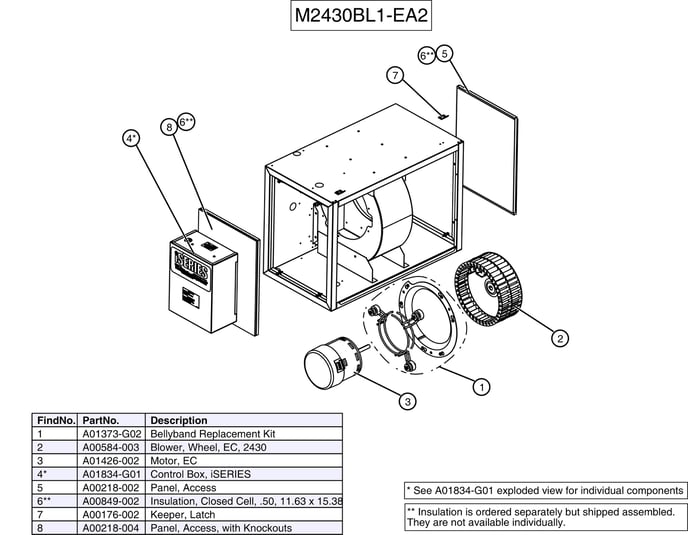

      M2430BL1-EA2
      M2430BL1-EA2_Rev_A



      		 Dimensional Data

      DXF CAD

      Technical Specs

      Submittals

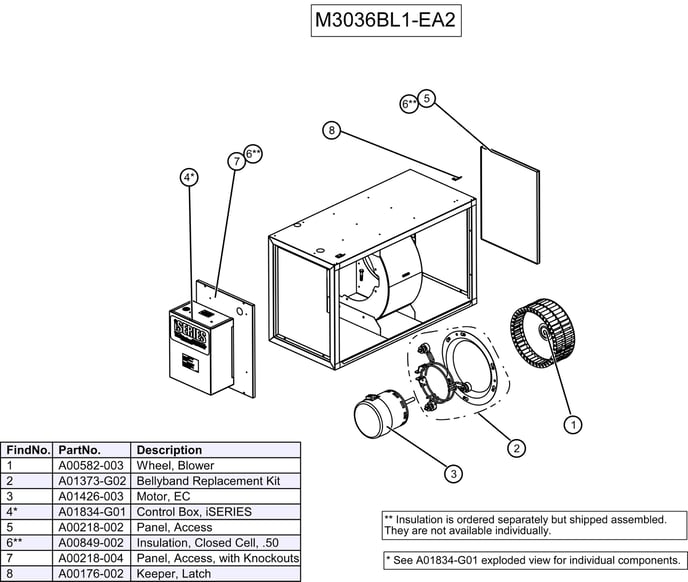

      M3036BL1-EA2
      M3036BL1-EA2_Rev_A



      		 Dimensional Data

      DXF CAD

      Technical Specs

      Submittals
      V2430B-1EA2AH
      V2430B-1EA2AH_Rev_A



      		 Dimensional Data

      DXF CAD

      Technical Specs

      Submittals

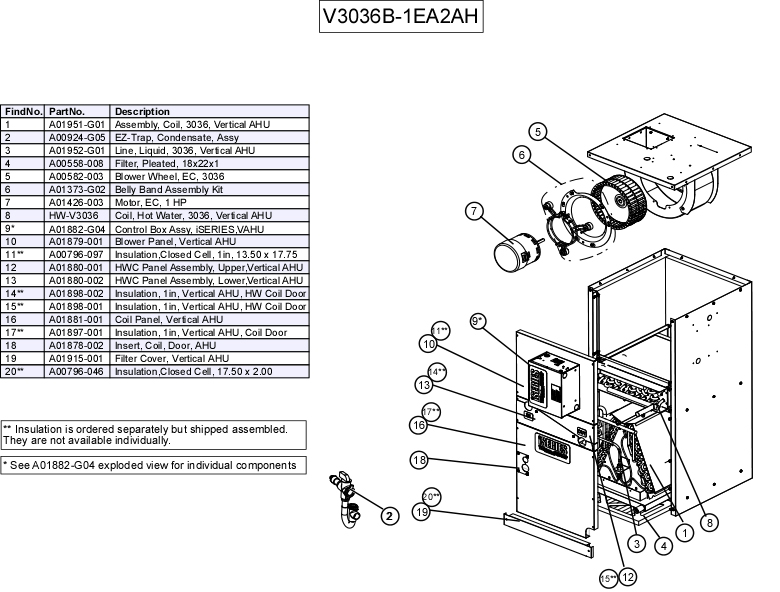

      V3036B-1EA2AH
      V3036B-1EA2AH_Rev_A



      		 Dimensional Data

      DXF CAD

      Technical Specs

      Submittals



      iSeries Coil

      M1218CL1-A
      M1218CL1-A



      		 Dimensional Data

      DXF CAD

      Technical Specs

      Submittals

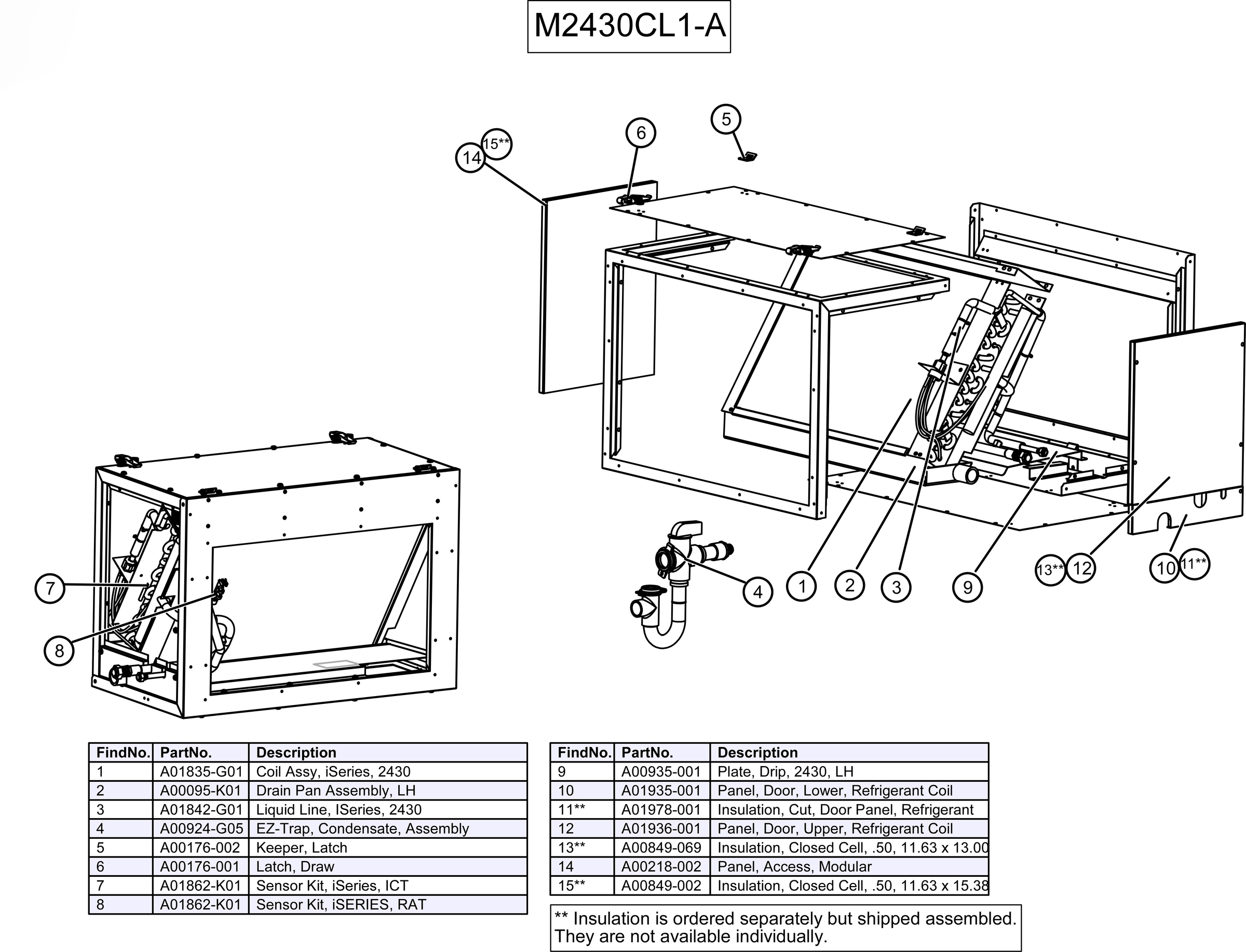

      M2430CL1-A
      M2430CL1-A_Rev_A



      		 Dimensional Data

      DXF CAD

      Technical Specs

      Submittals

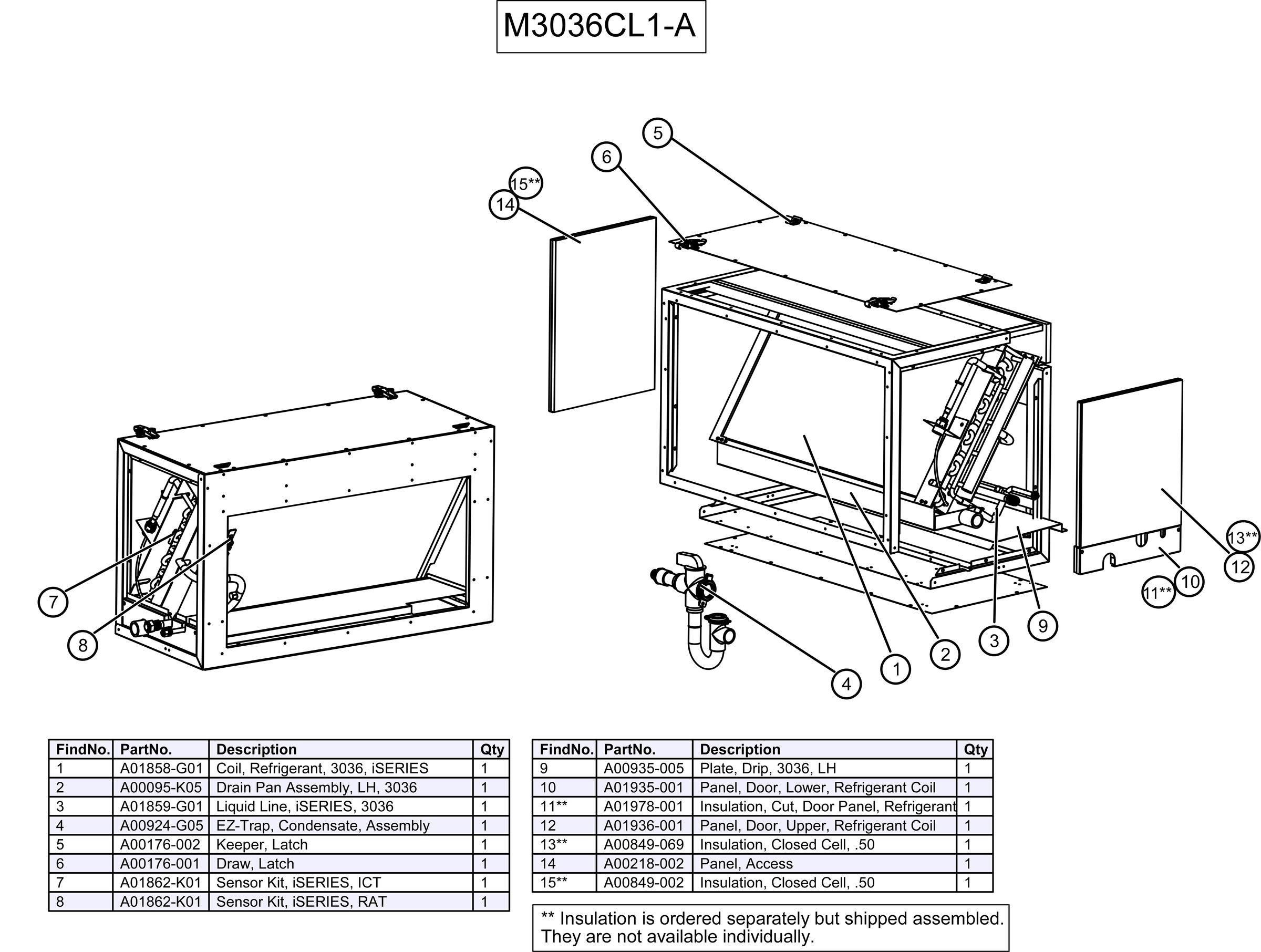

      M3036CL1-A
      M3036CL1-A_Rev_A



      		 Dimensional Data

      DXF CAD

      Technical Specs

      Submittals
