# Vertical Up Flow FCU

## Access specifications, drawings, and more for vertical units from 2 to 3.5 tons. Download and view all necessary information for efficient operation.

[2430's](https://helpcenter.unicosystem.com/knowledge/vertical-ahu#v2430)

[3036's](https://helpcenter.unicosystem.com/knowledge/vertical-ahu#v3036)

[3642's](https://helpcenter.unicosystem.com/knowledge/vertical-ahu#v3642)



**2430's**

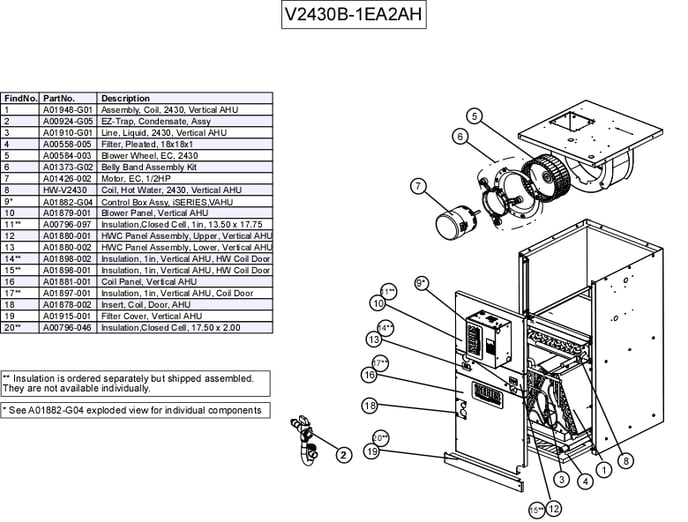

| ![V2430B-1EA2AH\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V2430B-1EA2AH_Rev_A.jpg?width=688&height=522&name=V2430B-1EA2AH_Rev_A.jpg) | Dimensional Data DXF CAD Technical Specs Submittals |
| --- | --- |
| V2430B-1EC2BH |  |

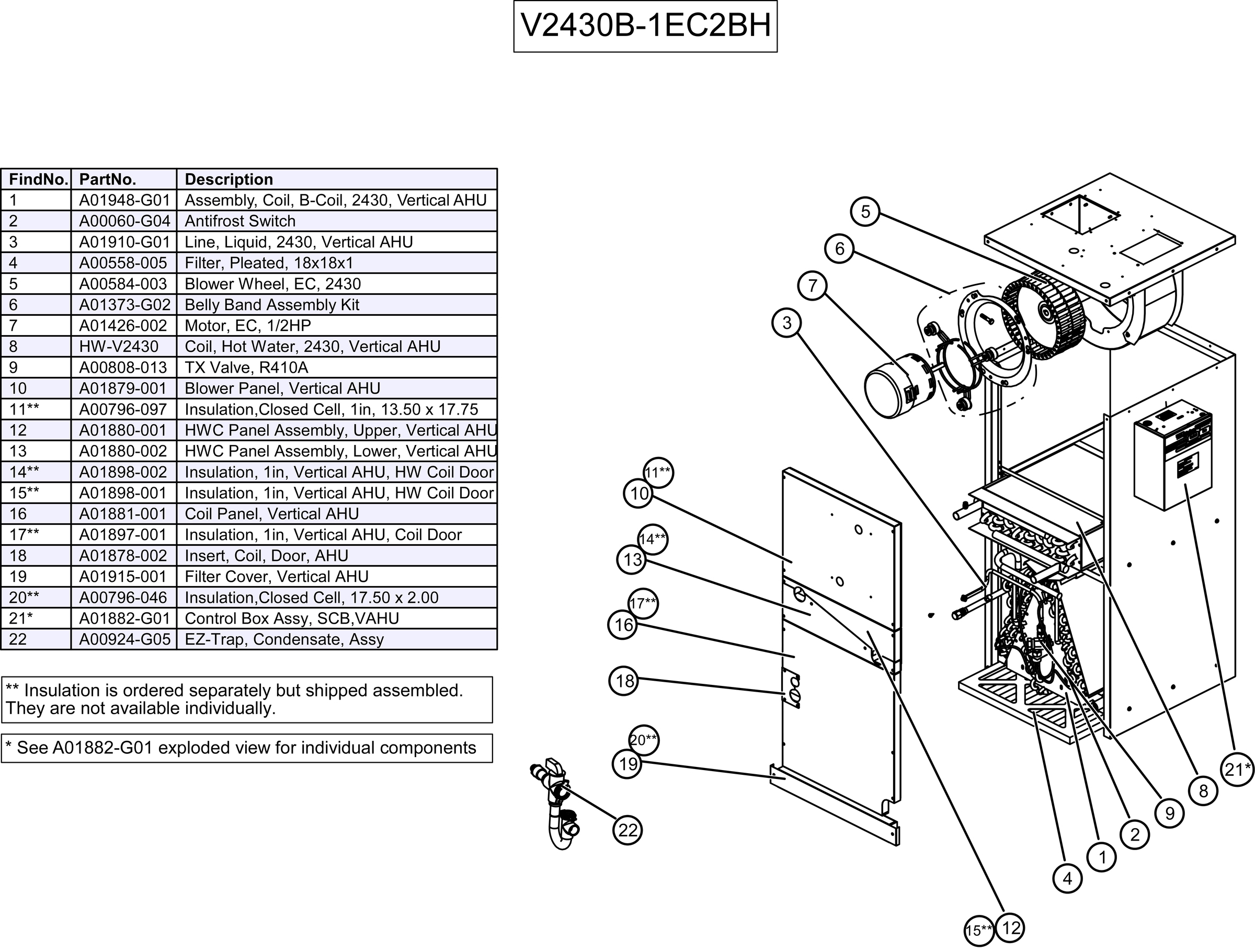

| [![V2430B-1EC2BH\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V2430B-1EC2BH_Rev_A.jpg?width=688&height=522&name=V2430B-1EC2BH_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V2430B-1EC2BH_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
| V2430B-1EC2CH |  |
| ![V2430B-1EC2CH\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V2430B-1EC2CH_Rev_A.jpg?width=688&height=447&name=V2430B-1EC2CH_Rev_A.jpg) | Dimensional Data DXF CAD Technical Specs Submittals |
| V2430B-1EC2EH |  |

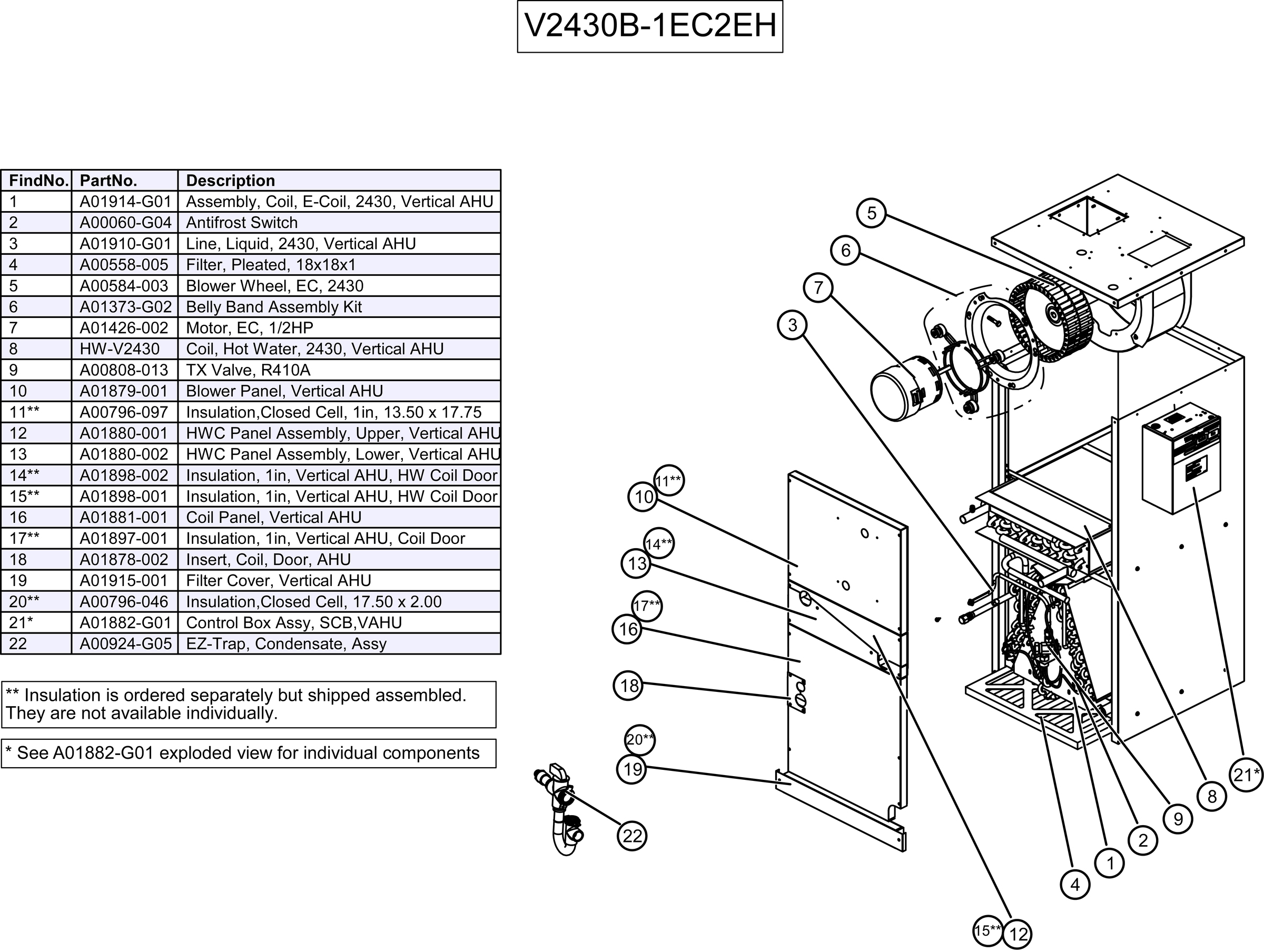

| [![V2430B-1EC2EH\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V2430B-1EC2EH_Rev_A.jpg?width=688&height=518&name=V2430B-1EC2EH_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V2430B-1EC2EH_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

[Back to top](https://helpcenter.unicosystem.com/knowledge/vertical-ahu#back_to_top)

**3036's**

| V3036B-1EC2BH |  |
| --- | --- |

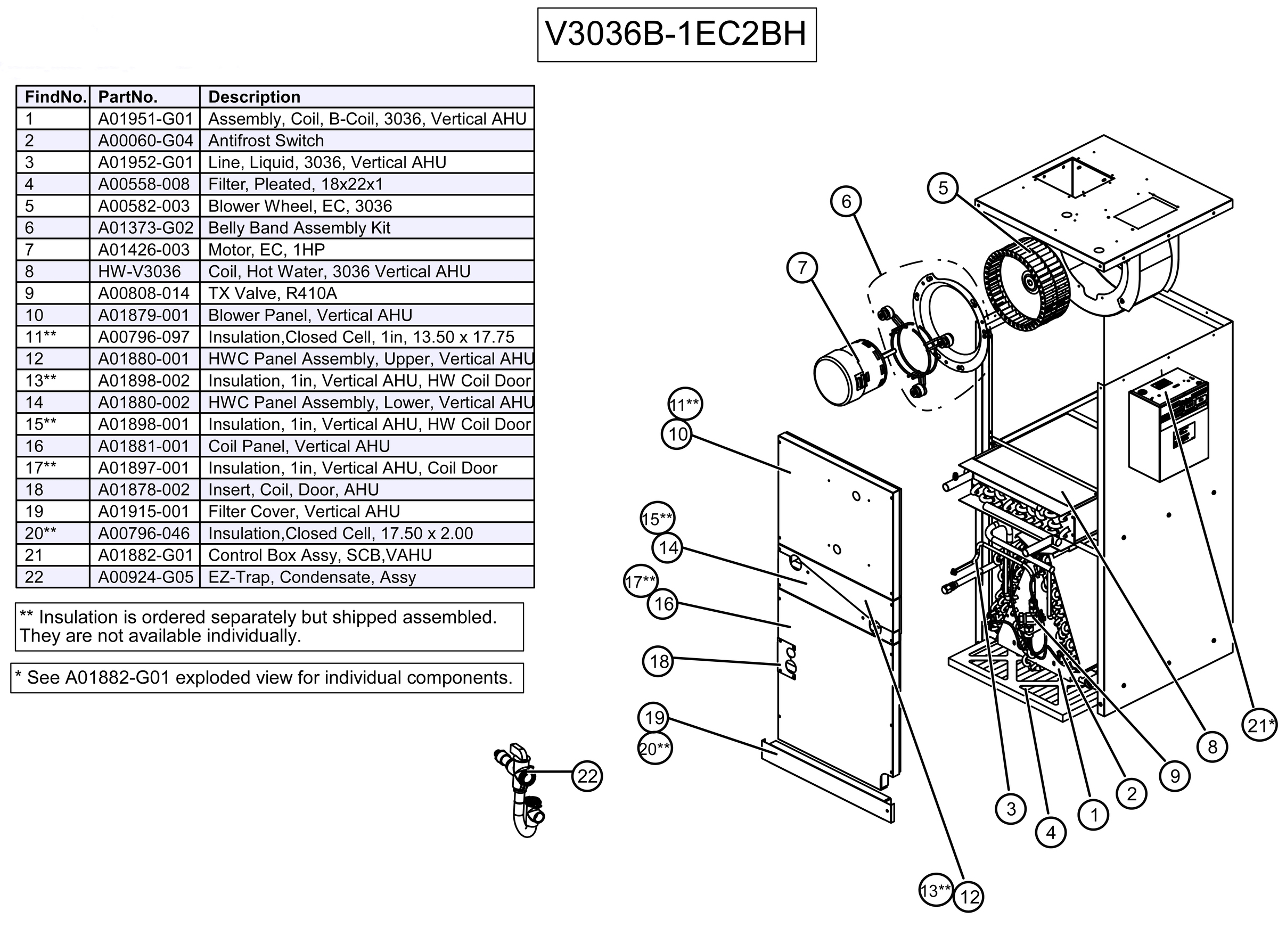

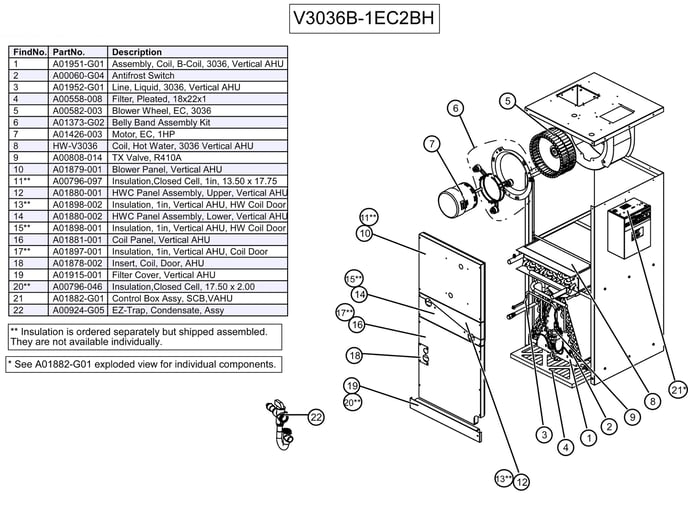

| [![V3036B-1EC2BH\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V3036B-1EC2BH_Rev_A.jpg?width=688&height=513&name=V3036B-1EC2BH_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V3036B-1EC2BH_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
| V3036B-1EC2CH |  |

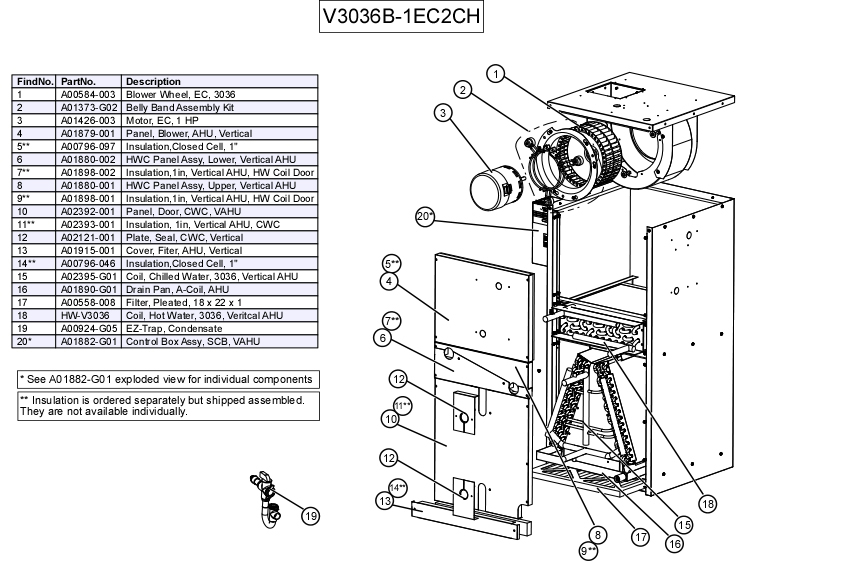

| [![V3036B-1EC2CH\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V3036B-1EC2CH_Rev_A.jpg?width=688&height=447&name=V3036B-1EC2CH_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V3036B-1EC2CH_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
| V3036B-1EC2EH |  |
| [![V3036B-1EC2EH\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V3036B-1EC2EH_Rev_A.jpg?width=688&height=512&name=V3036B-1EC2EH_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V3036B-1EC2EH_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

[Back to top](https://helpcenter.unicosystem.com/knowledge/vertical-ahu#back_to_top)

**3642's**

| V3642B-1EC2BH |  |
| --- | --- |

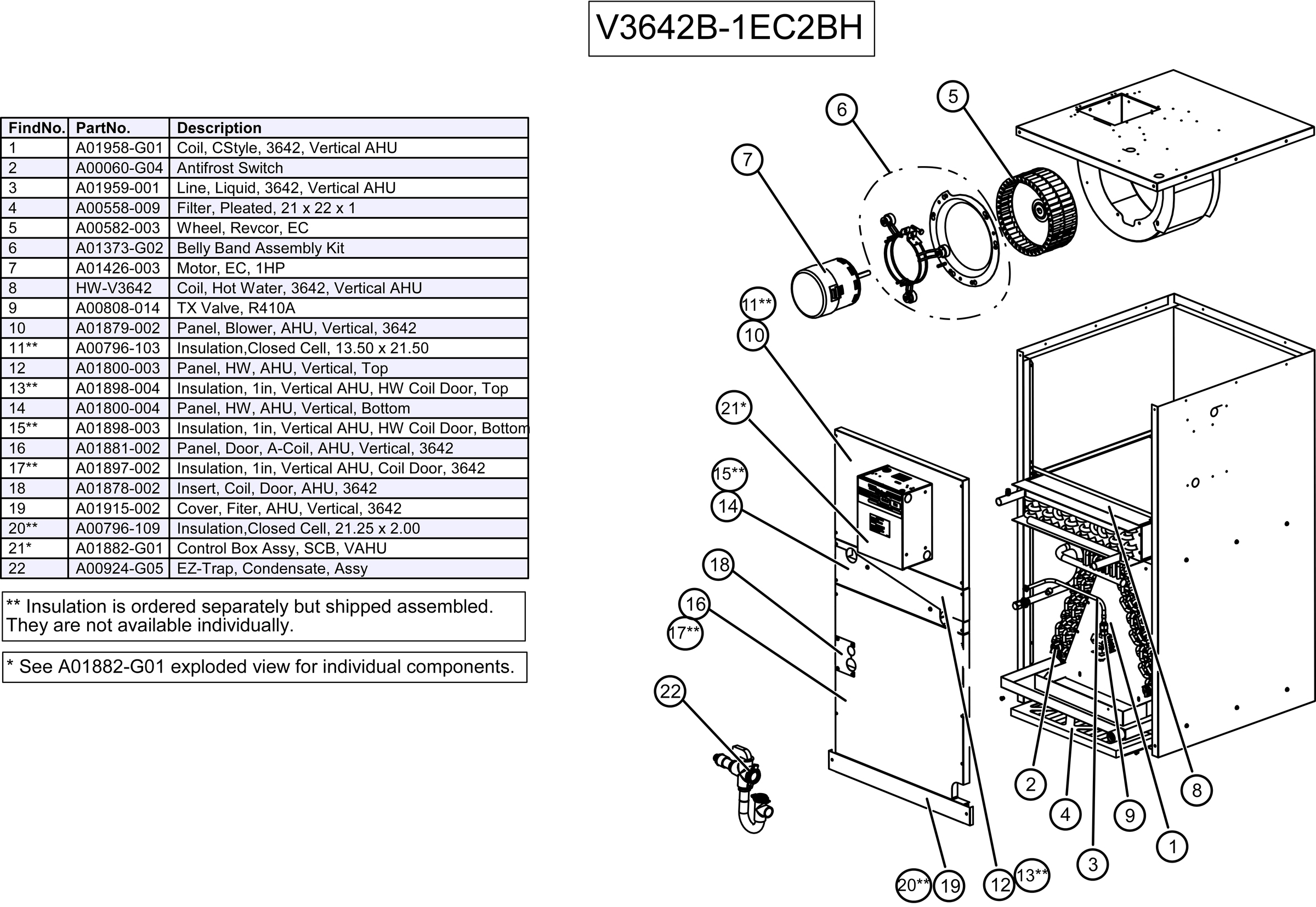

| [![V3642B-1EC2BH](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V3642B-1EC2BH.jpg?width=688&height=474&name=V3642B-1EC2BH.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V3642B-1EC2BH.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
| V3642B-1EC2CH |  |

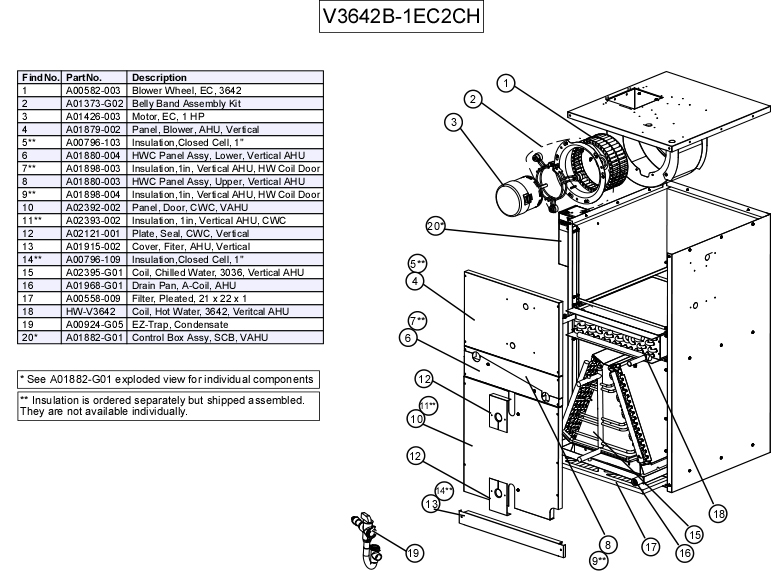

| [![V3642B-1EC2CH\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V3642B-1EC2CH_Rev_A.jpg?width=688&height=510&name=V3642B-1EC2CH_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V3642B-1EC2CH_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
| V3642B-1EC2EH |  |

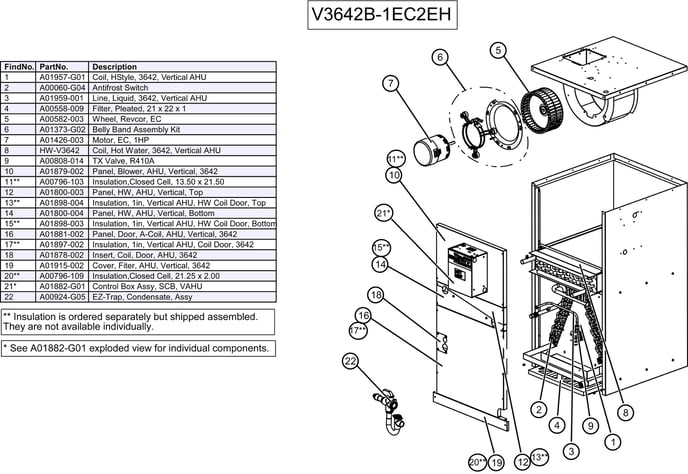

| [![V3642B-1EC2EH](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V3642B-1EC2EH.jpg?width=688&height=474&name=V3642B-1EC2EH.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Vertical%20AHU/V3642B-1EC2EH.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
