# Coil Modules

## Access specifications, drawings, and more for coil modules from 1 to 5 tons. Download and view all necessary information for efficient operation.

[1218 (1 - 1.5 Ton)](https://helpcenter.unicosystem.com/knowledge/coil-ahu#m1218)

[2430 (2 - 2.5 Ton)](https://helpcenter.unicosystem.com/knowledge/coil-ahu#m2430)

[3036 (2.5 - 3 Ton)](https://helpcenter.unicosystem.com/knowledge/coil-ahu#m3036)

[3642 (3 - 3.5 Ton)](https://helpcenter.unicosystem.com/knowledge/coil-ahu#m3642)

[4860 (4 - 5 Ton)](https://helpcenter.unicosystem.com/knowledge/coil-ahu#m4860)



**1218 (1 - 1.5 Ton)**

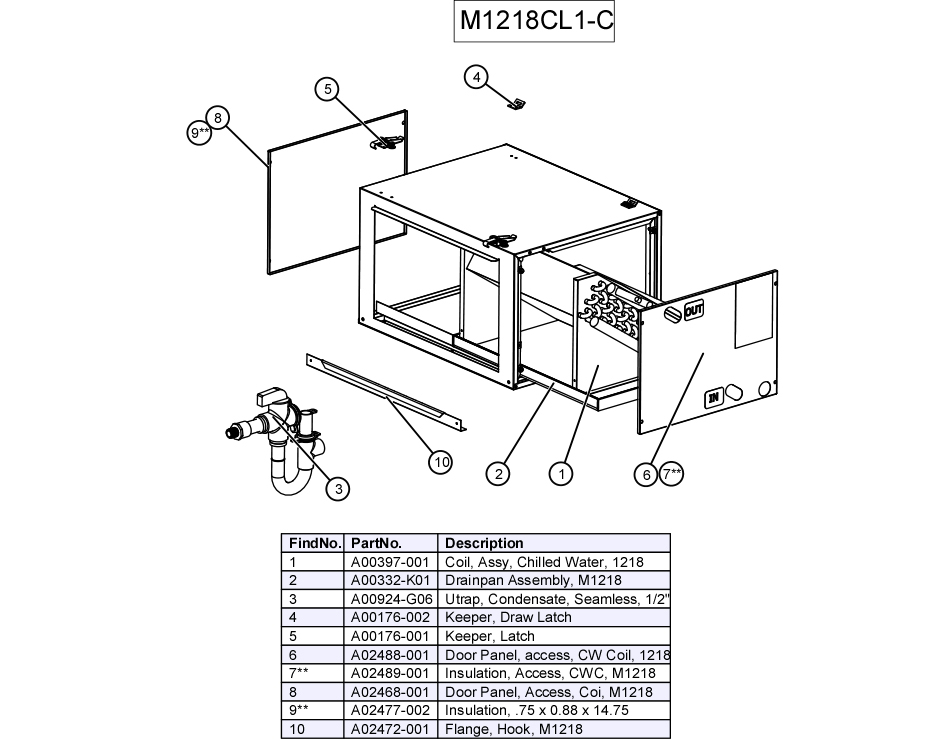

| M1218CL1-C |  |
| --- | --- |
| [![M1218CL1-C](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M1218CL1-C.jpg?width=688&height=538&name=M1218CL1-C.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M1218CL1-C.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

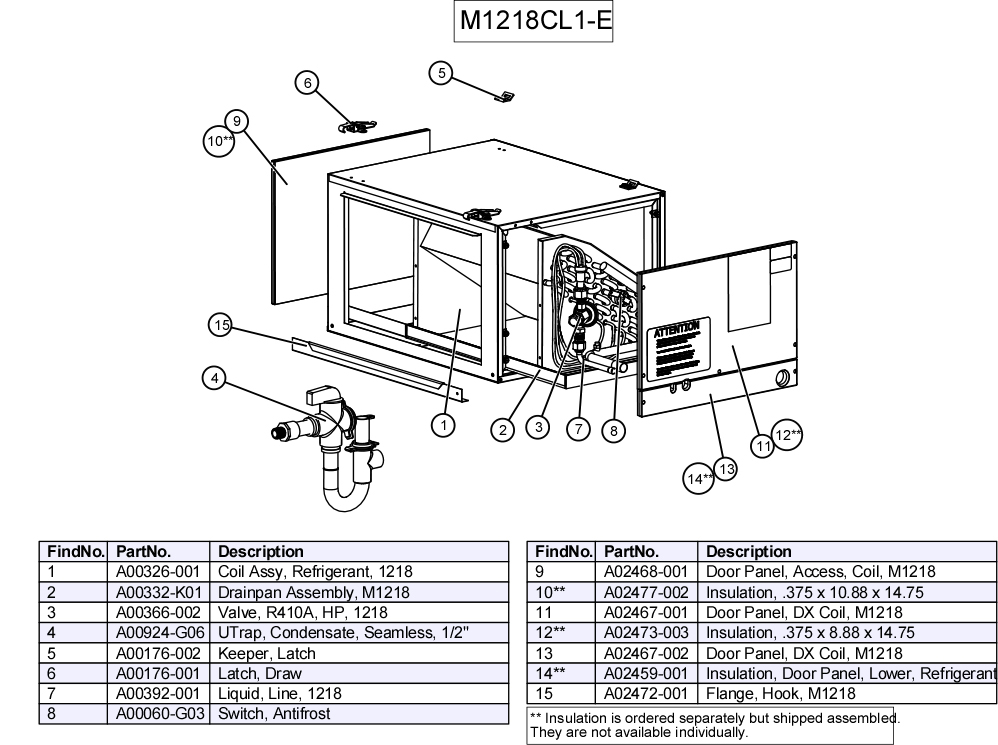

| M1218CL1-E |  |
| [![M1218CL1-E](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M1218CL1-E.jpg?width=688&height=514&name=M1218CL1-E.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M1218CL1-E.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

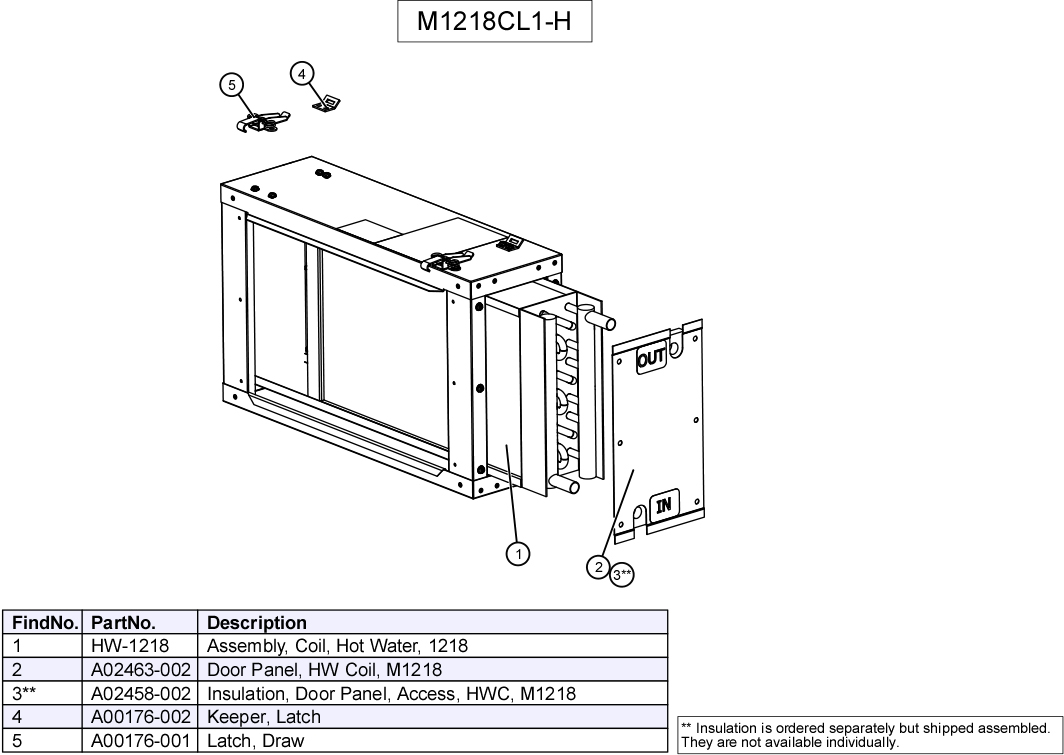

| M1218CL1-H |  |
| [![M1218CL1-H](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M1218CL1-H.jpg?width=688&height=488&name=M1218CL1-H.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M1218CL1-H.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

[Return to top](https://helpcenter.unicosystem.com/knowledge/coil-ahu#back_to_top)

**2430 (2 - 2.5 Ton)**

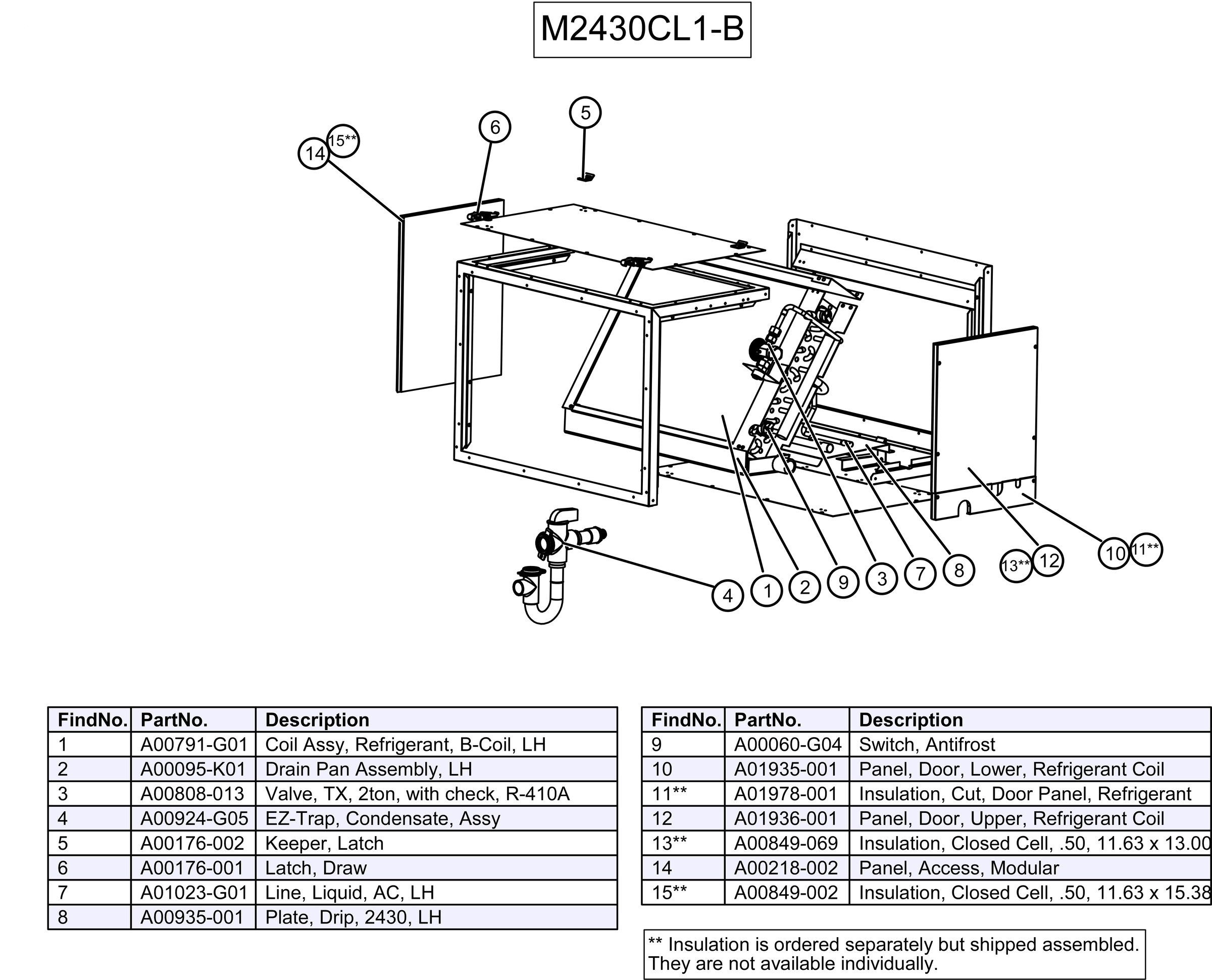

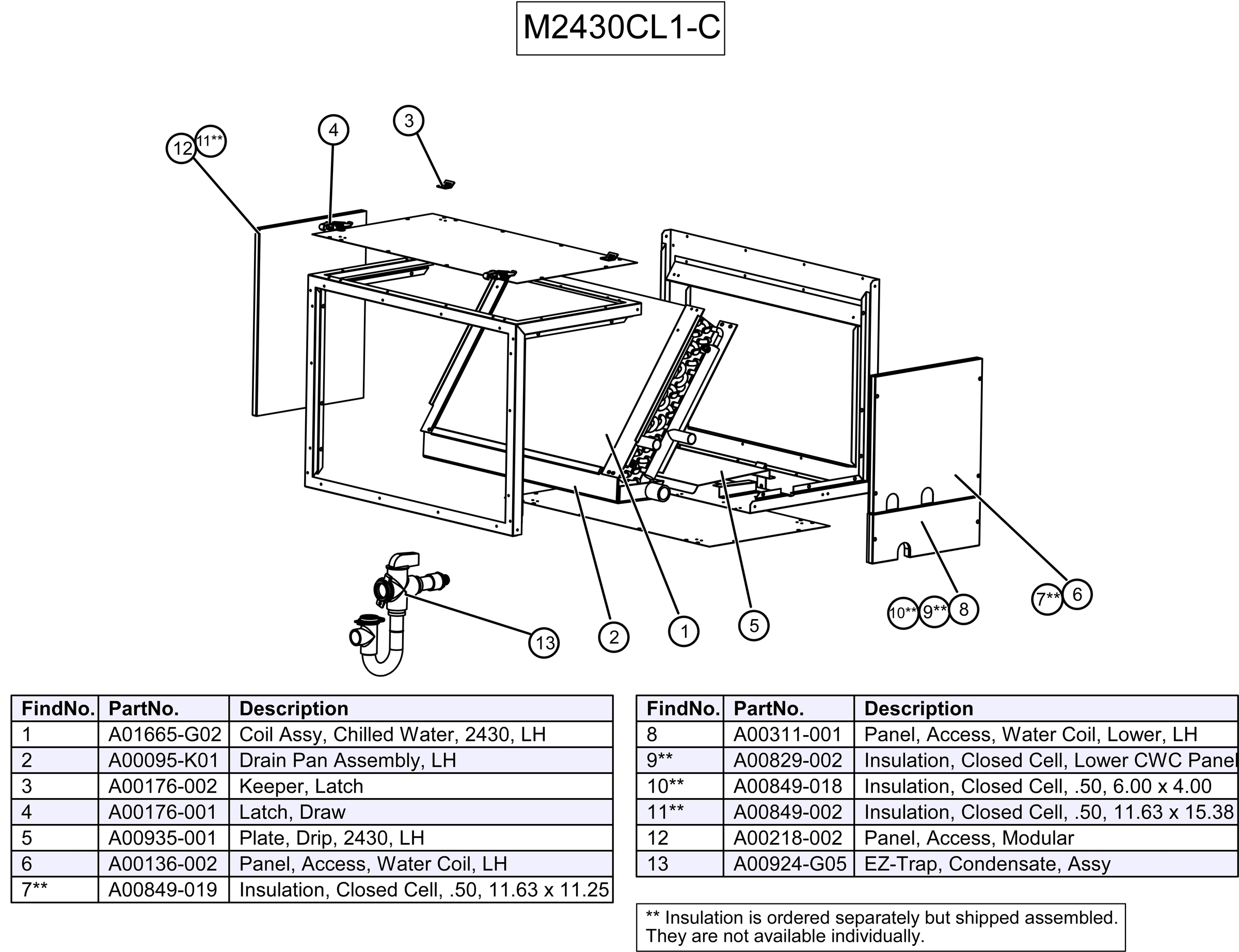

| M2430CL1-B |  |
| --- | --- |
| [![M2430CL1-B\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M2430CL1-B_Rev_A.jpg?width=688&height=556&name=M2430CL1-B_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M2430CL1-B_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

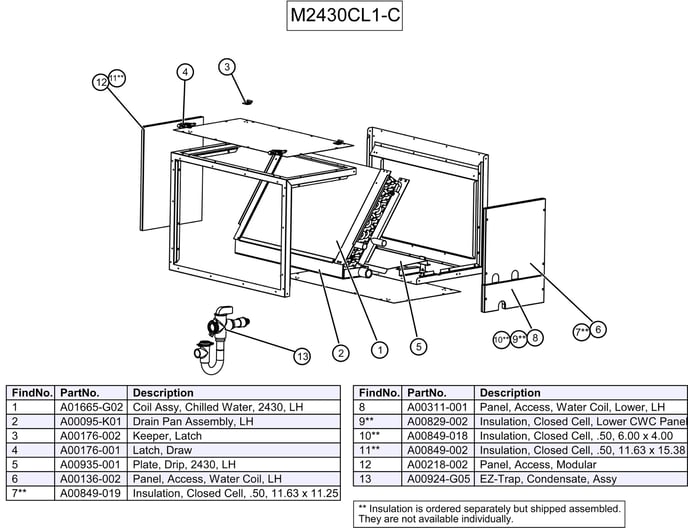

| M2430CL1-C |  |
| [![M2430CL1-C\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M2430CL1-C_Rev_A.jpg?width=688&height=529&name=M2430CL1-C_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M2430CL1-C_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

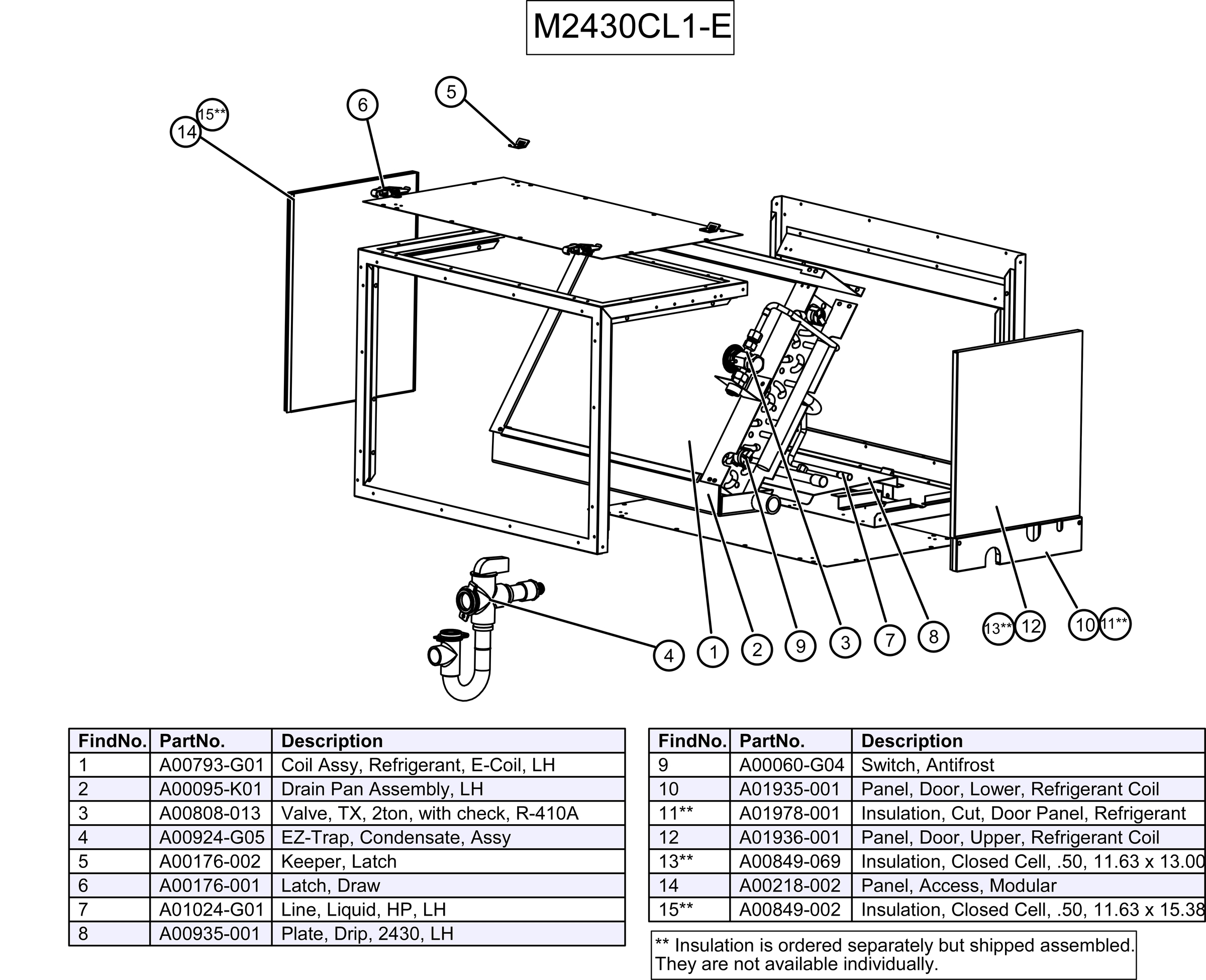

| M2430CL1-E |  |
| [![M2430CL1-E\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M2430CL1-E_Rev_A.jpg?width=688&height=559&name=M2430CL1-E_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M2430CL1-E_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

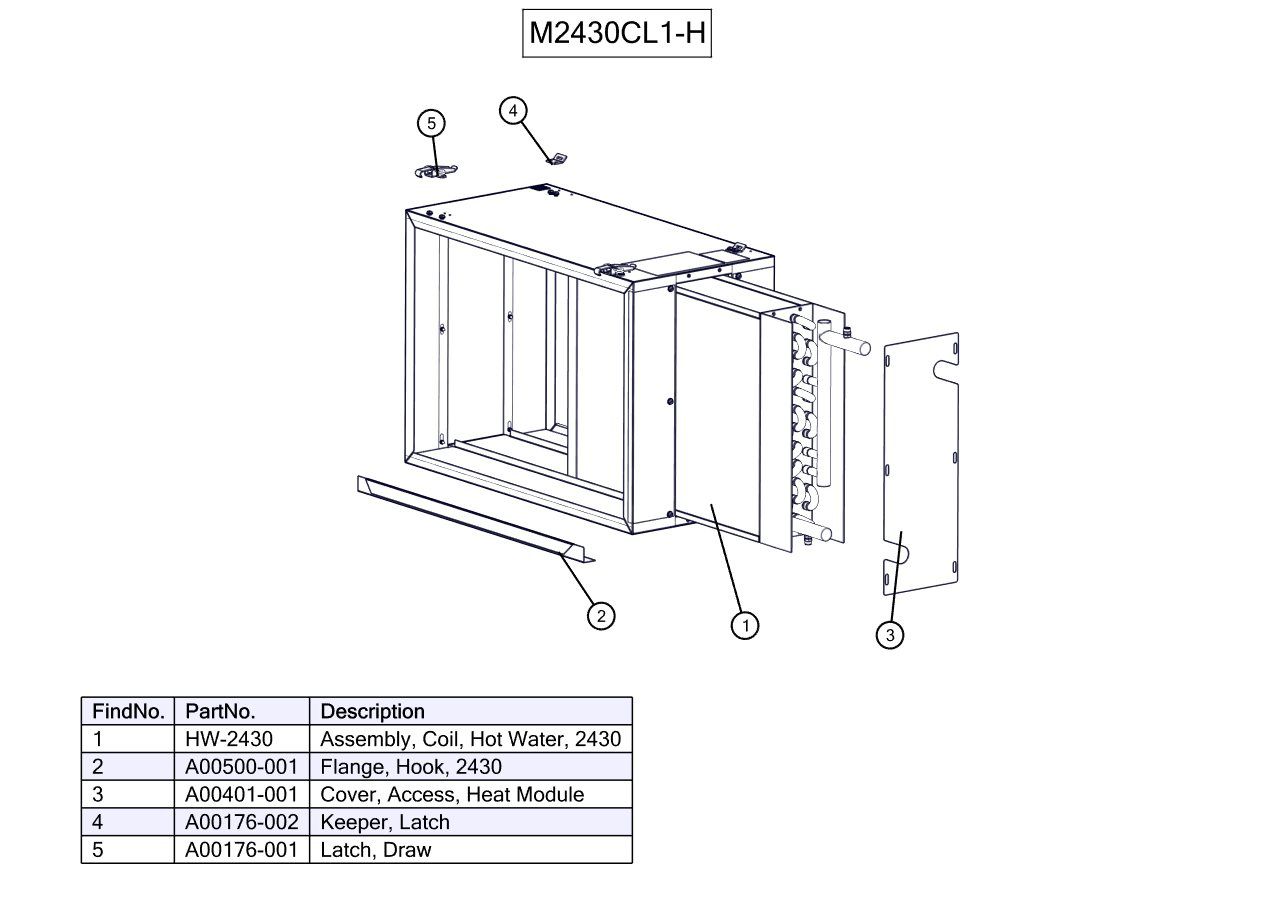

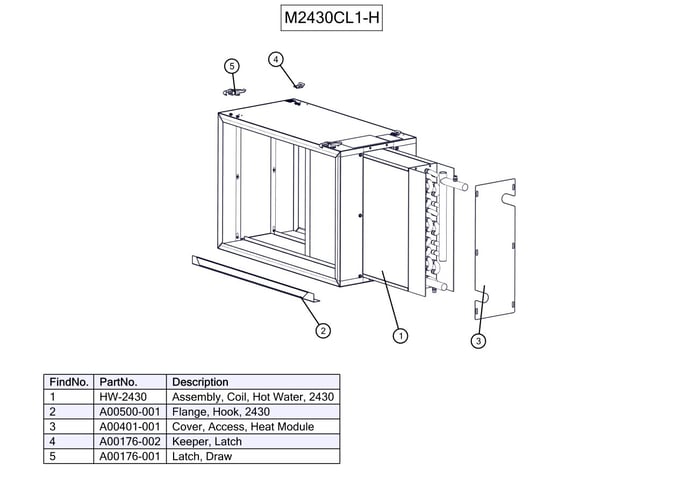

| M2430CL1-H |  |
| [![M2430CL1-H\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M2430CL1-H_Rev_A.jpg?width=688&height=486&name=M2430CL1-H_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M2430CL1-H_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

[Return to top](https://helpcenter.unicosystem.com/knowledge/coil-ahu#back_to_top)

**3036 (2.5 - 3 Ton)**

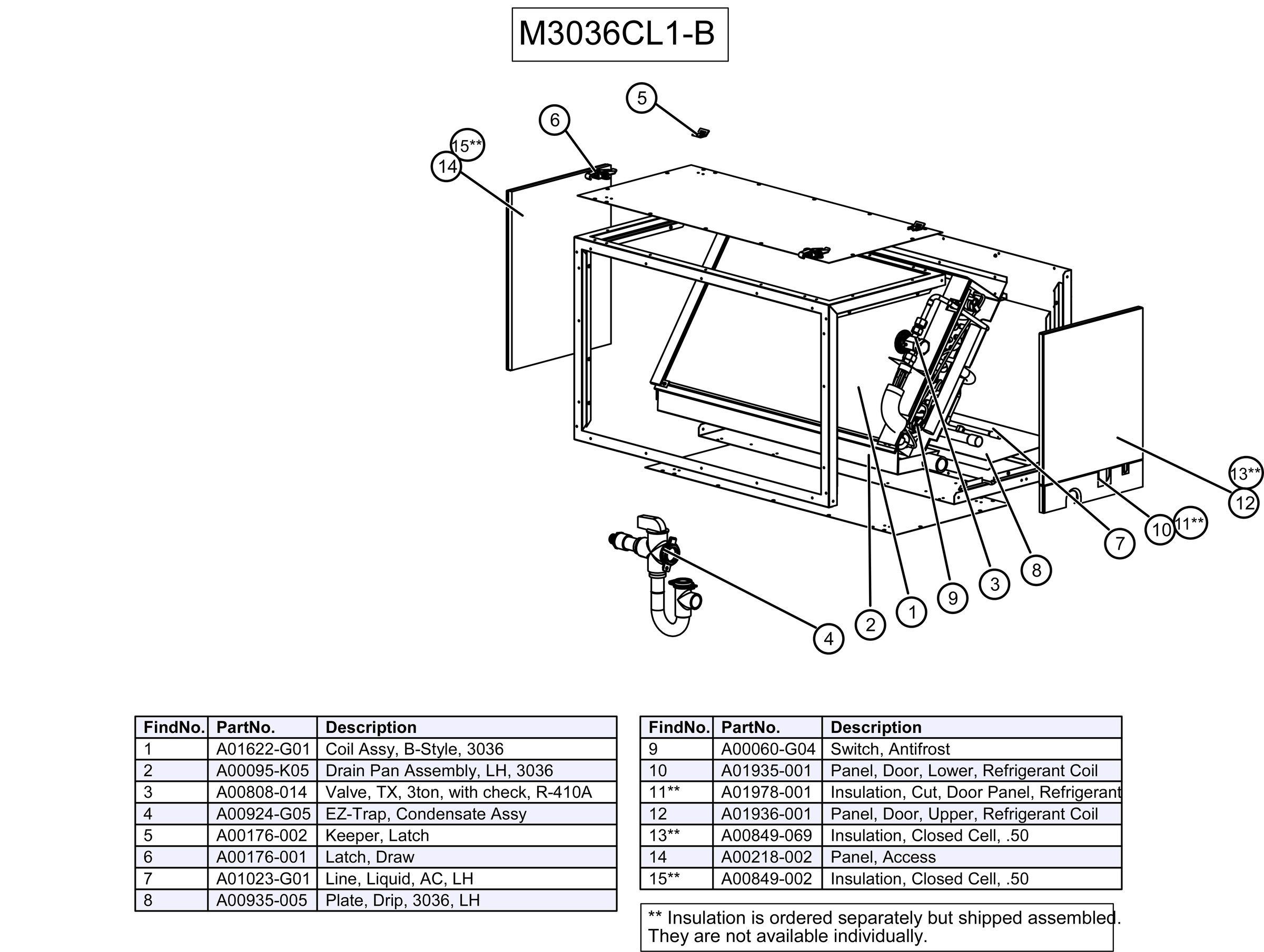

| M3036CL1-B |  |
| --- | --- |
| [![M3036CL1-B\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3036CL1-B_Rev_A.jpg?width=688&height=518&name=M3036CL1-B_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3036CL1-B_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

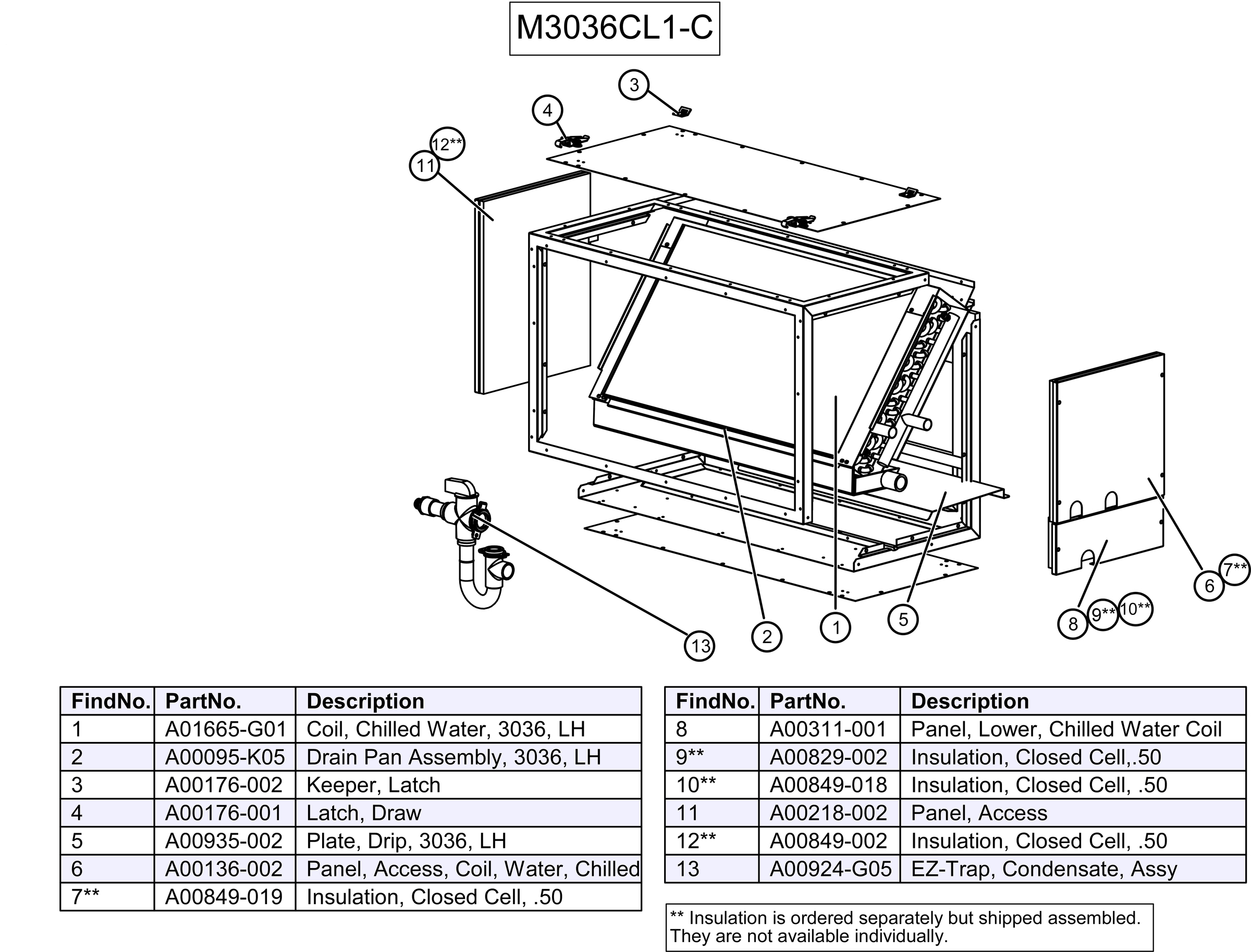

| M3036CL1-C |  |
| [![M3036CL1-C\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3036CL1-C_Rev_A.jpg?width=688&height=524&name=M3036CL1-C_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3036CL1-C_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

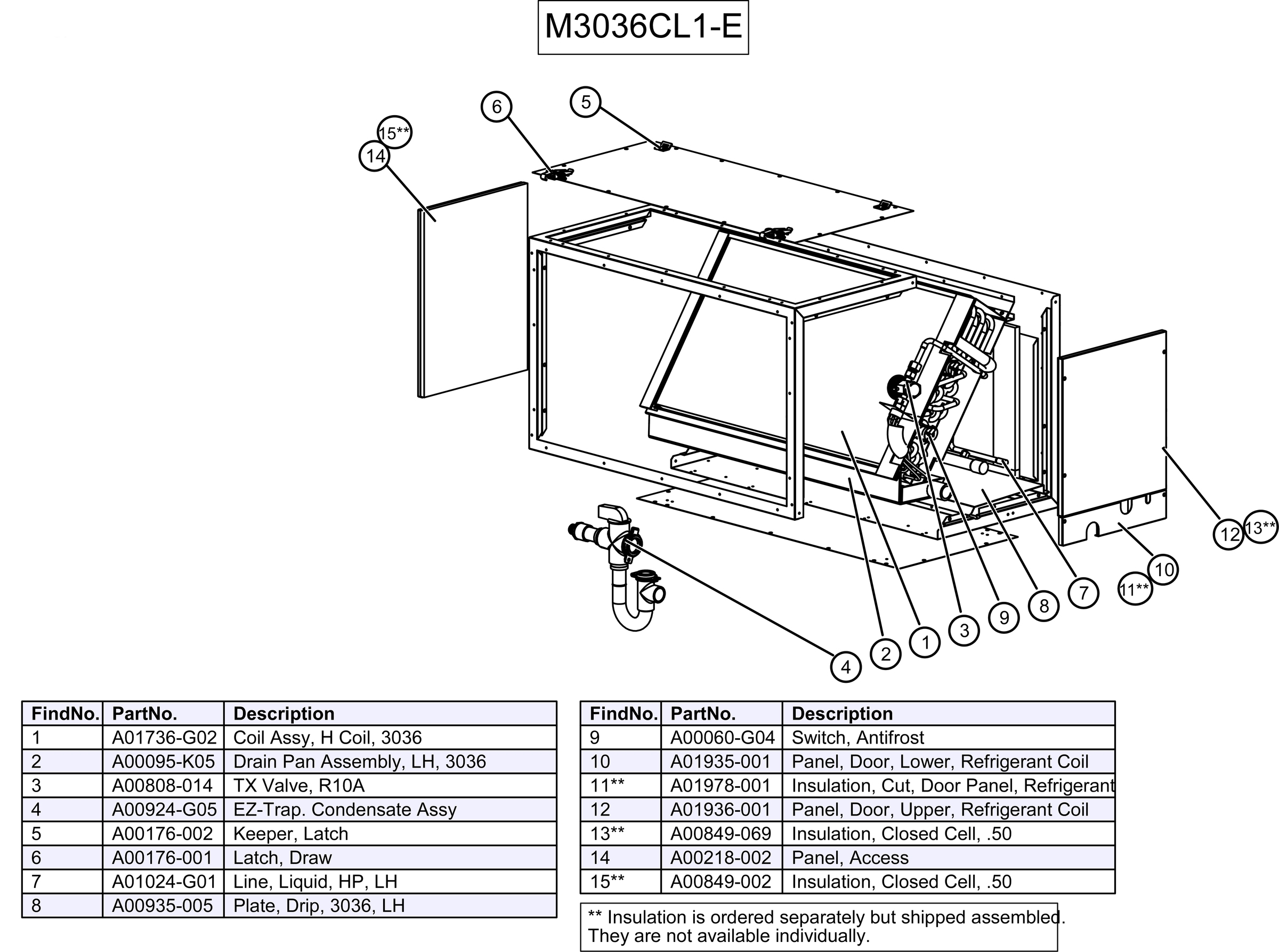

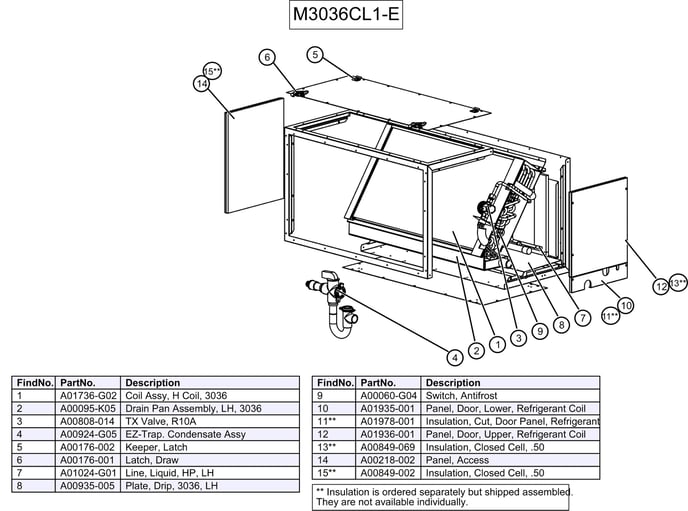

| M3036CL1-E |  |
| [![M3036CL1-E\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3036CL1-E_Rev_A.jpg?width=688&height=512&name=M3036CL1-E_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3036CL1-E_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

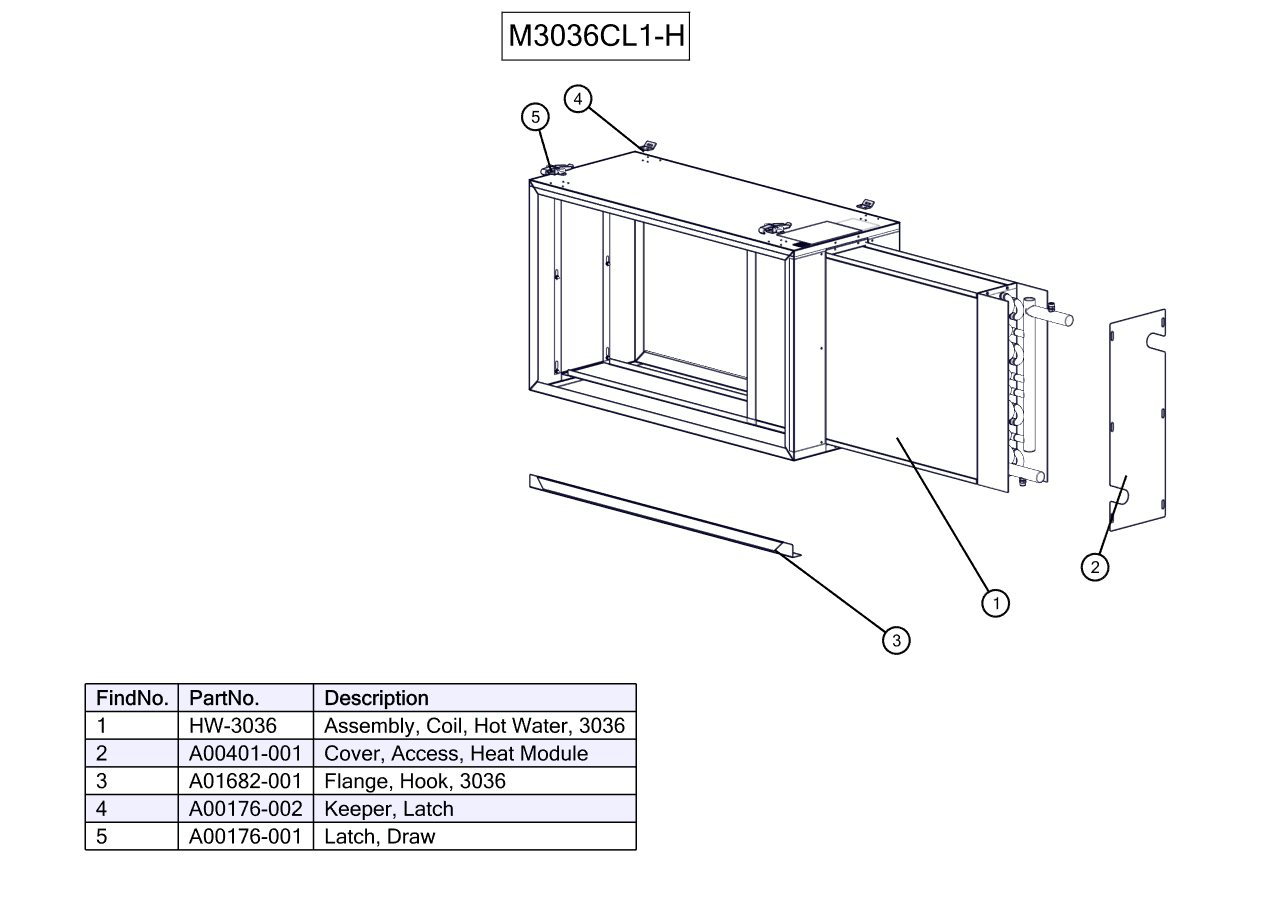

| M3036CL1-H |  |
| [![M3036CL1-H\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3036CL1-H_Rev_A.jpg?width=688&height=486&name=M3036CL1-H_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3036CL1-H_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

[Return to top](https://helpcenter.unicosystem.com/knowledge/coil-ahu#back_to_top)

**3642 (3 - 3.5 Ton)**

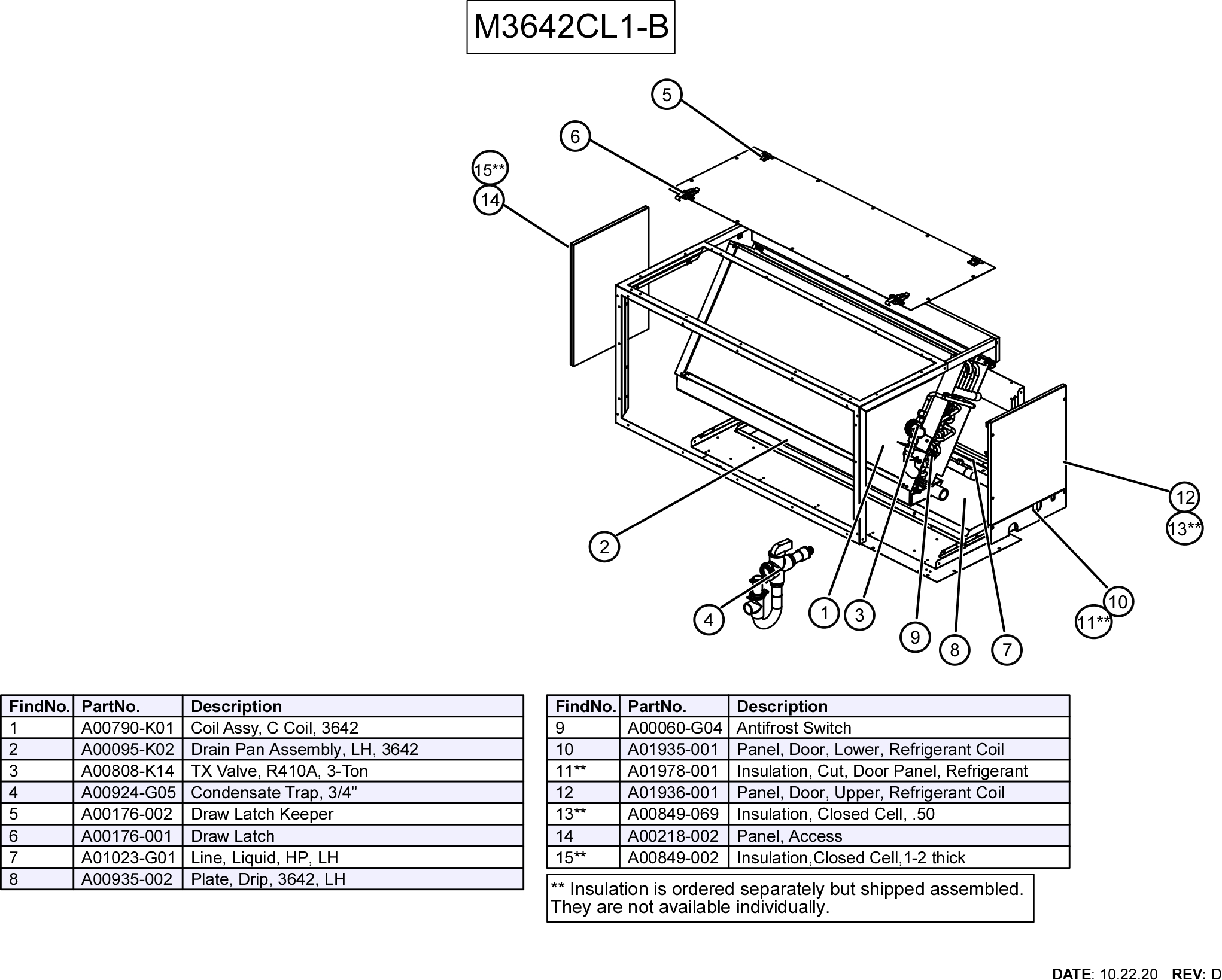

| M3642CL1-B |  |
| --- | --- |
| [![M3642CL1-B\_Rev D](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3642CL1-B_Rev%20D.jpg?width=688&height=552&name=M3642CL1-B_Rev%20D.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3642CL1-B_Rev%20D.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

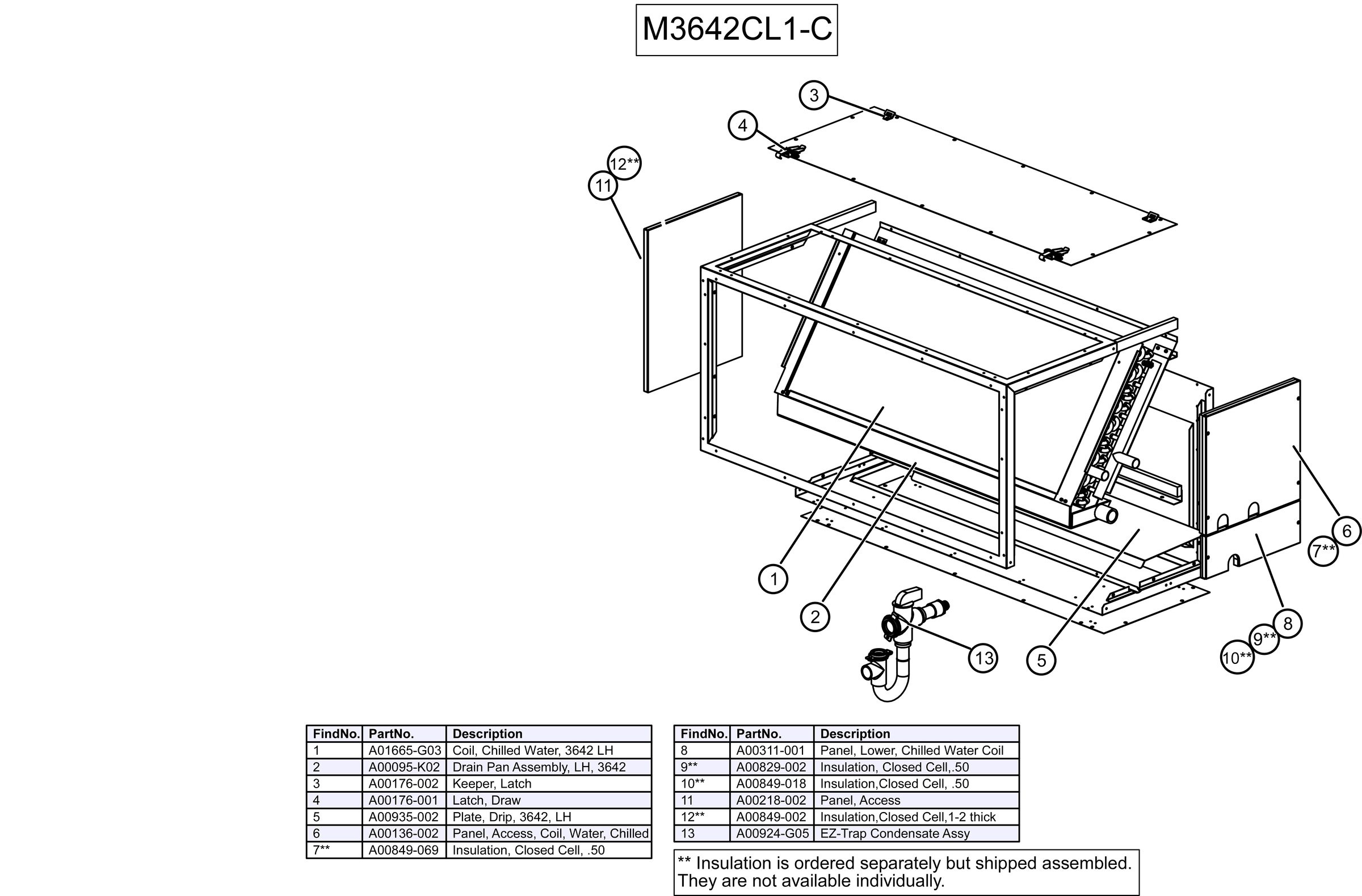

| M3642CL1-C |  |
| [![M3642CL1-C\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3642CL1-C_Rev_A.jpg?width=688&height=453&name=M3642CL1-C_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3642CL1-C_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

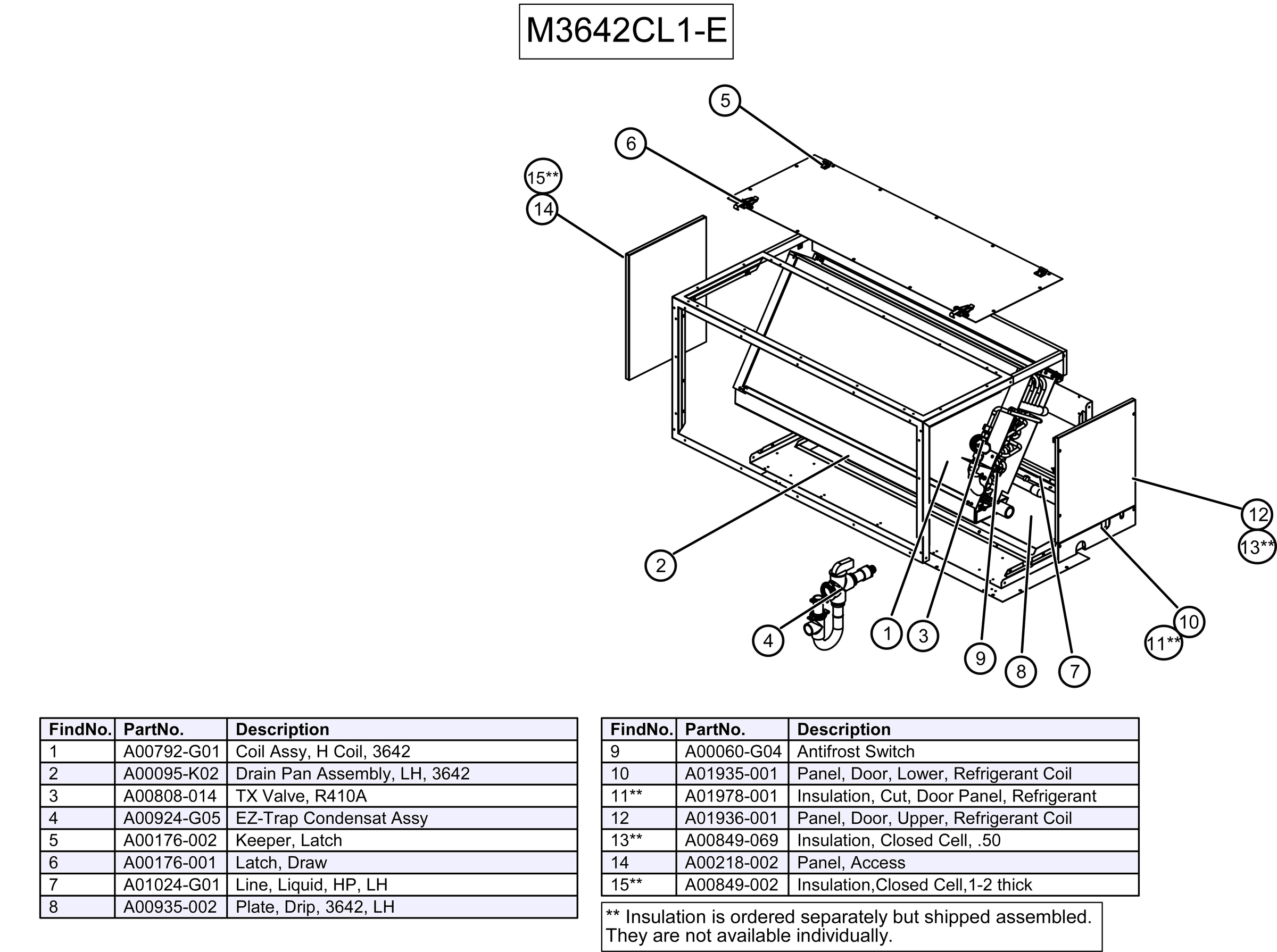

| M3642CL1-E |  |
| [![M3642CL1-E\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3642CL1-E_Rev_A.jpg?width=688&height=513&name=M3642CL1-E_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3642CL1-E_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

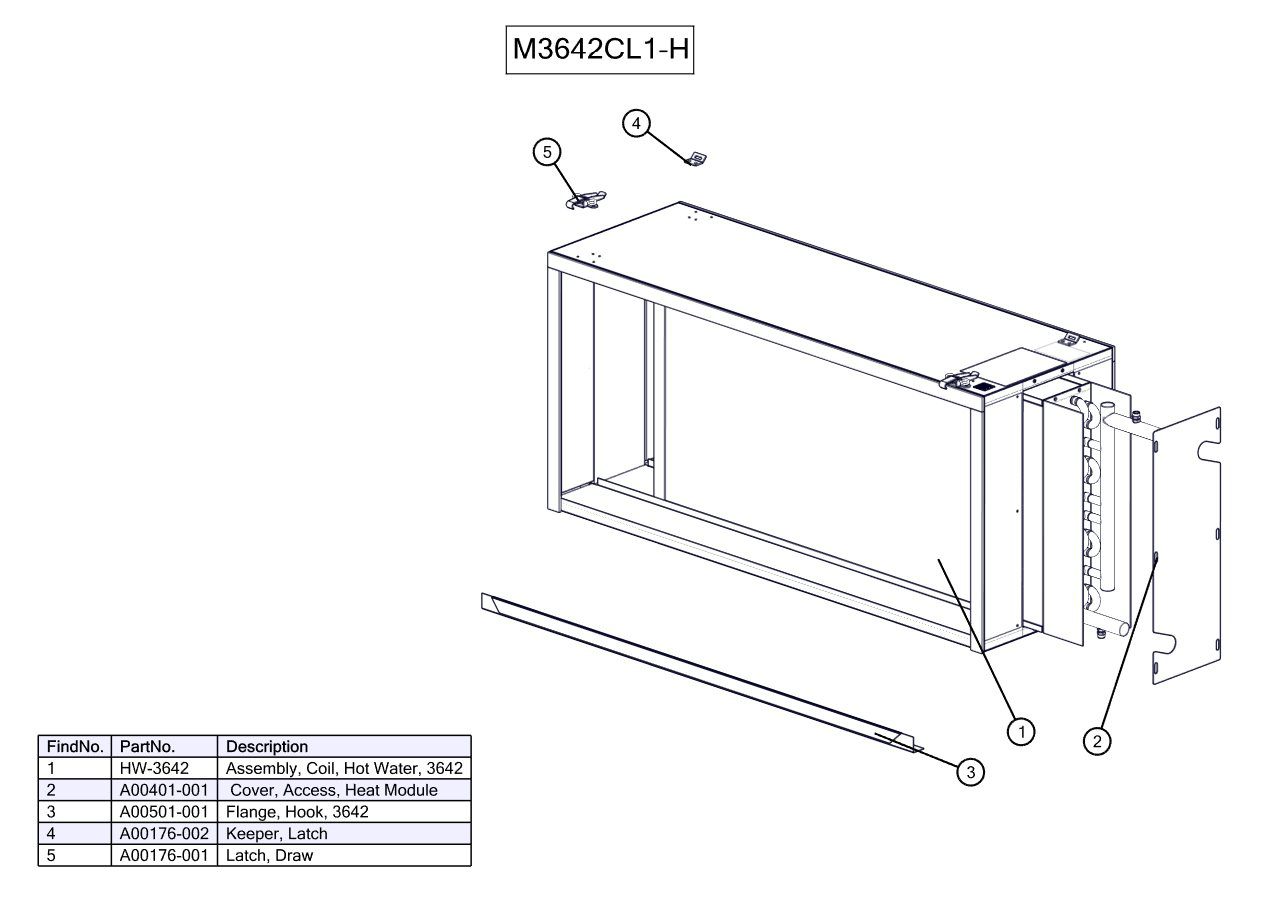

| M3642CL1-H |  |
| [![M3642CL1-H\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3642CL1-H_Rev_A.jpg?width=688&height=486&name=M3642CL1-H_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M3642CL1-H_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

[Return to top](https://helpcenter.unicosystem.com/knowledge/coil-ahu#back_to_top)

**4860 (4 - 5 Ton)**

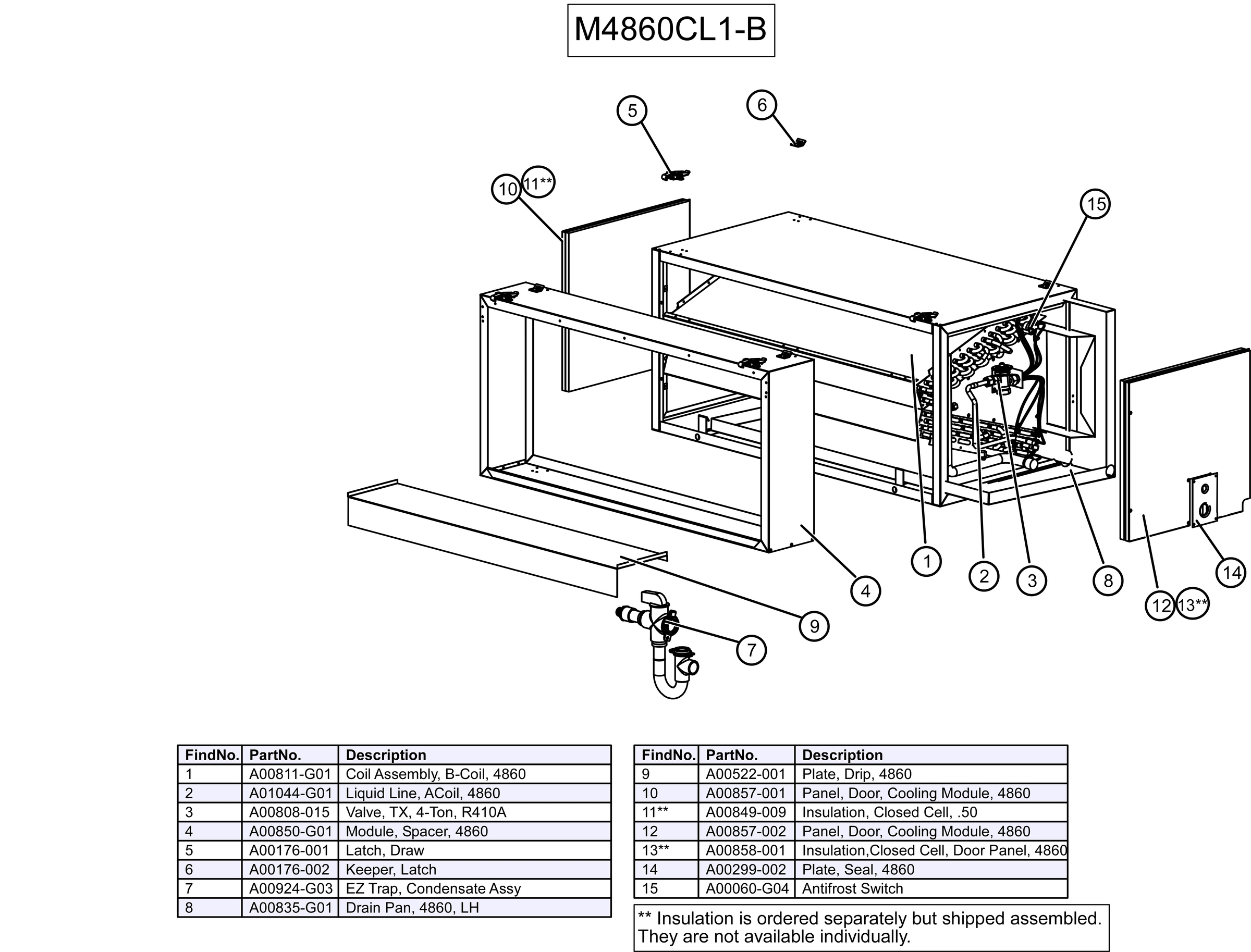

| M4860CL1-B |  |
| --- | --- |
| [![M4860CL1-B\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M4860CL1-B_Rev_A.jpg?width=688&height=524&name=M4860CL1-B_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M4860CL1-B_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

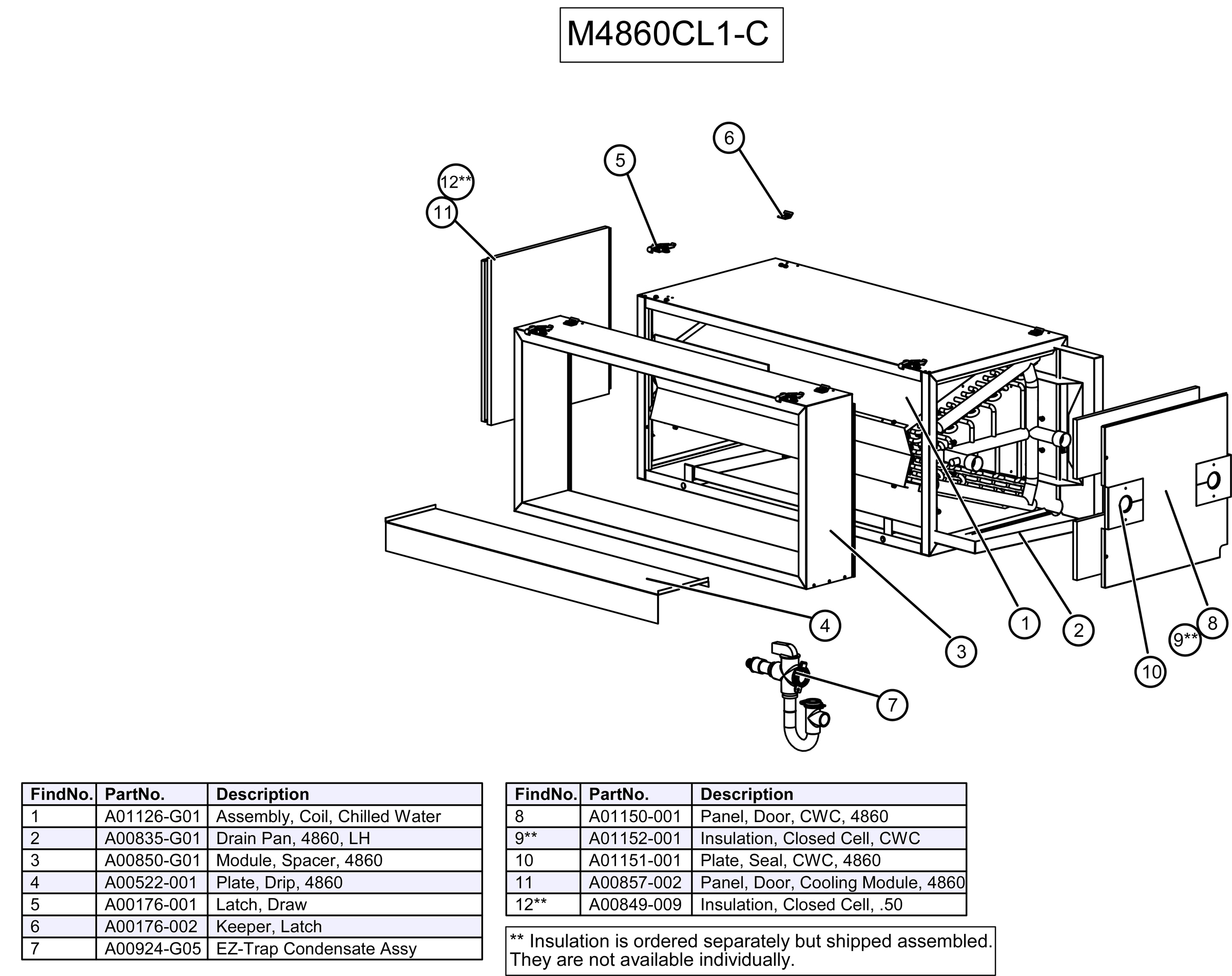

| M4860CL1-C |  |
| [![M4860CL1-C\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M4860CL1-C_Rev_A.jpg?width=688&height=545&name=M4860CL1-C_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M4860CL1-C_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
| M4860CL1-E |  |
| [![M4860CL1-E\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M4860CL1-E_Rev_A.jpg?width=688&height=524&name=M4860CL1-E_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M4860CL1-E_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

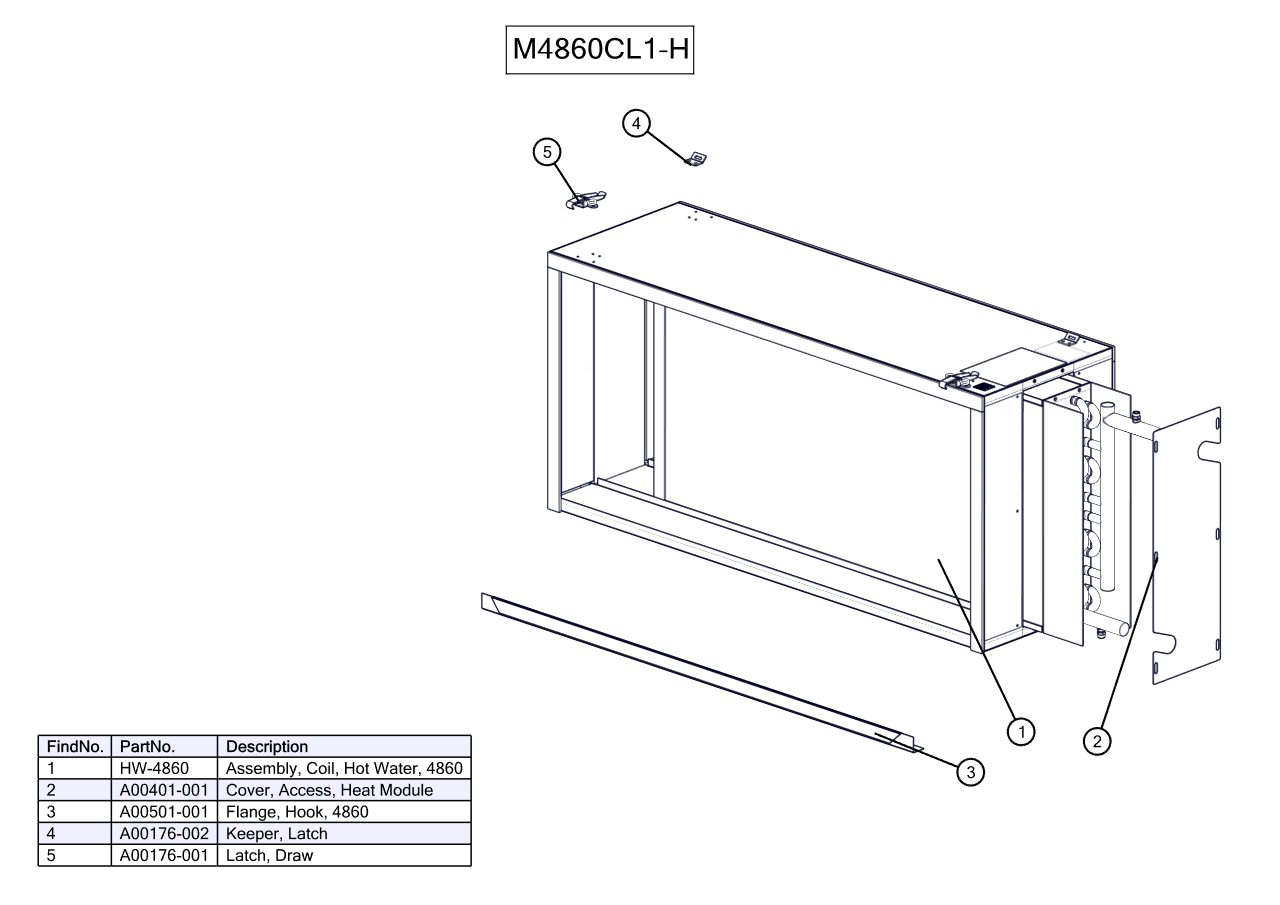

| M4860CL1-H |  |
| [![M4860CL1-H\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M4860CL1-H_Rev_A.jpg?width=688&height=486&name=M4860CL1-H_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Coil%20AHU/M4860CL1-H_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
