# Blower Modules

## Access specifications, drawings, and more for blower modules from 1 to 5 tons. Download and view all necessary information for efficient operation.

[1218 (1 - 1.5 Ton)](https://helpcenter.unicosystem.com/knowledge/blower-ahu#m1218)

[2430 (2 - 2.5 Ton)](https://helpcenter.unicosystem.com/knowledge/blower-ahu#m2430)

[3036 (2.5 - 3 Ton)](https://helpcenter.unicosystem.com/knowledge/blower-ahu#m3036)

[3642 (3 - 3.5 Ton)](https://helpcenter.unicosystem.com/knowledge/blower-ahu#m3642)

[4860 (4 - 5 Ton)](https://helpcenter.unicosystem.com/knowledge/blower-ahu#m4860)



**1218 (1 - 1.5 Ton)**

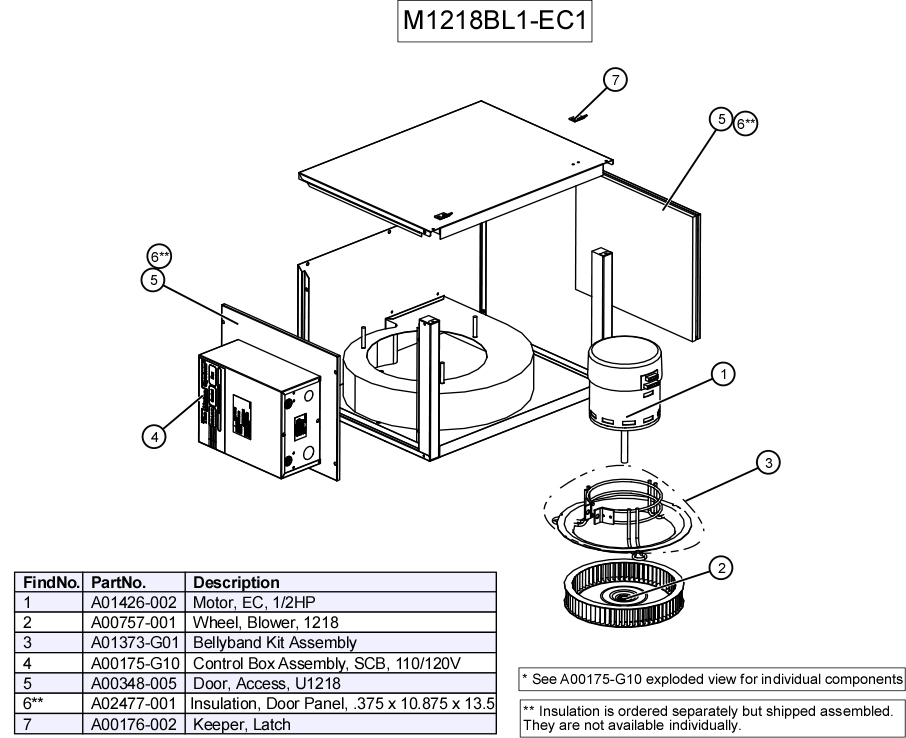

| M1218BL1-EC1 |  |
| --- | --- |
| [![M1218BL1-EC1](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M1218BL1-EC1.jpg?width=688&height=560&name=M1218BL1-EC1.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M1218BL1-EC1.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
| M1218BL1-EC2 |  |
| [![M1218BL1-EC2](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M1218BL1-EC2.jpg?width=688&height=560&name=M1218BL1-EC2.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M1218BL1-EC2.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
| M1218BL1-EC3 |  |
| [![M1218BL1-EC3](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M1218BL1-EC3.jpg?width=688&height=560&name=M1218BL1-EC3.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M1218BL1-EC3.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

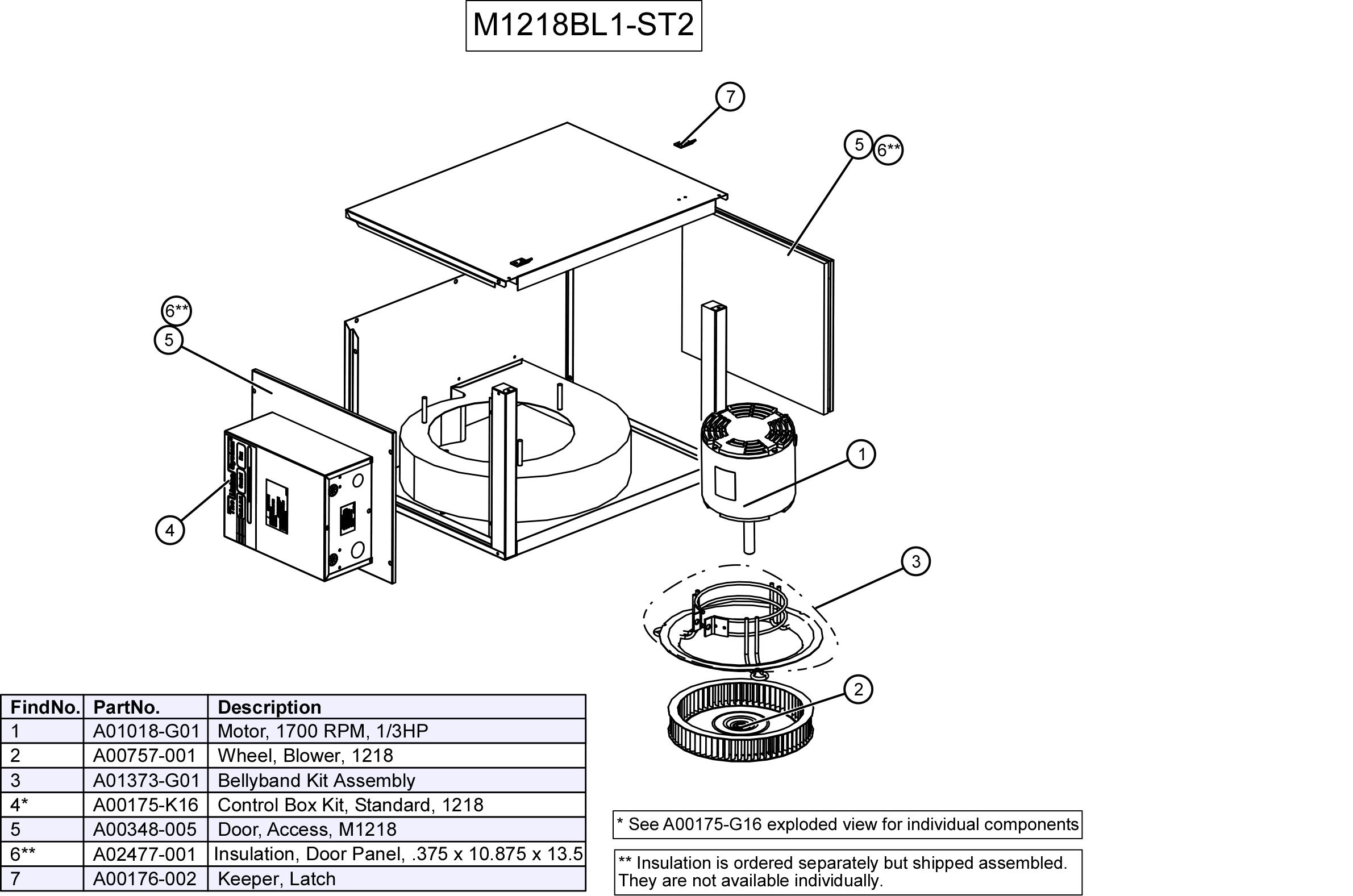

| M1218BL1-ST2 |  |
| [![M1218BL1-ST2\_Rev C](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M1218BL1-ST2_Rev%20C.jpg?width=688&height=456&name=M1218BL1-ST2_Rev%20C.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M1218BL1-ST2_Rev%20C.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

[Back to top](https://helpcenter.unicosystem.com/knowledge/blower-ahu#back_to_top)

**2430 (2 - 2.5 Ton)**

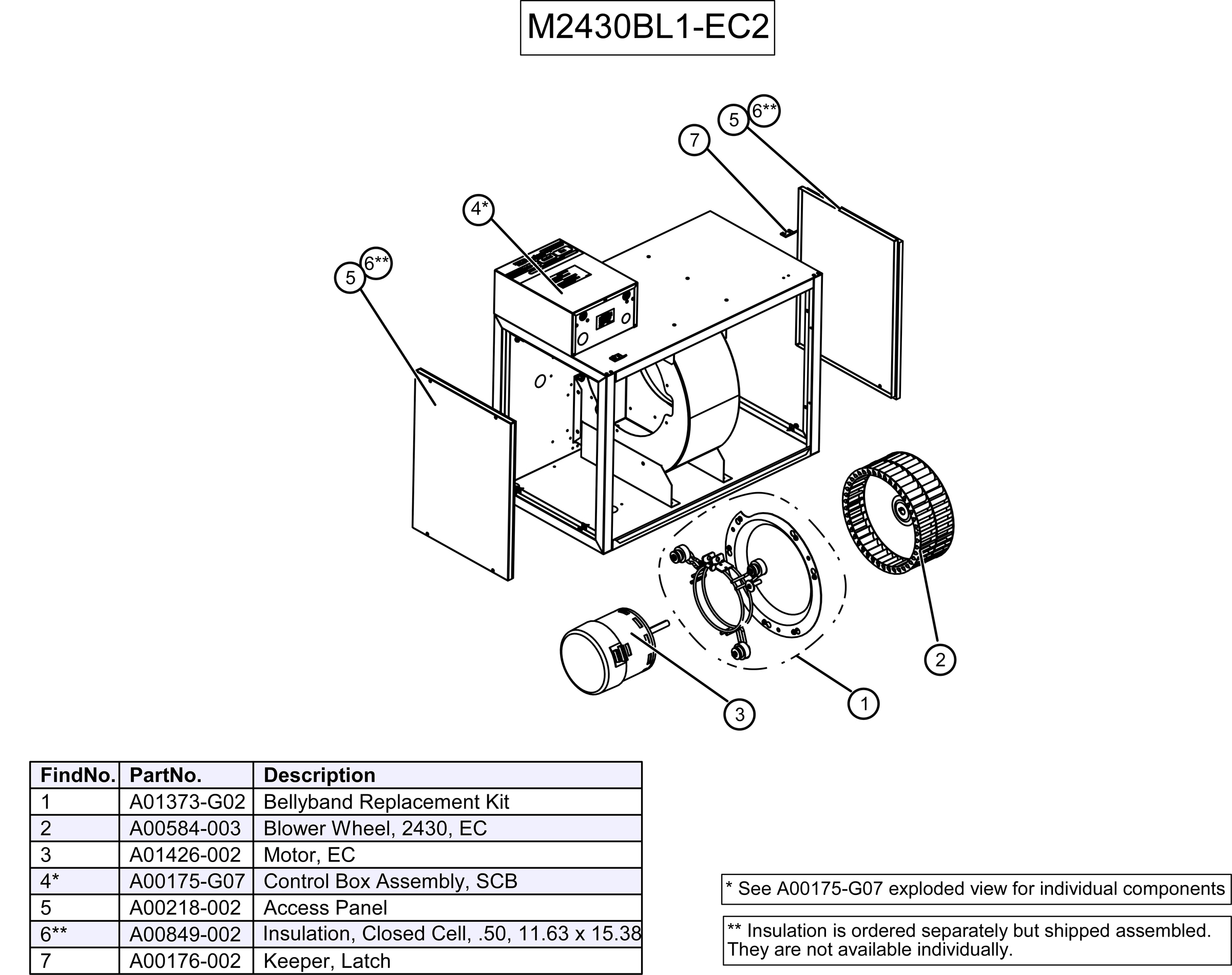

| M2430BL1-EC2 |  |
| --- | --- |
| [![M2430BL1-EC2\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430BL1-EC2_Rev_A.jpg?width=688&height=545&name=M2430BL1-EC2_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430BL1-EC2_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

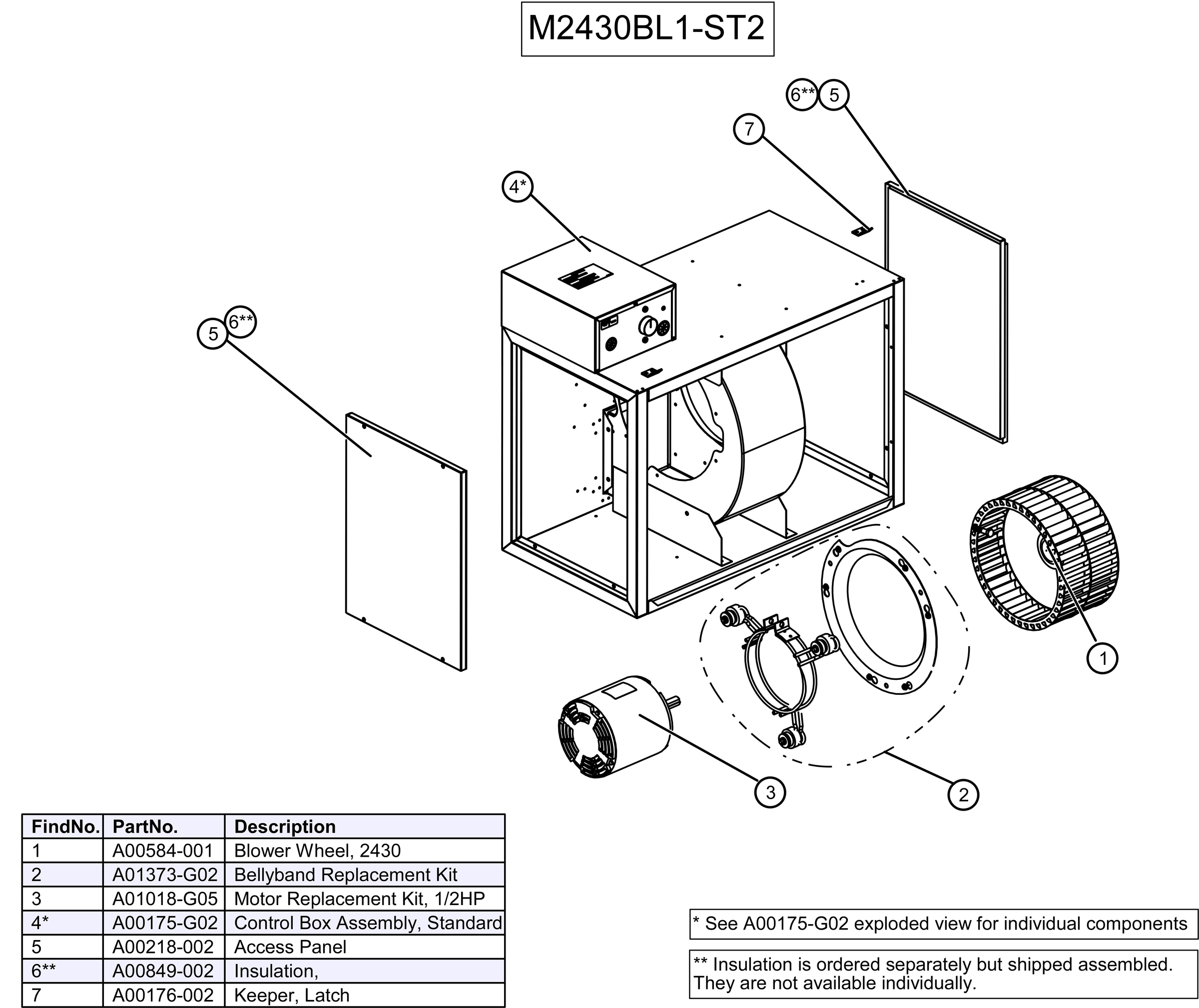

| M2430BL1-ST2 |  |
| [![M2430BL1-ST2\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430BL1-ST2_Rev_A.jpg?width=688&height=578&name=M2430BL1-ST2_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430BL1-ST2_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
| M2430BL2-ST2 |  |
| [![M2430BL2-ST2](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430BL2-ST2.jpg?width=688&height=578&name=M2430BL2-ST2.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430BL2-ST2.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

[Back to top](https://helpcenter.unicosystem.com/knowledge/blower-ahu#back_to_top)

**3036 (2.5 - 3 Ton)**

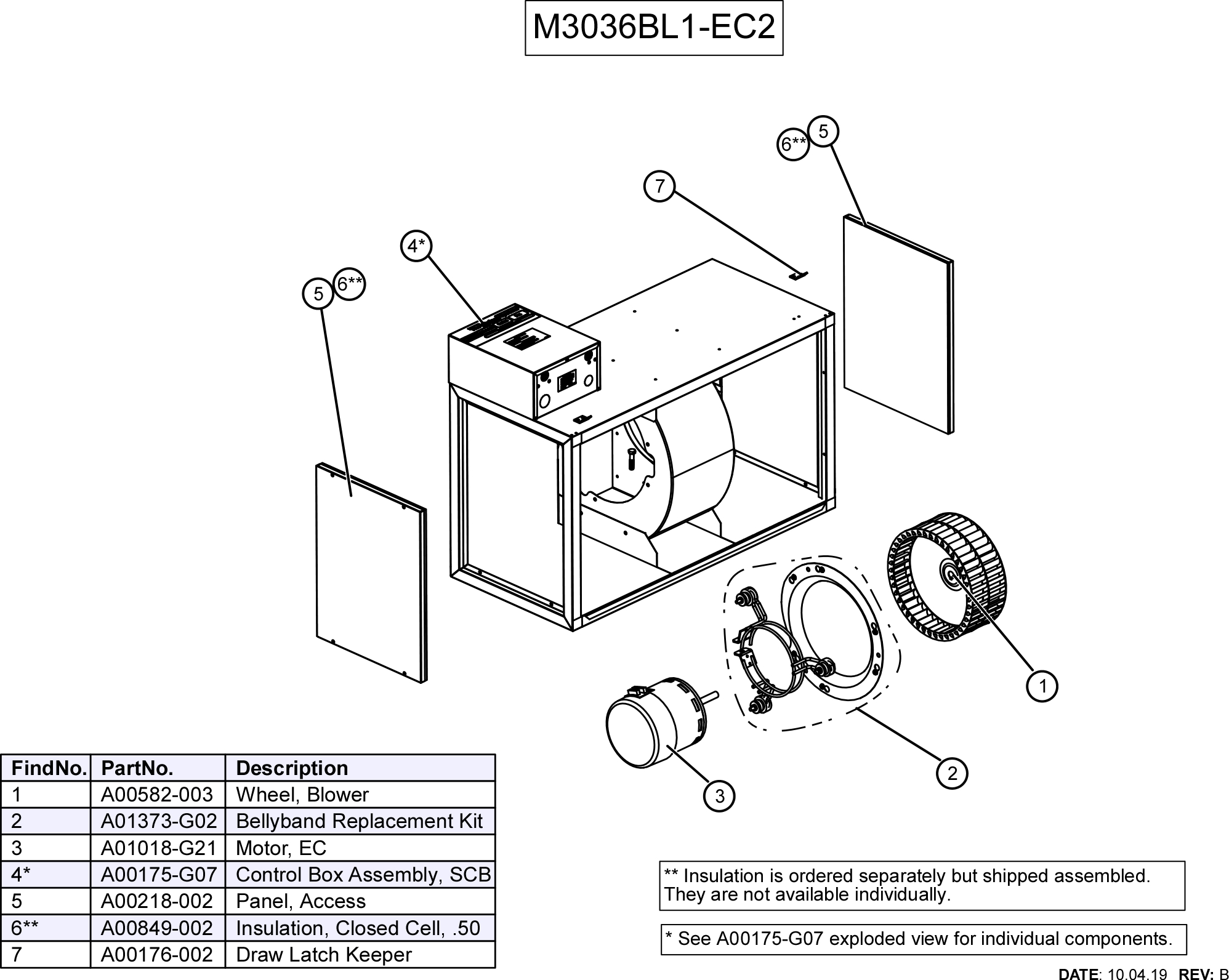

| M3036BL1\_EC2 |  |
| --- | --- |
| [![M3036BL1-EC2\_Rev B](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3036BL1-EC2_Rev%20B.jpg?width=688&height=549&name=M3036BL1-EC2_Rev%20B.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3036BL1-EC2_Rev%20B.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

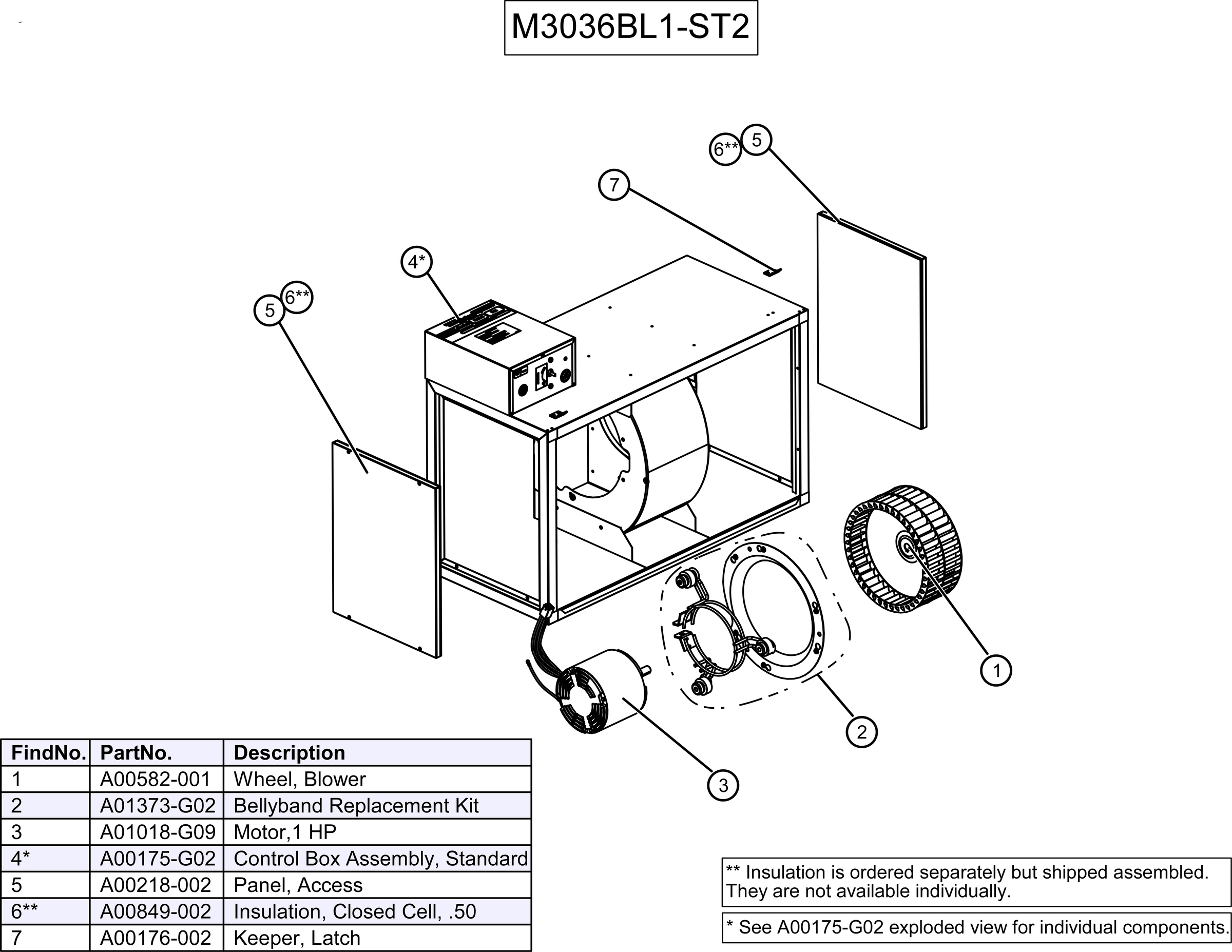

| M3036BL1-ST2 |  |
| [![M3036BL1-ST2\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3036BL1-ST2_Rev_A.jpg?width=688&height=532&name=M3036BL1-ST2_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3036BL1-ST2_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

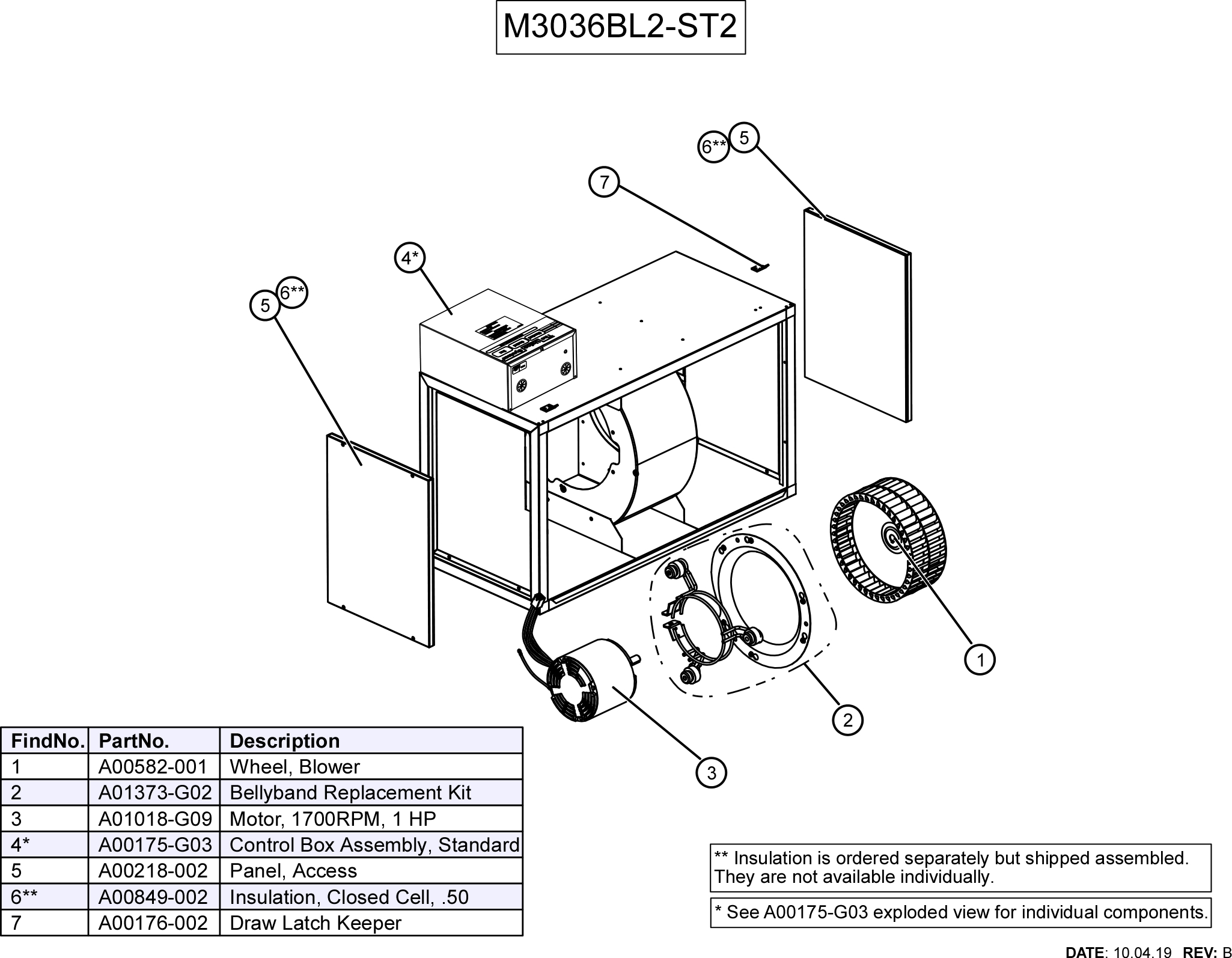

| M3036BL2-ST2 |  |
| [![M3036BL2-ST2\_Rev B](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3036BL2-ST2_Rev%20B.jpg?width=688&height=535&name=M3036BL2-ST2_Rev%20B.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3036BL2-ST2_Rev%20B.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

[Back to top](https://helpcenter.unicosystem.com/knowledge/blower-ahu#back_to_top)

**3642 (3 - 3.5 Ton)**

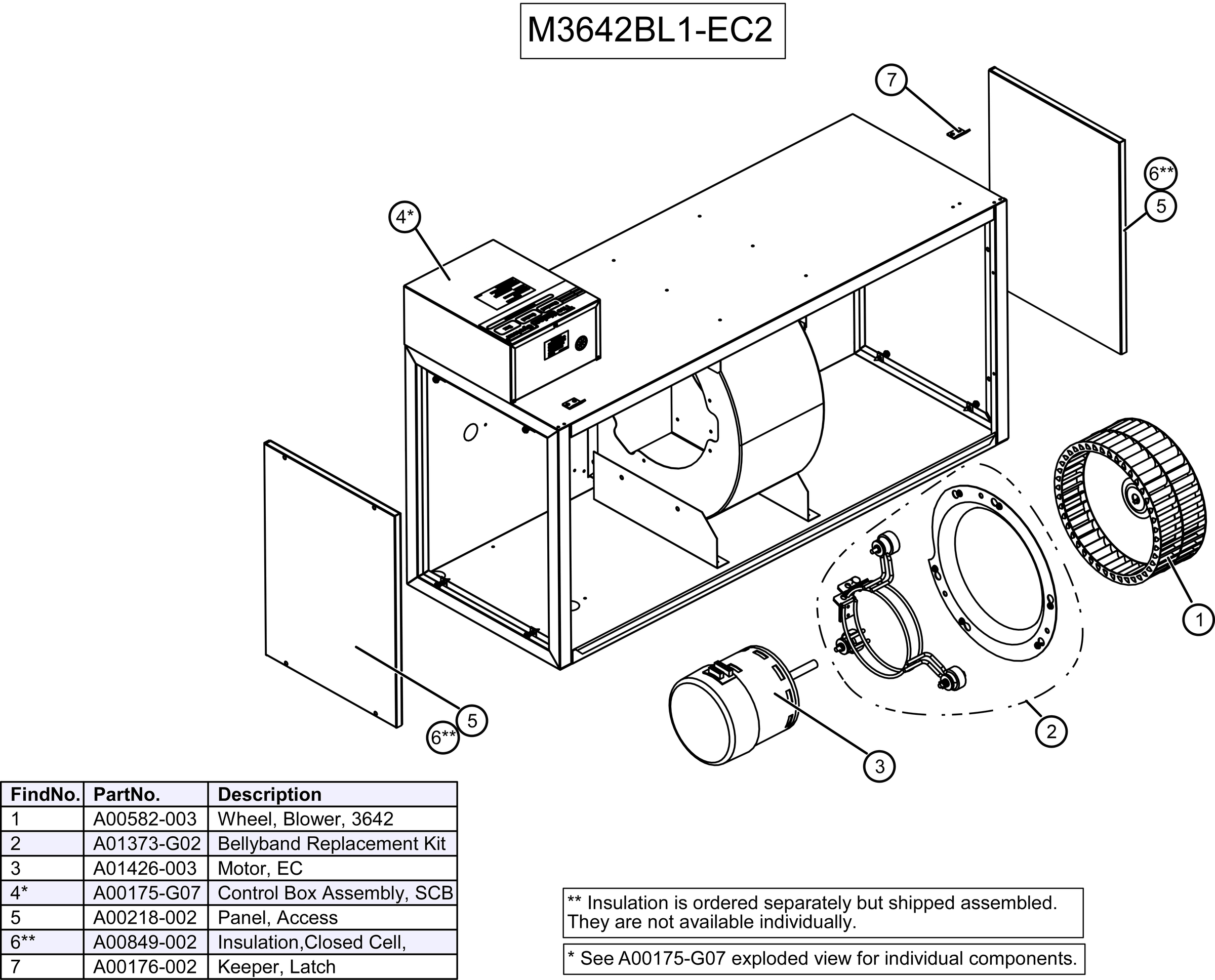

| M3642BL1-EC2 |  |
| --- | --- |
| [![M3642BL1-EC2\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3642BL1-EC2_Rev_A.jpg?width=688&height=555&name=M3642BL1-EC2_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3642BL1-EC2_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
| M3642BL1-ST2 |  |
| ![M3642BL1-ST2\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3642BL1-ST2_Rev_A.jpg?width=688&height=448&name=M3642BL1-ST2_Rev_A.jpg) | Dimensional Data DXF CAD Technical Specs Submittals |
| M3642BL2-ST2 |  |
| ![M3642BL2-ST2\_Rev D](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3642BL2-ST2_Rev%20D.jpg?width=688&height=438&name=M3642BL2-ST2_Rev%20D.jpg) | Dimensional Data DXF CAD Technical Specs Submittals |

[Back to top](https://helpcenter.unicosystem.com/knowledge/blower-ahu#back_to_top)

**4860 (4 - 5 Ton)**

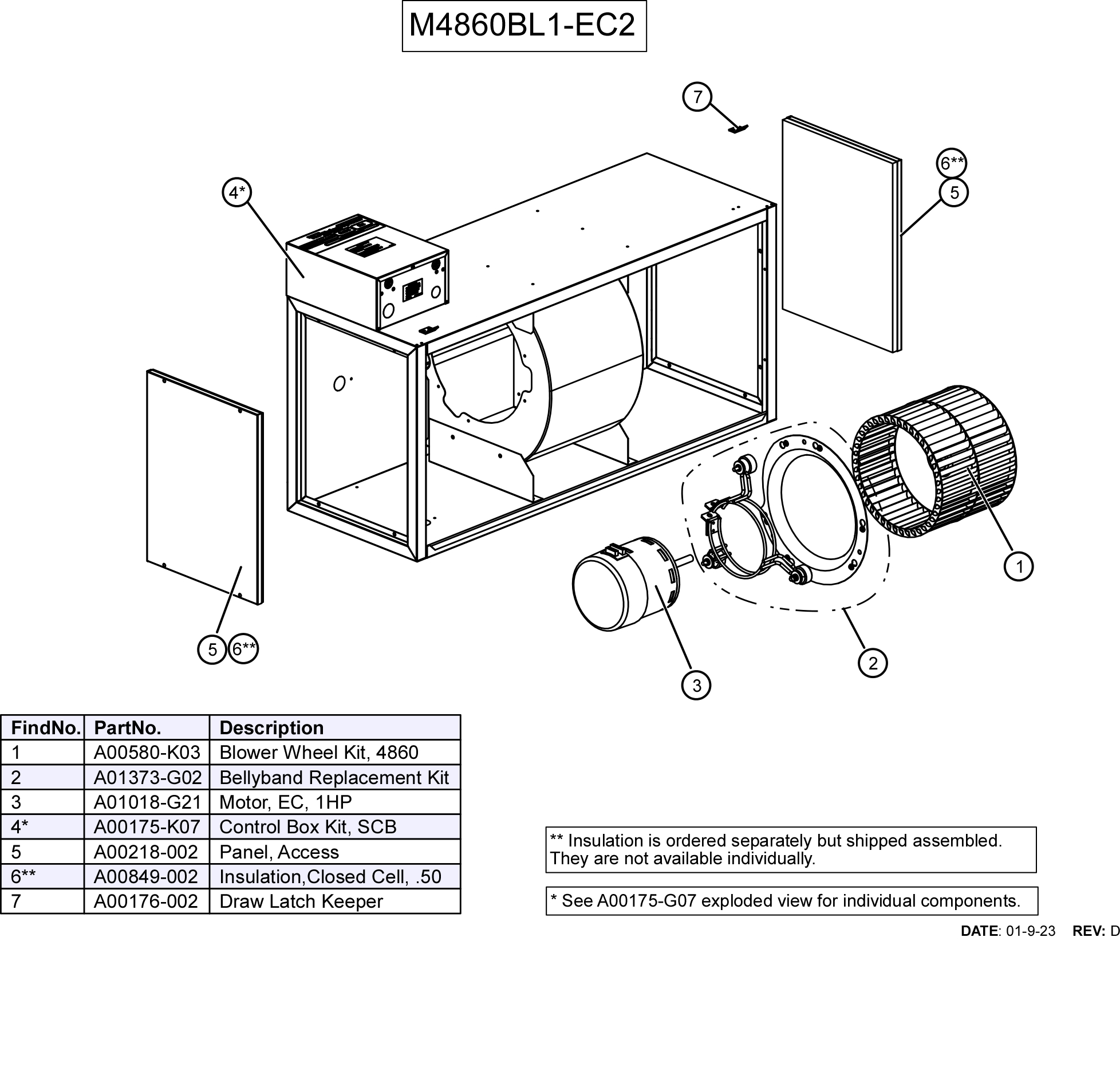

| M4860BL1-EC2 |  |
| --- | --- |
| [![M4860BL1-EC2\_Rev D](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M4860BL1-EC2_Rev%20D.jpg?width=688&height=660&name=M4860BL1-EC2_Rev%20D.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M4860BL1-EC2_Rev%20D.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

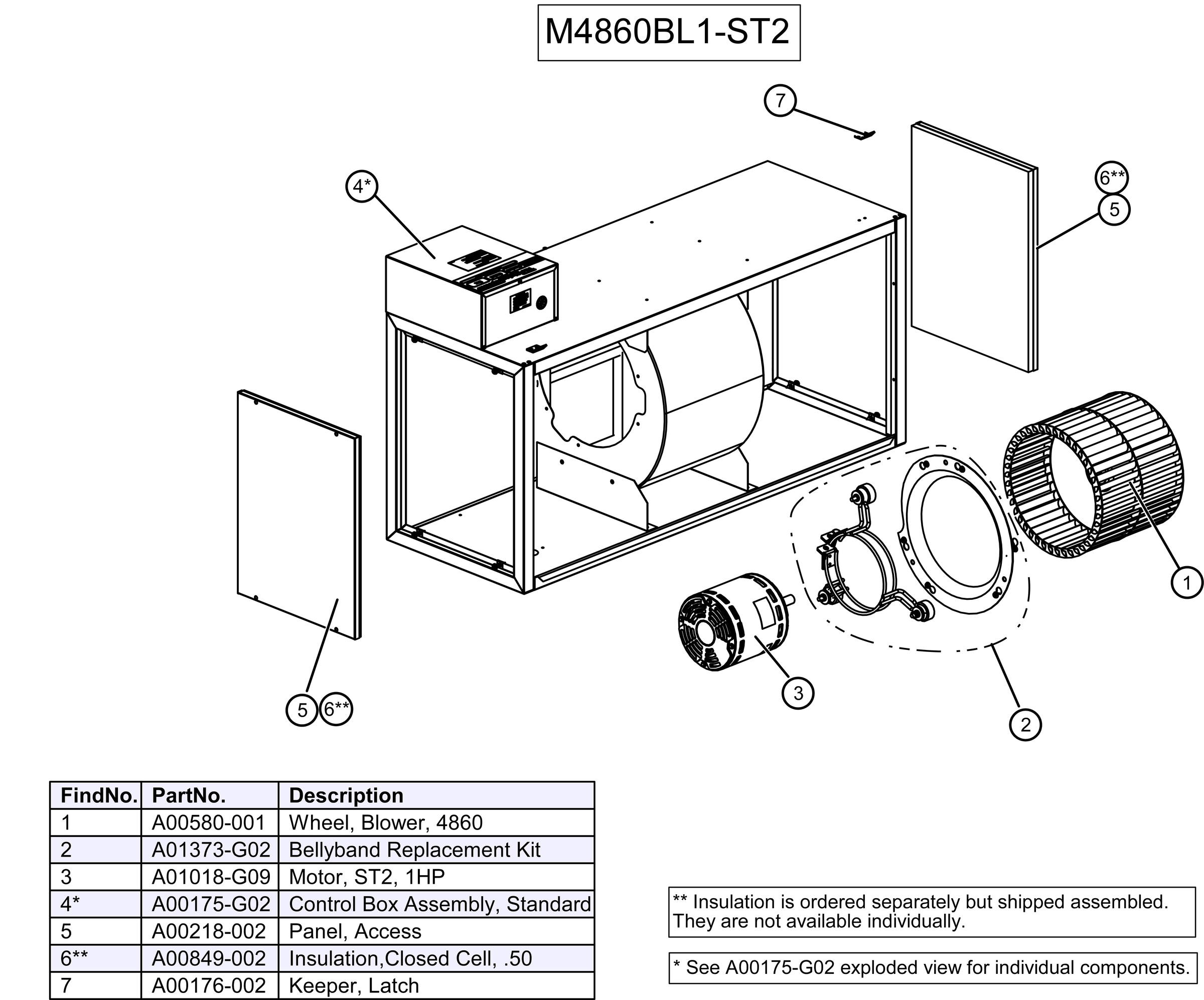

| M4860BL1-ST2 |  |
| [![M4860BL1-ST2\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M4860BL1-ST2_Rev_A.jpg?width=688&height=572&name=M4860BL1-ST2_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M4860BL1-ST2_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |
| M4860BL2-ST2 |  |
| [![M4860BL2-ST2\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M4860BL2-ST2_Rev_A.jpg?width=688&height=572&name=M4860BL2-ST2_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M4860BL2-ST2_Rev_A.jpg?hsLang=en) | Dimensional Data DXF CAD Technical Specs Submittals |

[Back to top](https://helpcenter.unicosystem.com/knowledge/blower-ahu#back_to_top)
