# Accessories

## Access specs, drawings, and resources for accessory parts. Download and view info for efficient operation.

[Control Boxes](https://helpcenter.unicosystem.com/knowledge/accessories#Control_Boxes)

[Return Filter Grilles](https://helpcenter.unicosystem.com/knowledge/accessories#Return_Filter_Grilles)

[Return Air Modules](https://helpcenter.unicosystem.com/knowledge/accessories#Return_Air_Modules)

[Vertical Plenum Modules](https://helpcenter.unicosystem.com/knowledge/accessories#Vertical_Plenum_Modules)



**Control Boxes**

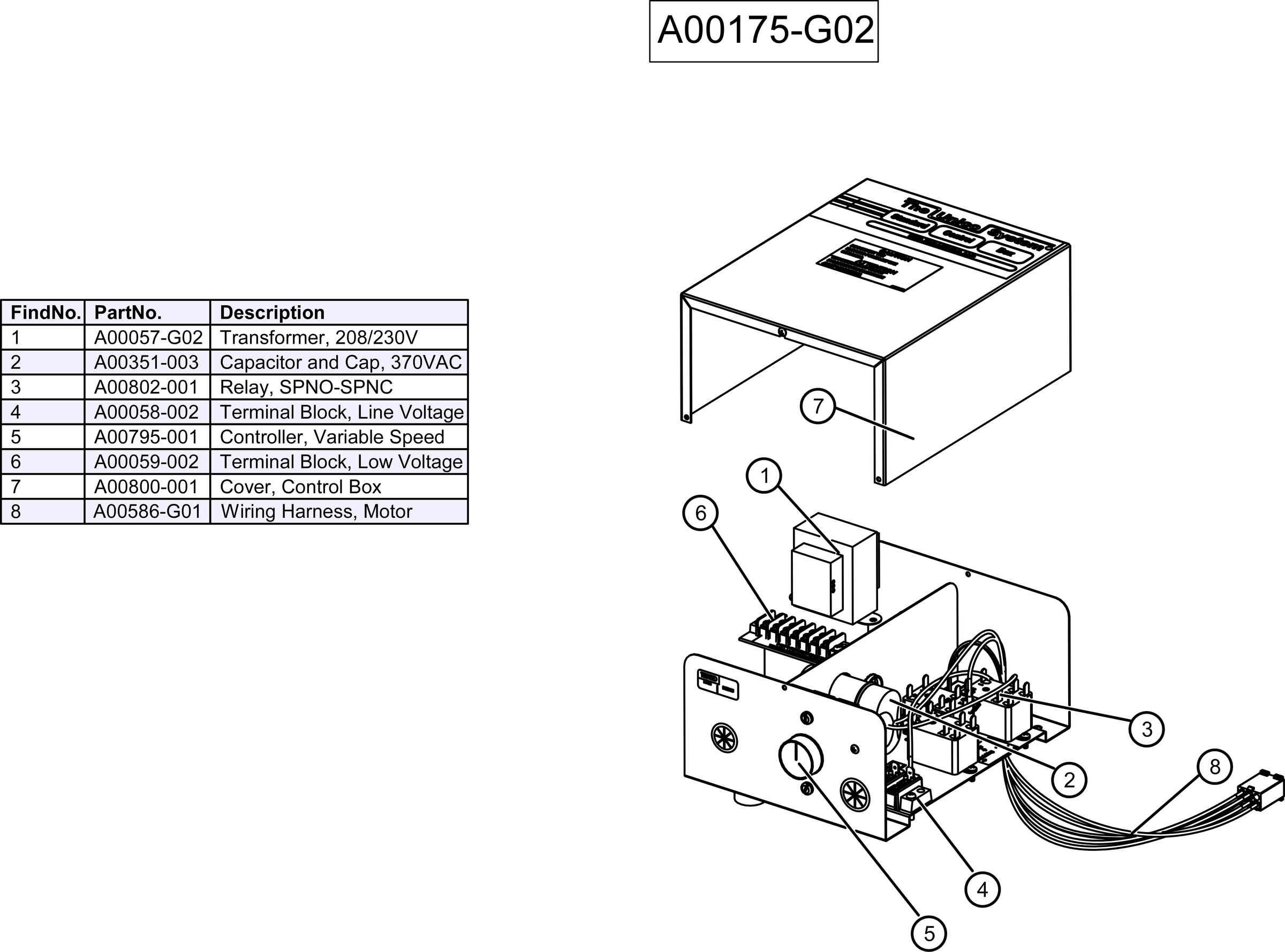

| A00175-G02 |  |
| --- | --- |
| [![A00175-G02\_Rev\_B](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/A00175-G02_Rev_B.jpg?width=688&height=510&name=A00175-G02_Rev_B.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Accessories/A00175-G02_Rev_B.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/A00175-G02_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/A00175-G02_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/SCB_Control_Box.zip?hsLang=en) |

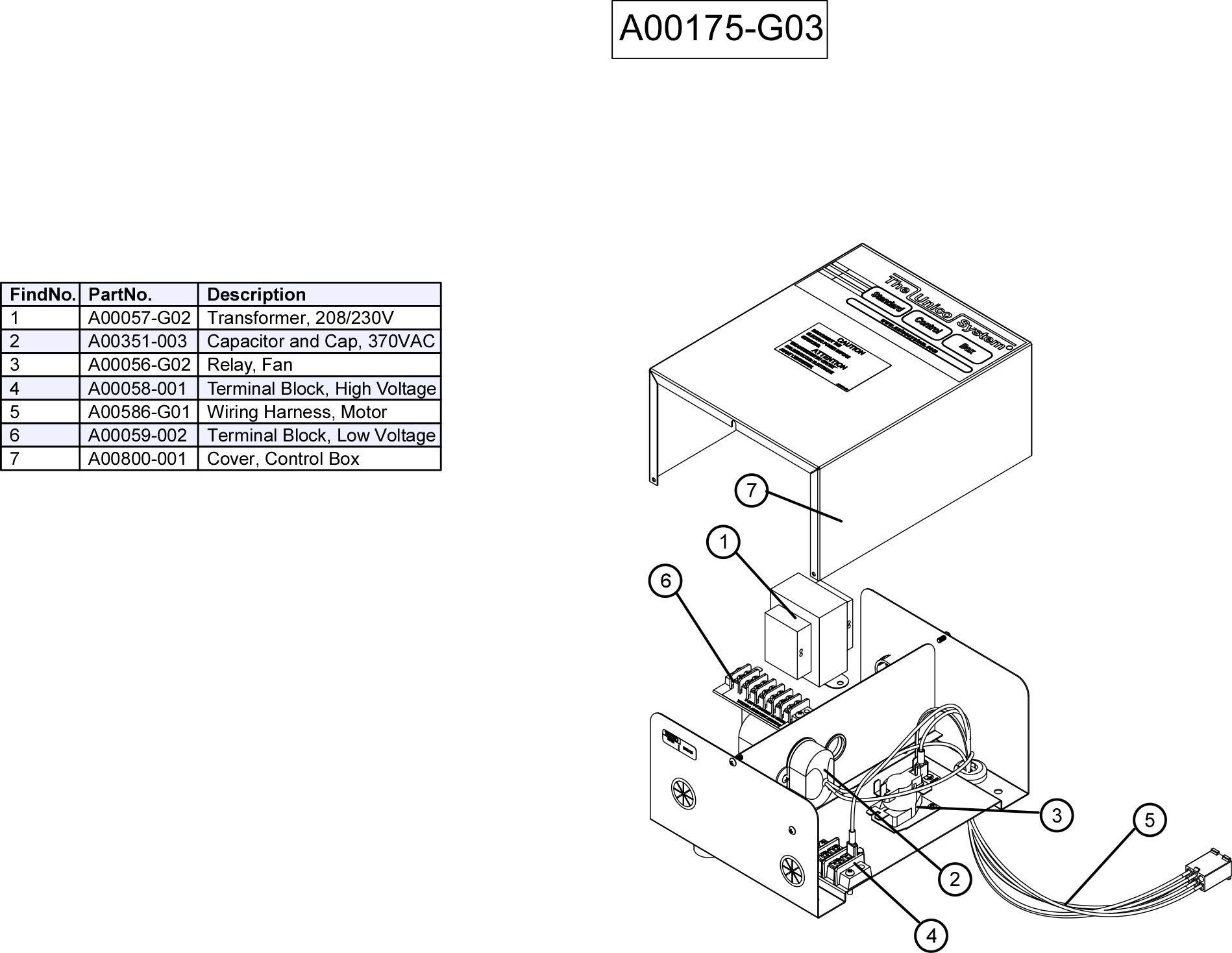

| A00175-G03 |  |
| [![A00175-G03](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/A00175-G03.jpg?width=688&height=532&name=A00175-G03.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Accessories/A00175-G03.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/A00175-G03_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/A00175-G03_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/SCB_Control_Box.zip?hsLang=en) |

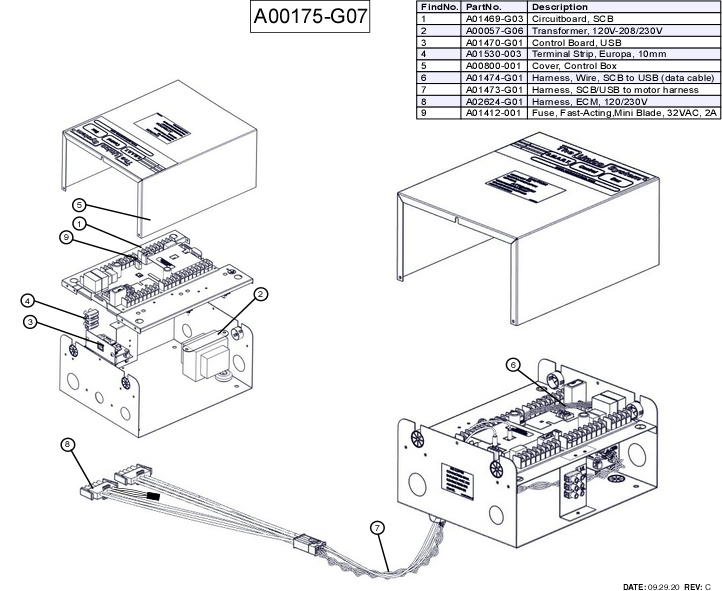

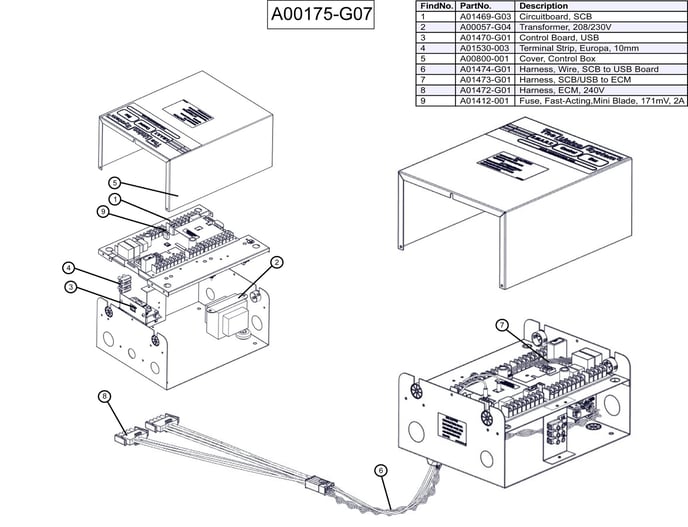

| A00175-G07 |  |
| [![A00175-G07](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/A00175-G07.jpg?width=688&height=528&name=A00175-G07.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Accessories/A00175-G07%20(Rev%20C).jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/A00175-G07_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/A00175-G07_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/SCB_Control_Box.zip?hsLang=en) |
| A00175-G10 |  |
| ![A00175-G10](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/A00175-G10.jpg?width=688&height=542&name=A00175-G10.jpg) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/A00175-G10_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/A00175-G10_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/SCB_Control_Box.zip?hsLang=en) |

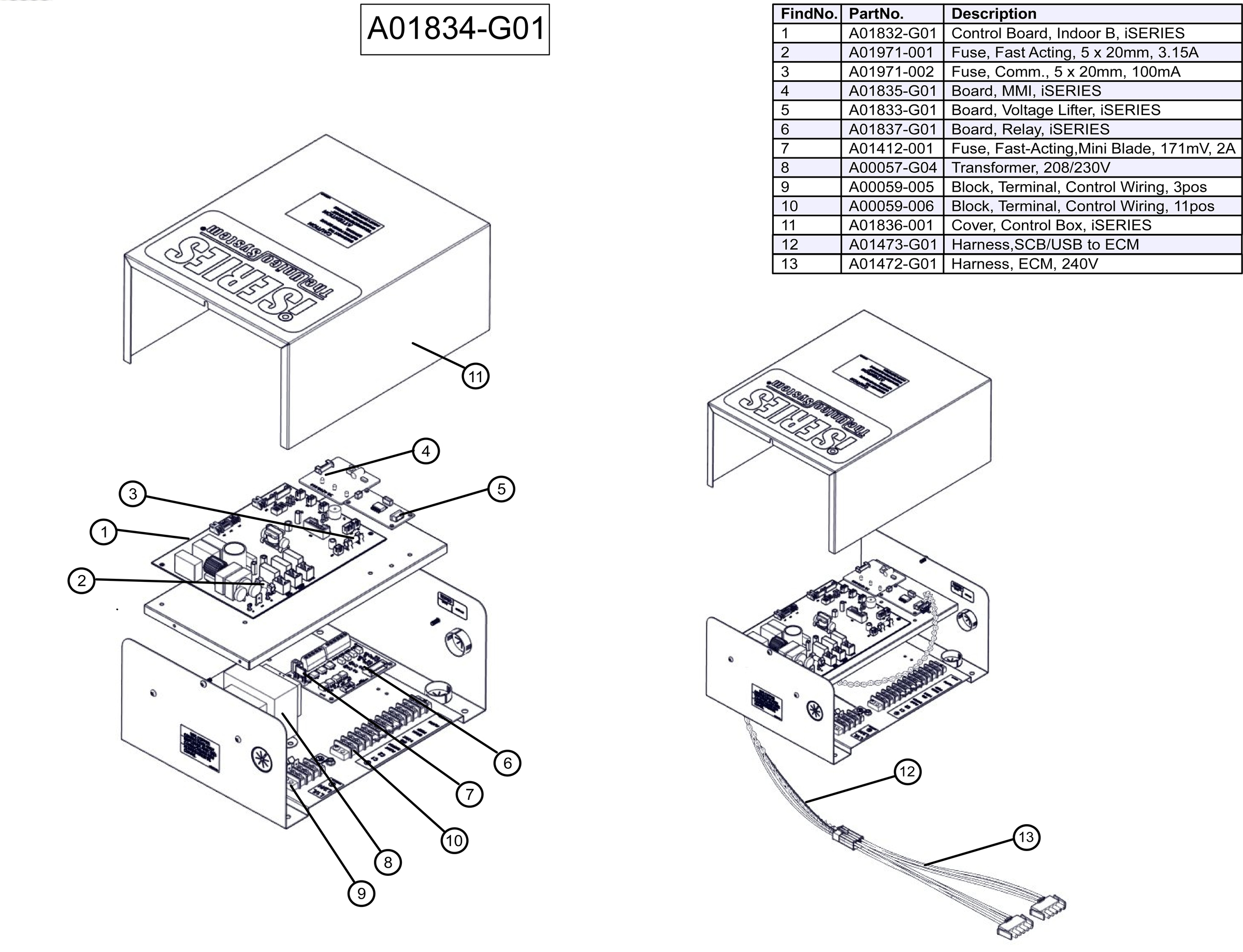

| A01834-G01 |  |
| [![A01834-G01](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/A01834-G01.jpg?width=688&height=527&name=A01834-G01.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Accessories/A01834-G01.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/A01834-G01_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/A01834-G01_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/iSERIES_Control_Box.zip?hsLang=en) |
| A01834-G04 |  |
| ![A01834-G04](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/A01834-G04.jpg?width=688&height=518&name=A01834-G04.jpg) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/A01834-G04_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/A01834-G04_Dimensional_Data_2.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/iSERIES_Control_Box.zip?hsLang=en) |

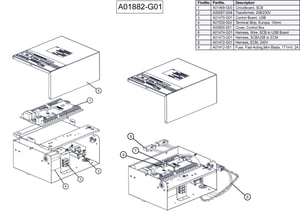

| A01882-G01 |  |
| ![A01882-G01](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/A01882-G01.jpg?width=300&height=223&name=A01882-G01.jpg) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/A01882-G01_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/A01882-G01_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/iSERIES_Control_Box.zip?hsLang=en) |

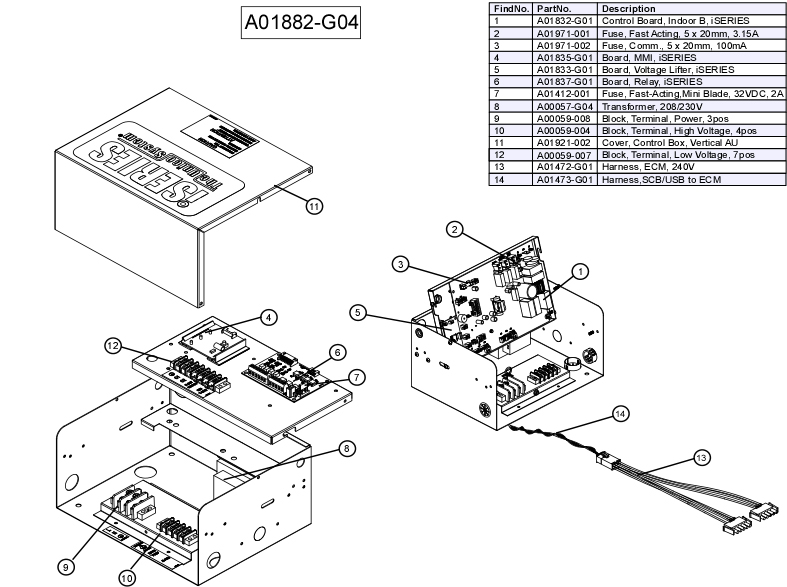

| A01882-G04 |  |
| [![A01882-G04](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/A01882-G04.jpg?width=688&height=513&name=A01882-G04.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Accessories/A01882-G04.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/A01882-G04_Dimensional_Data.pdf?hsLang=en) DXF CAD [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/iSERIES_Control_Box.zip?hsLang=en) |

[Back to top](https://helpcenter.unicosystem.com/knowledge/accessories#Top_of_page)

**Return Filter Grilles**

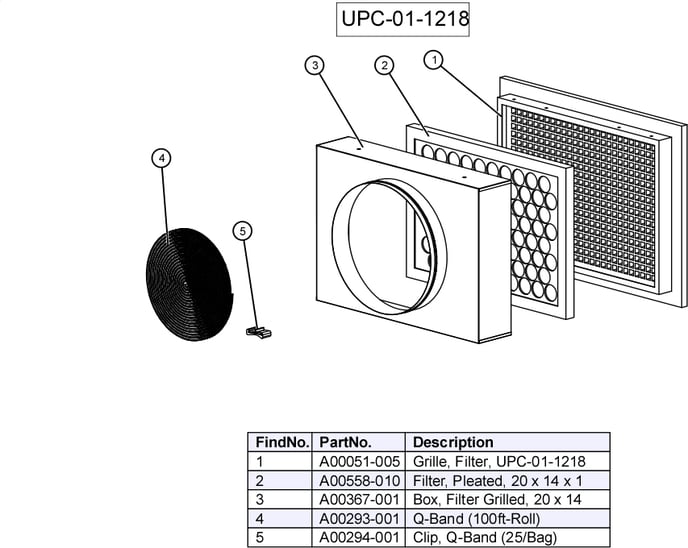

| UPC-01-1218 |  |
| --- | --- |
| ![UPC-01-1218 (Rev B)](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/UPC-01-1218%20(Rev%20B).jpg?width=688&height=548&name=UPC-01-1218%20(Rev%20B).jpg) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/UPC-01-1218_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/UPC-01-1218_Dimensional_Data.zip?hsLang=en) |

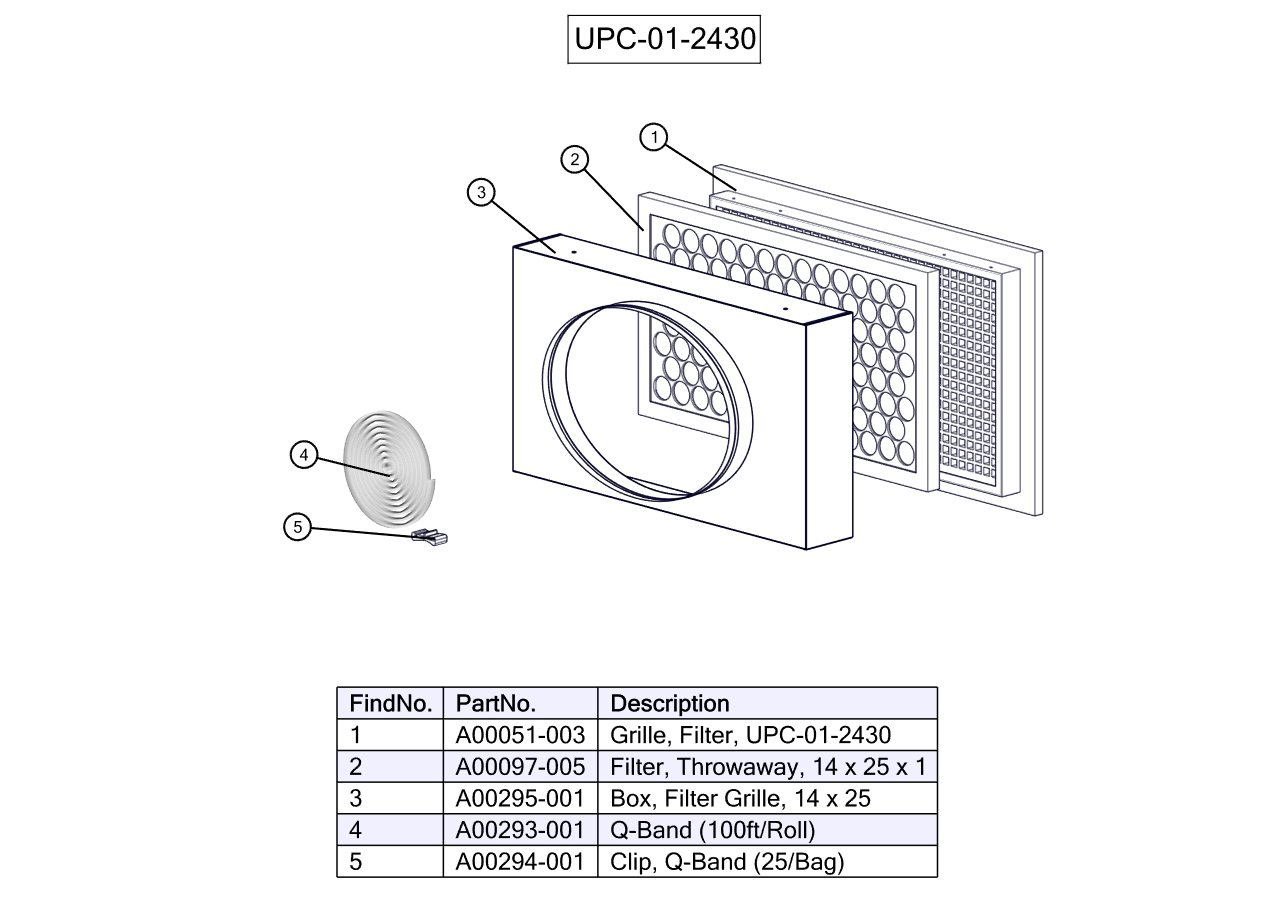

| UPC-01-2430 |  |
| [![UPC-01-2430\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/UPC-01-2430_Rev_A.jpg?width=688&height=486&name=UPC-01-2430_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Accessories/UPC-01-2430_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/UPC-01-2430.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/UPC-01-2430.zip?hsLang=en) |

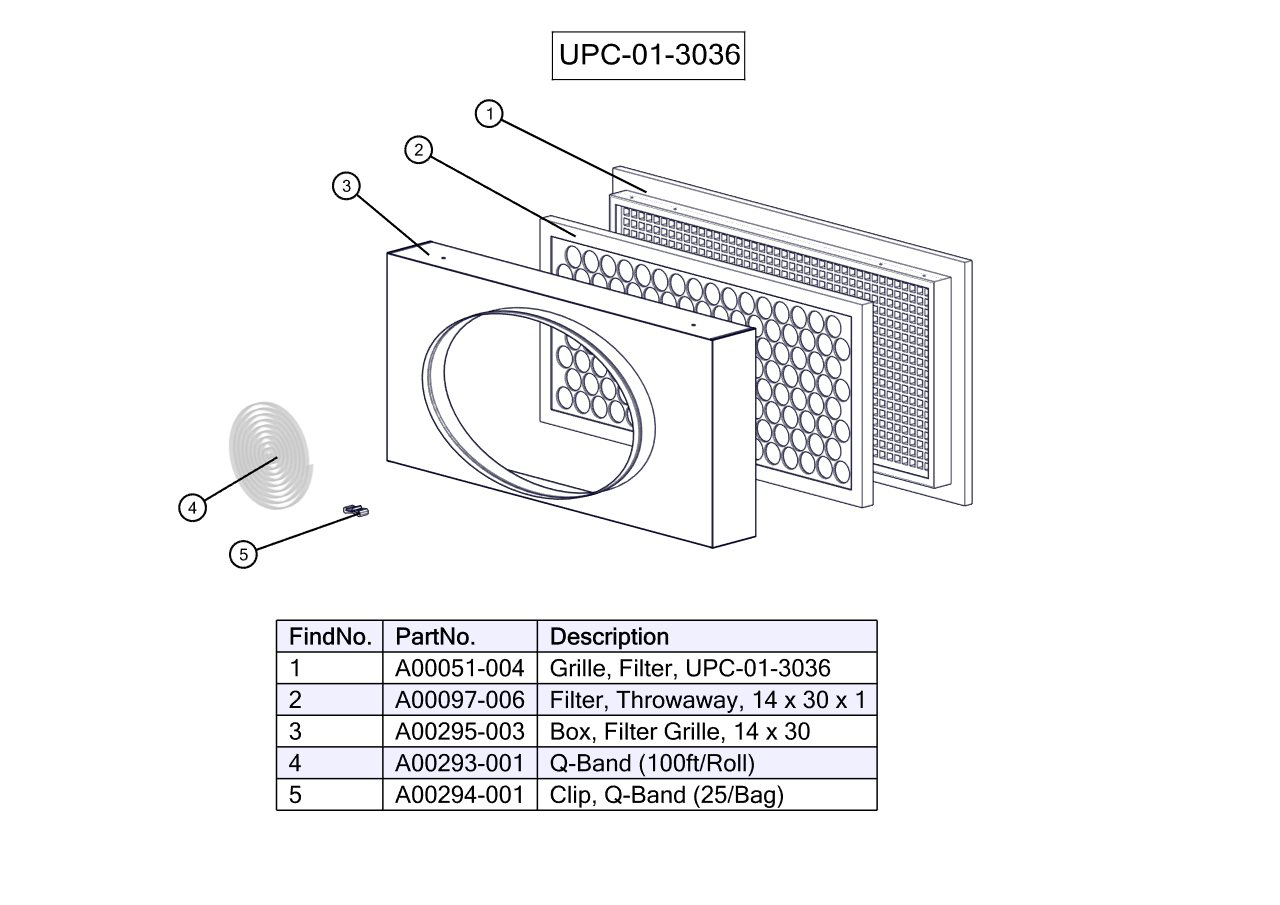

| UPC-01-3036 |  |
| [![UPC-01-3036\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/UPC-01-3036_Rev_A.jpg?width=688&height=486&name=UPC-01-3036_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Accessories/UPC-01-3036_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/UPC-01-3036_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/UPC-01-3036_Dimensional_Data.zip?hsLang=en) |

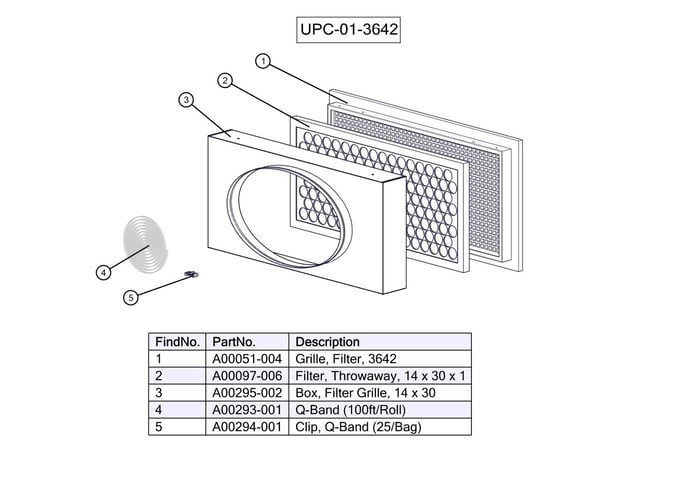

| UPC-01-3642 |  |
| ![UPC-01-3642\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/UPC-01-3642_Rev_A.jpg?width=688&height=486&name=UPC-01-3642_Rev_A.jpg) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/UPC-01-3642_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/UPC-01-3642_Dimensional_Data.zip?hsLang=en) |

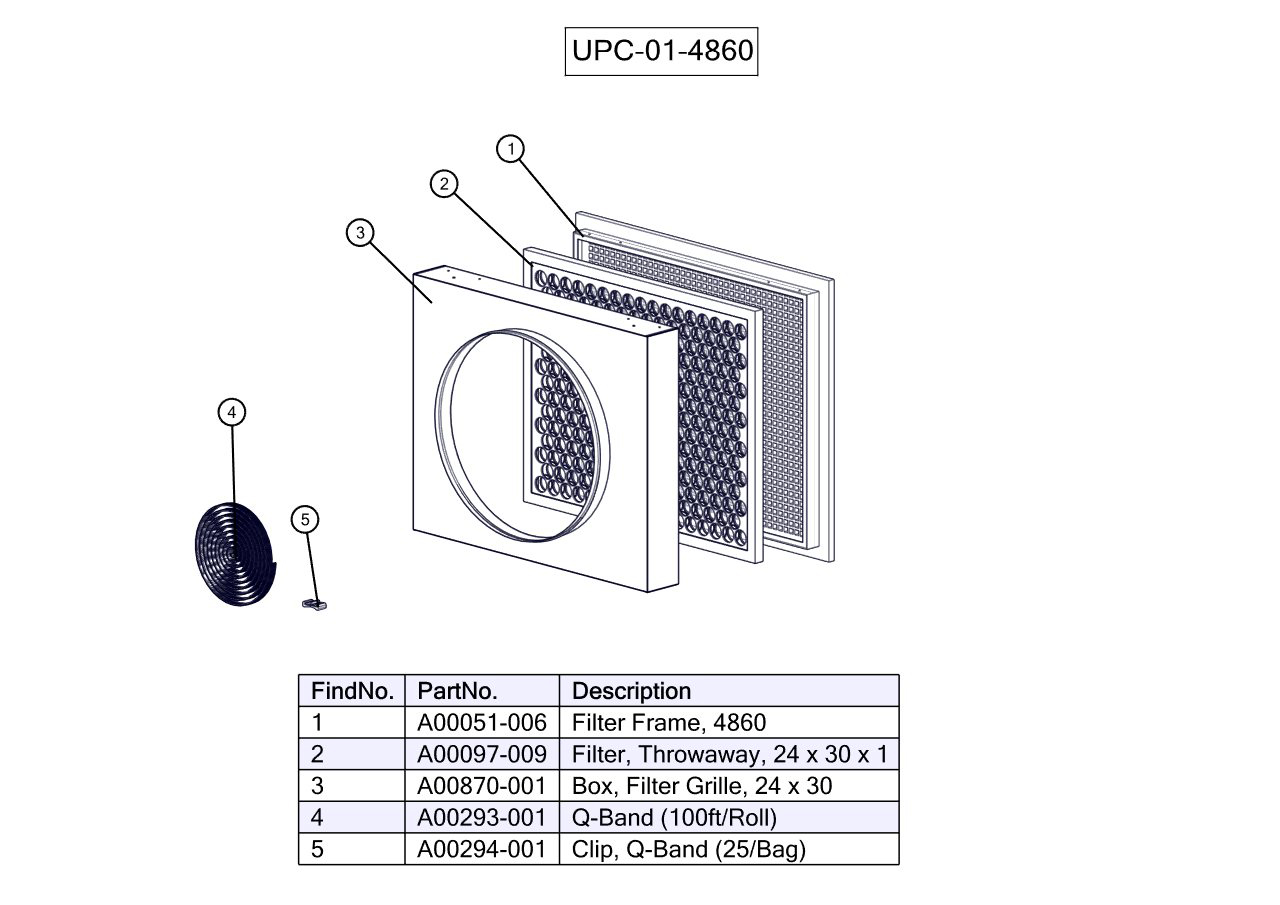

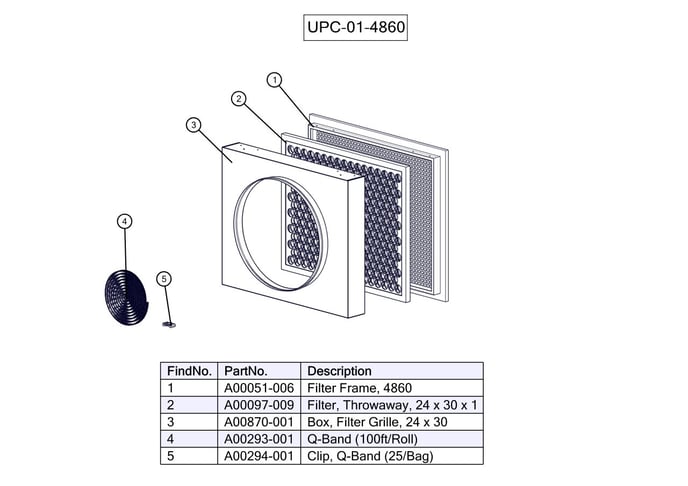

| UPC-01-4860 |  |
| [![UPC-01-4860\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Accessories/UPC-01-4860_Rev_A.jpg?width=688&height=486&name=UPC-01-4860_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Accessories/UPC-01-4860_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/UPC-01-4860_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/UPC-01-4860_Dimensional_Data.zip?hsLang=en) |

[Back to top](https://helpcenter.unicosystem.com/knowledge/accessories#Top_of_page)

**Return Air Modules**

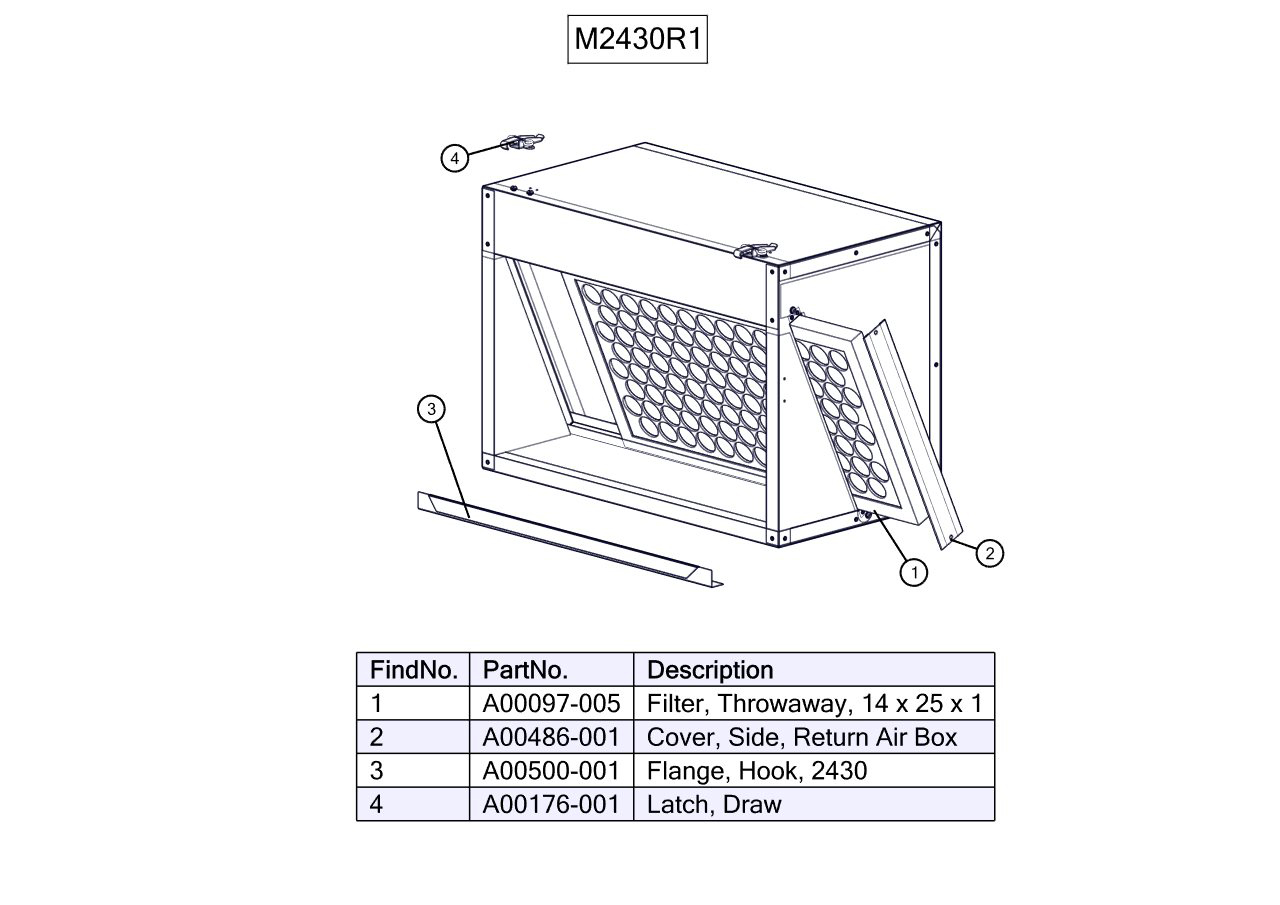

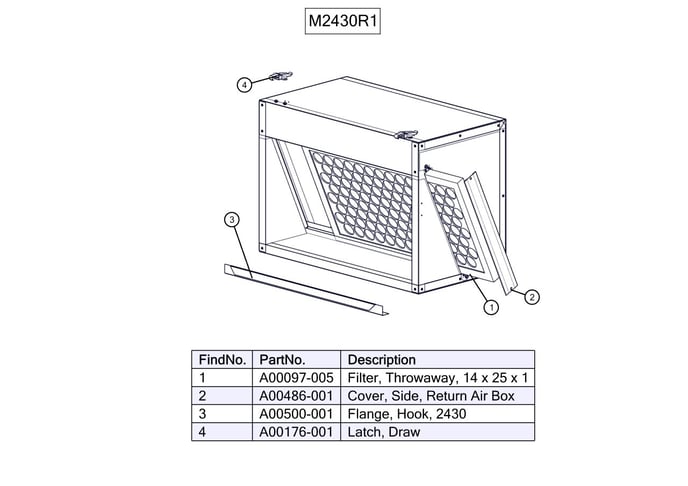

| M2430R1 |  |
| --- | --- |
| [![M2430R1\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430R1_Rev_A.jpg?width=688&height=486&name=M2430R1_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430R1_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/M2430R1.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/M2430R1.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/MXXXXR1.zip?hsLang=en) [Submittals](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Submittals/SB-M2430R1.001.pdf?hsLang=en) |

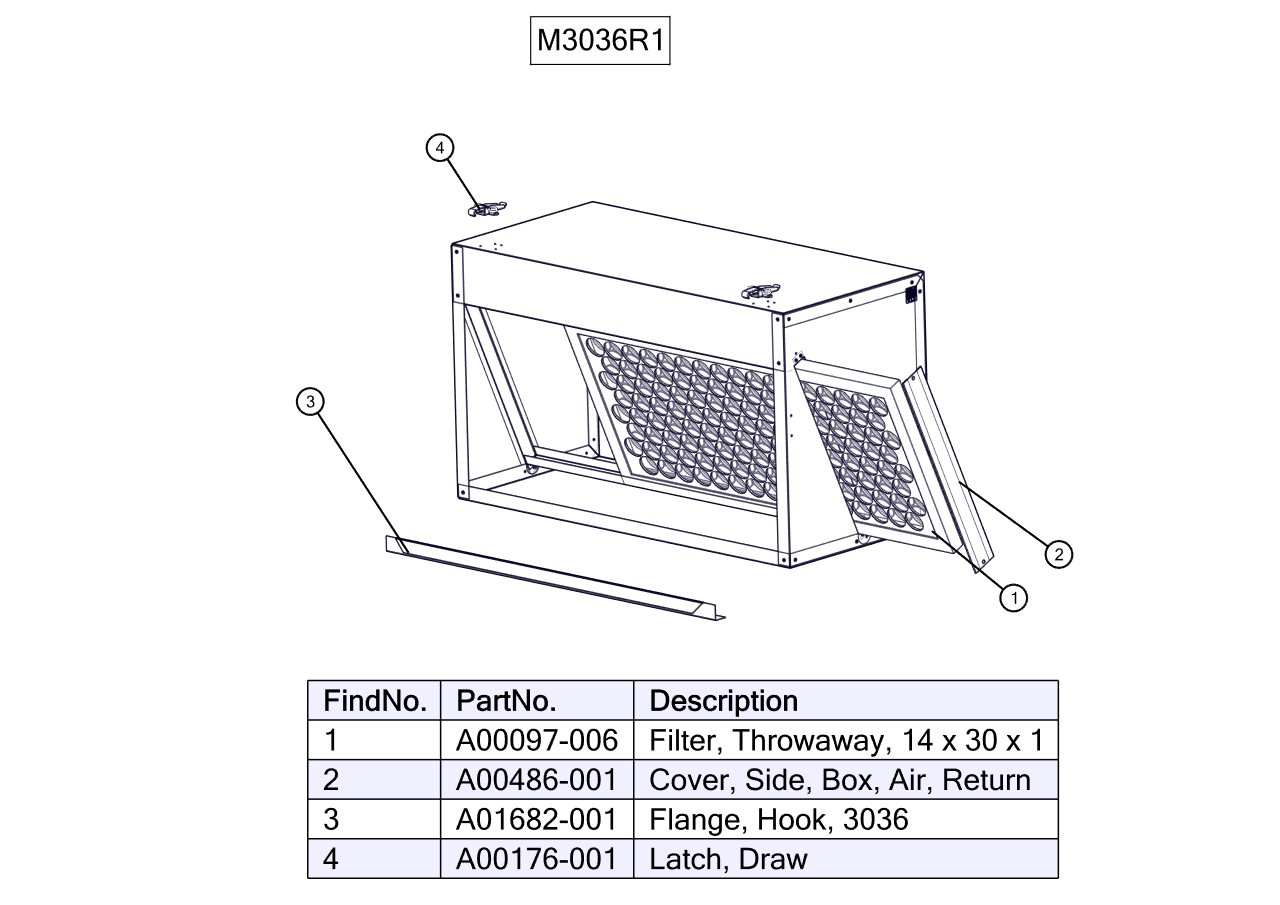

| M3036R1 |  |
| [![M3036R1\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3036R1_Rev_A.jpg?width=688&height=486&name=M3036R1_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3036R1_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/M3036R1_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/M3036R1_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/MXXXXR1.zip?hsLang=en) [Submittals](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Submittals/SB-M3036R1.001.pdf?hsLang=en) |

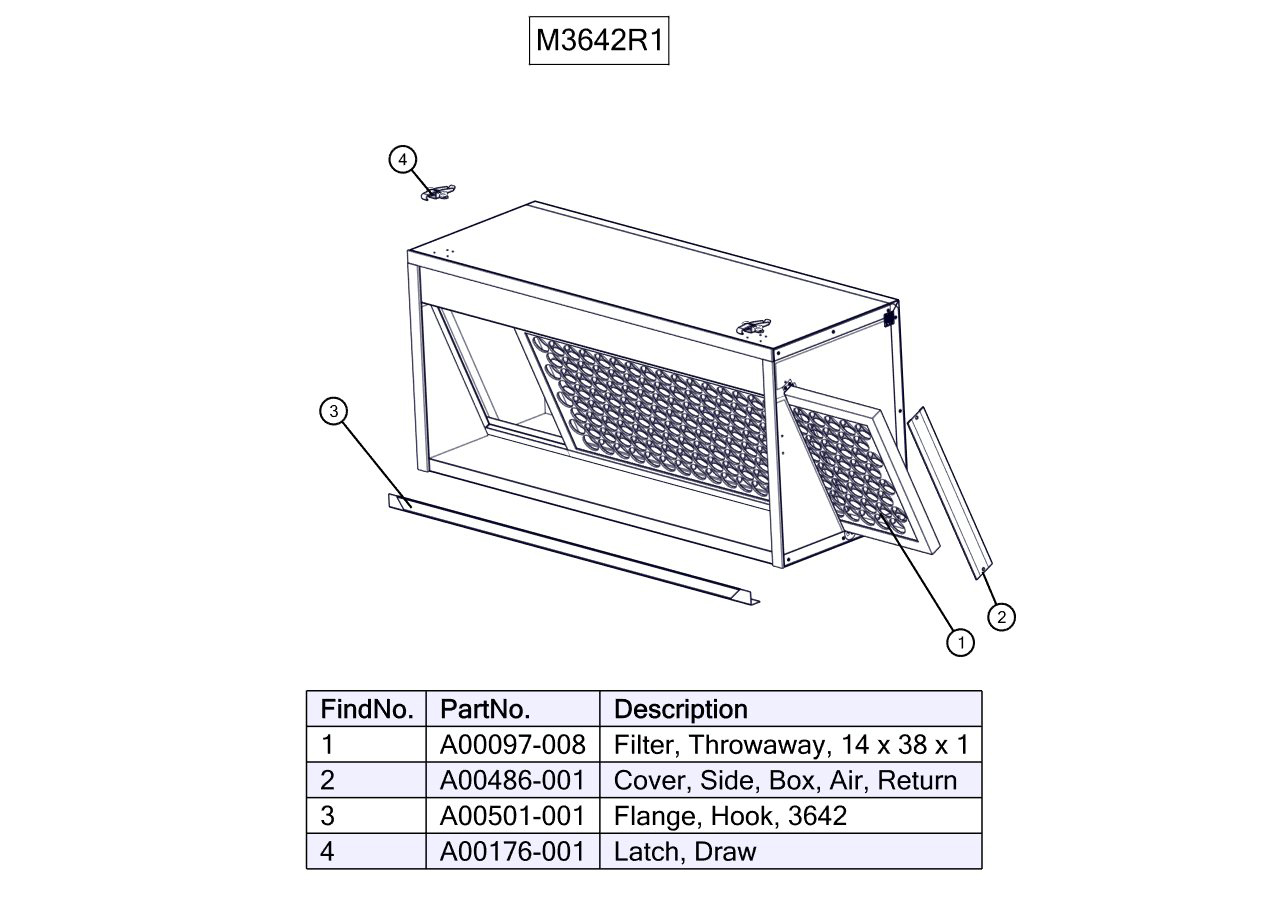

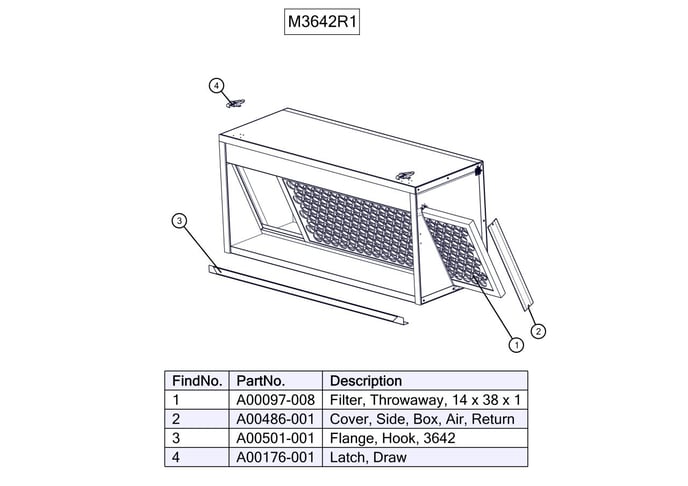

| M3642R1 |  |
| [![M3642R1\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3642R1_Rev_A.jpg?width=688&height=486&name=M3642R1_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3642R1_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/M3642R1_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/M3642R1_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/MXXXXR1.zip?hsLang=en) [Submittals](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Submittals/SB-M3642R1.001.pdf?hsLang=en) |

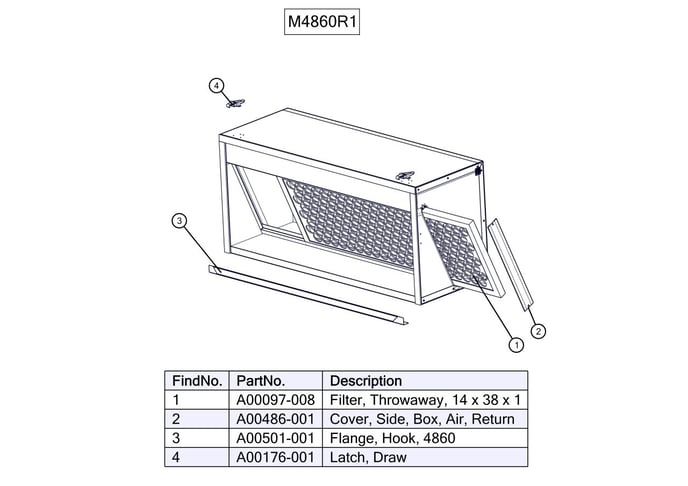

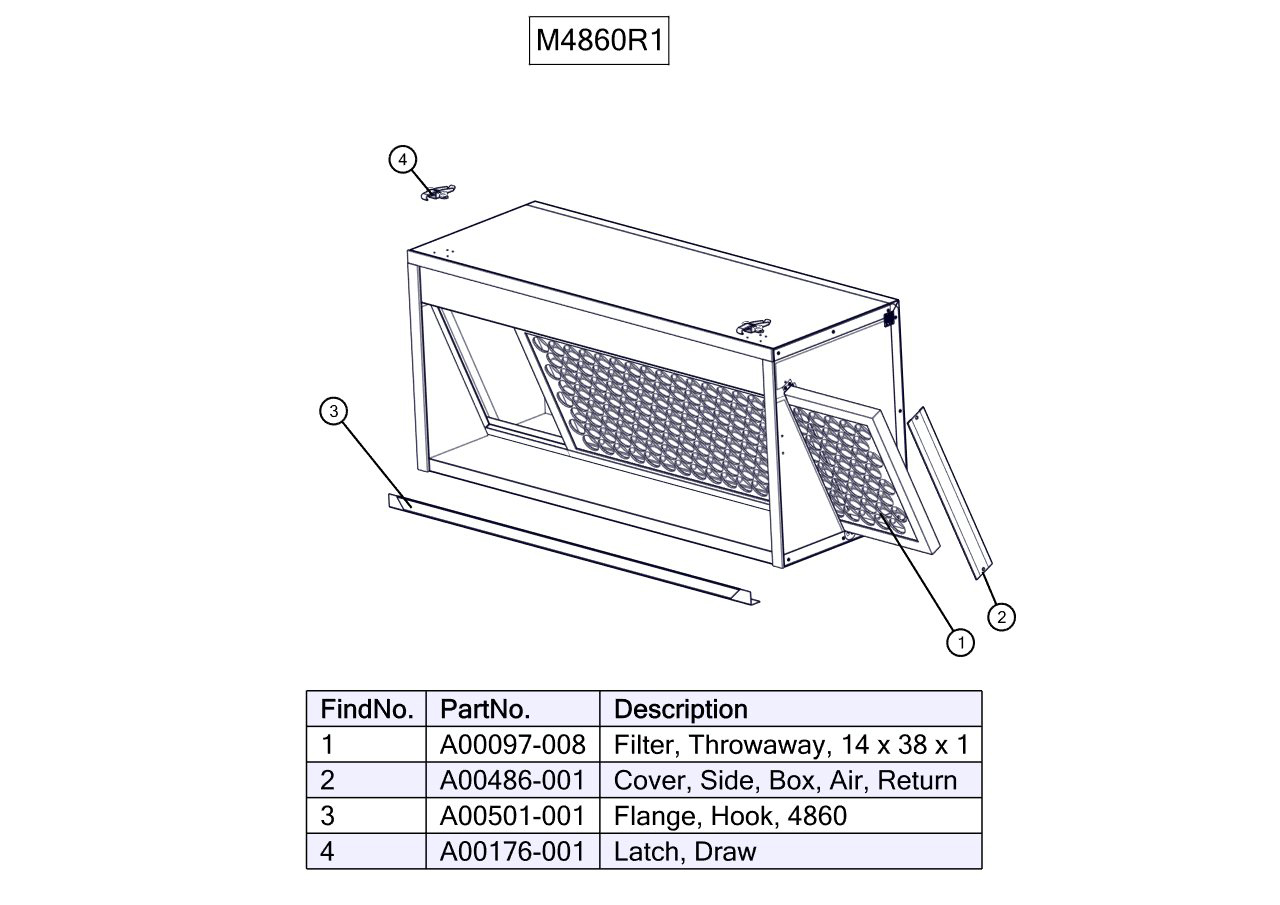

| M4860R1 |  |
| [![M4860R1\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M4860R1_Rev_A.jpg?width=688&height=486&name=M4860R1_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M4860R1_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/M4860R1_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/M4860R1_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/MXXXXR1.zip?hsLang=en) [Submittals](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Submittals/SB-M4860R1.001.pdf?hsLang=en) |

[Back to top](https://helpcenter.unicosystem.com/knowledge/accessories#Top_of_page)

**Vertical Plenum Modules**

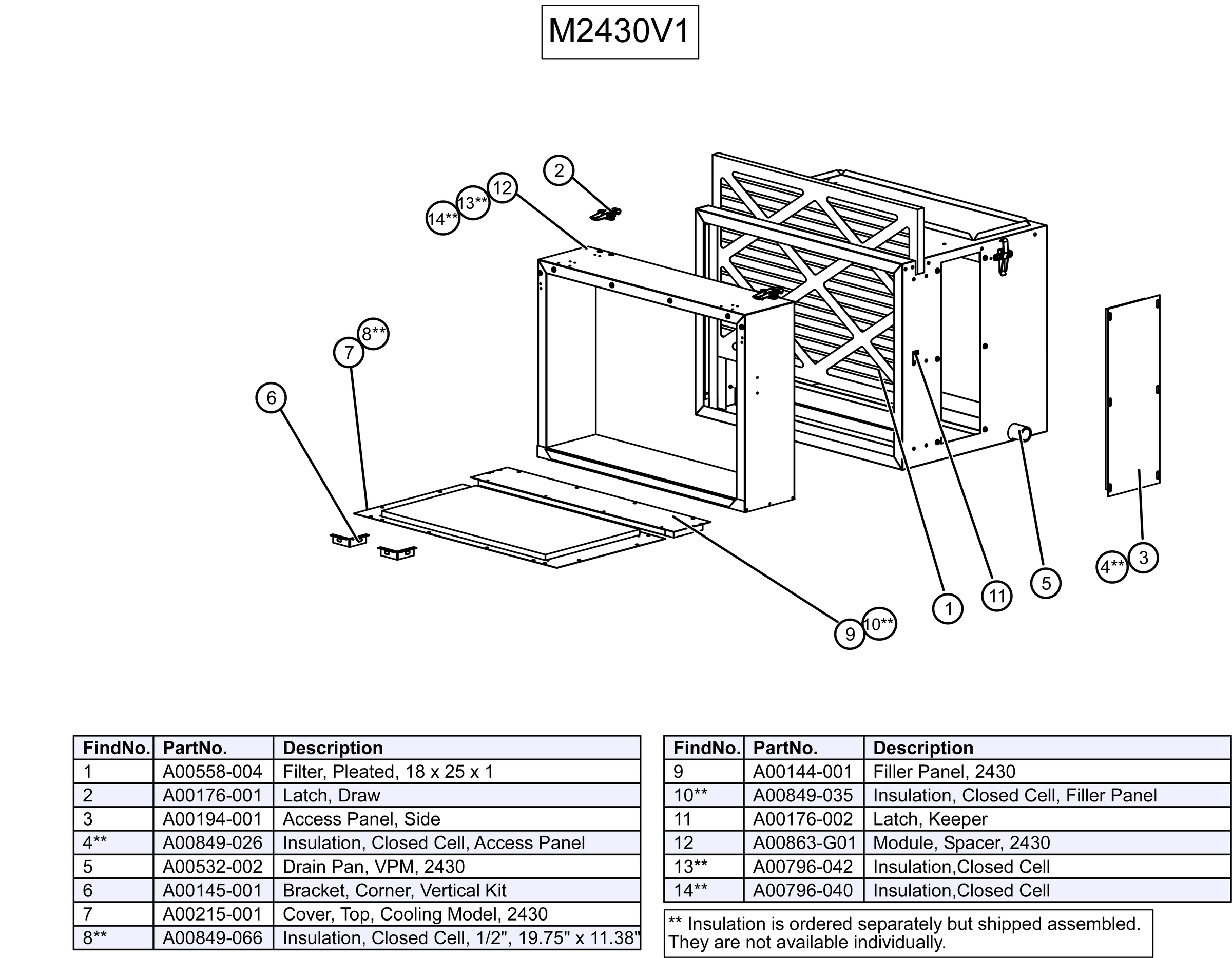

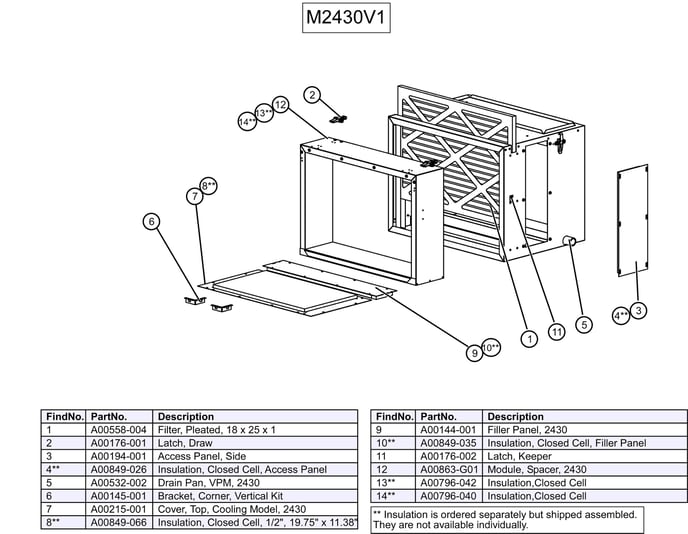

| M2430V1 |  |
| --- | --- |
| [![M2430V1\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430V1_Rev_A.jpg?width=688&height=535&name=M2430V1_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430V1_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/M2430V1.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/M2430V1.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/MXXXXV1.zip?hsLang=en) [Submittals](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Submittals/SB-M2430V1.001.pdf?hsLang=en) |

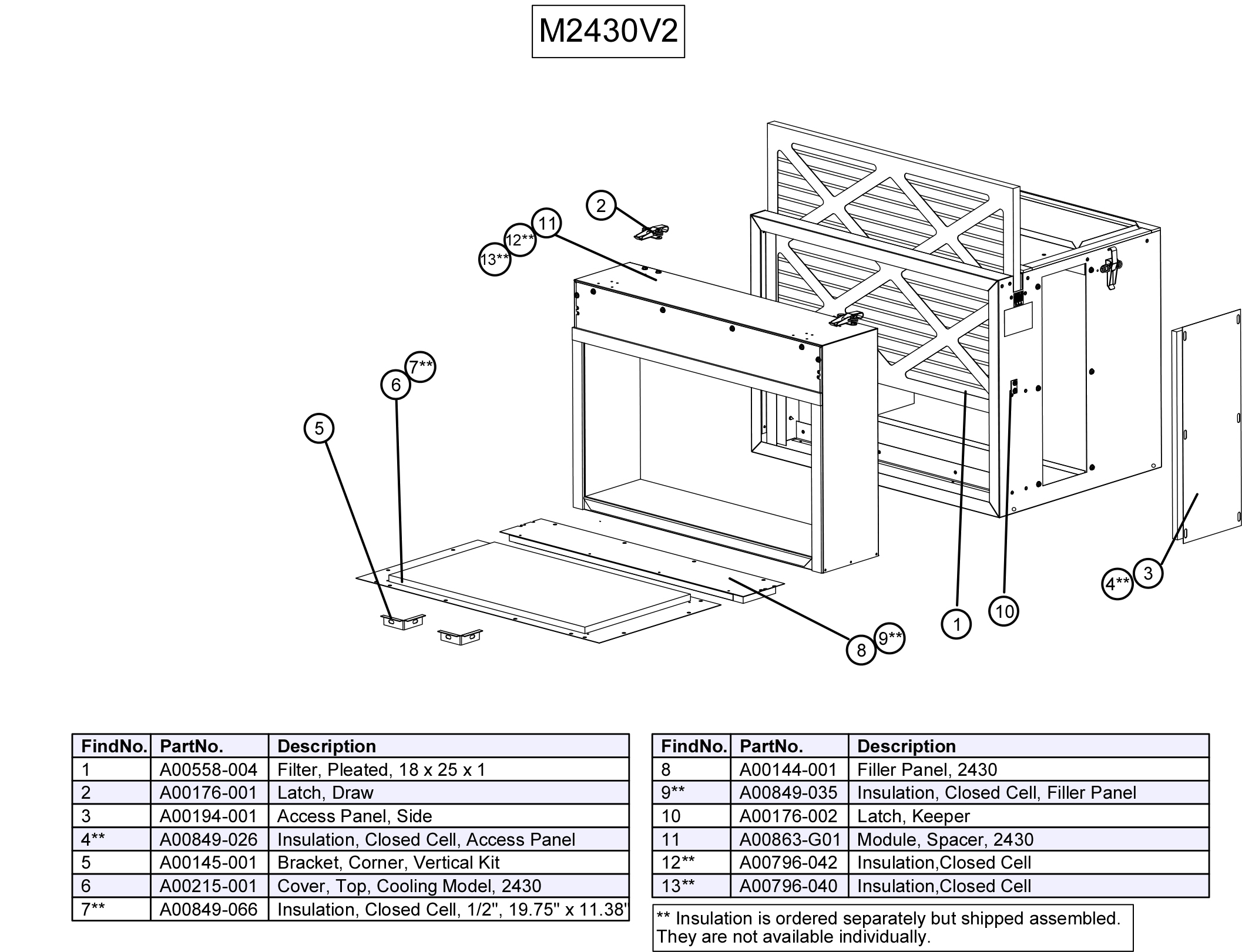

| M2430V2 |  |
| [![M2430V2\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430V2_Rev_A.jpg?width=688&height=528&name=M2430V2_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430V2_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/M2430V2.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/M2430V2.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/MXXXXV2.zip?hsLang=en) [Submittals](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Submittals/SB-M2430V2.001.pdf?hsLang=en) |

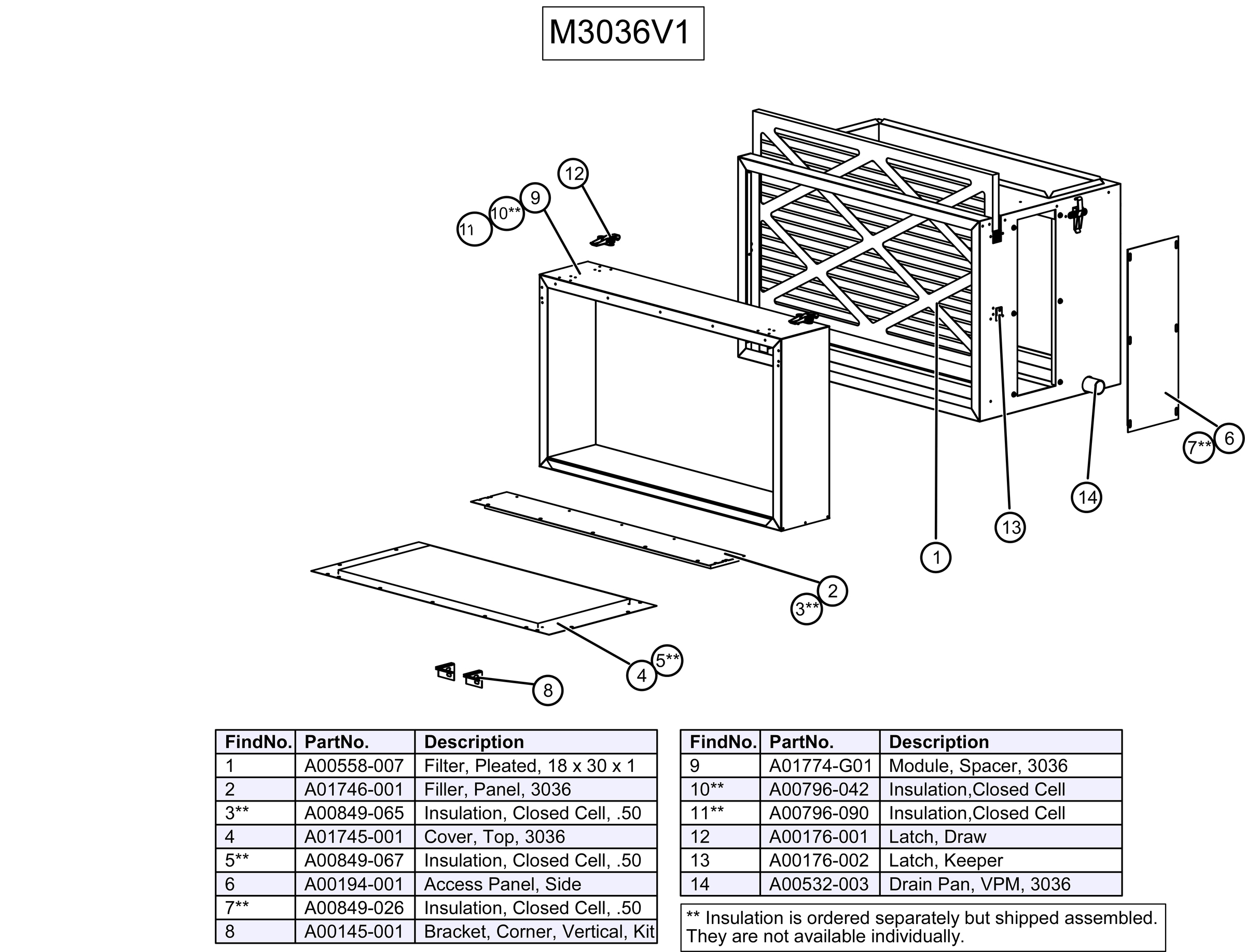

| M3036V1 |  |
| [![M3036V1\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3036V1_Rev_A.jpg?width=688&height=526&name=M3036V1_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3036V1_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/M3036V1_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/M3036V1_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/MXXXXV1.zip?hsLang=en) [Submittals](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Submittals/SB-M3036V1.001.pdf?hsLang=en) |

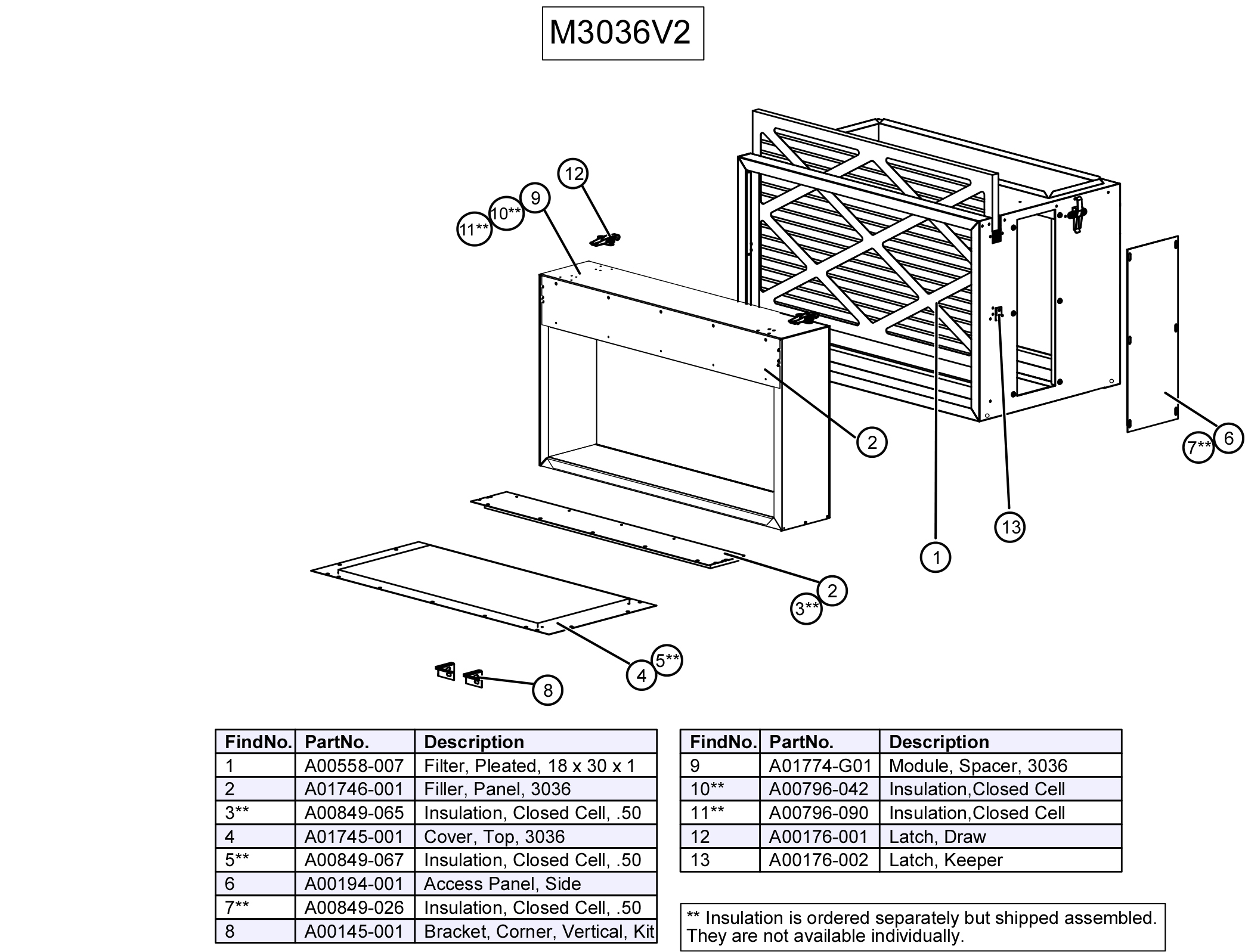

| M3036V2 |  |
| [![M3036V2\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3036V2_Rev_A.jpg?width=688&height=526&name=M3036V2_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3036V2_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/M3036V2_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/M3036V2_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/MXXXXV2.zip?hsLang=en) [Submittals](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Submittals/SB-M3036V2.001.pdf?hsLang=en) |

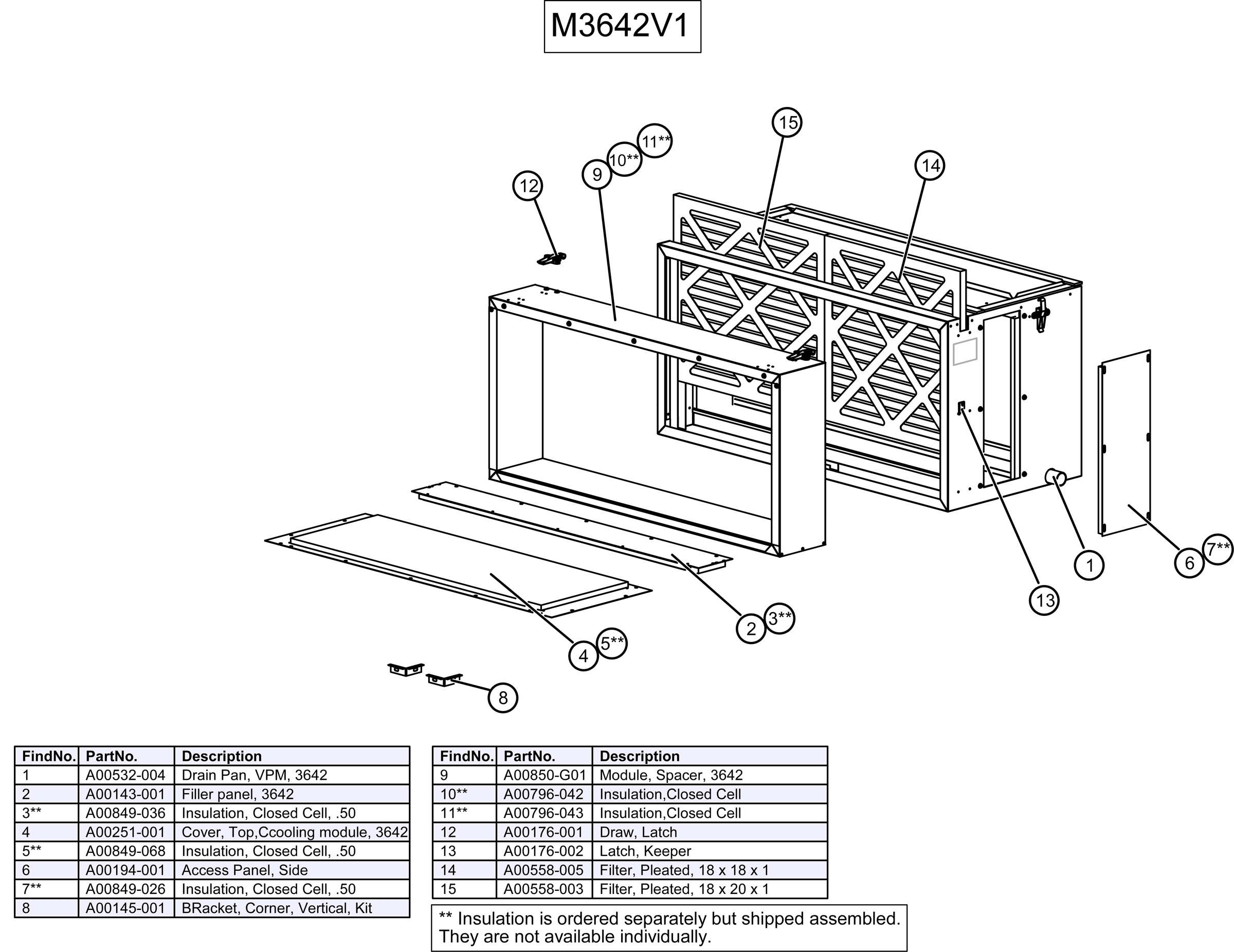

| M3642V1 |  |
| [![M3642V1\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3642V1_Rev_A.jpg?width=688&height=531&name=M3642V1_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3642V1_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/M3642V1_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/M3642V1_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/MXXXXV1.zip?hsLang=en) [Submittals](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Submittals/SB-M3642V1.001.pdf?hsLang=en) |

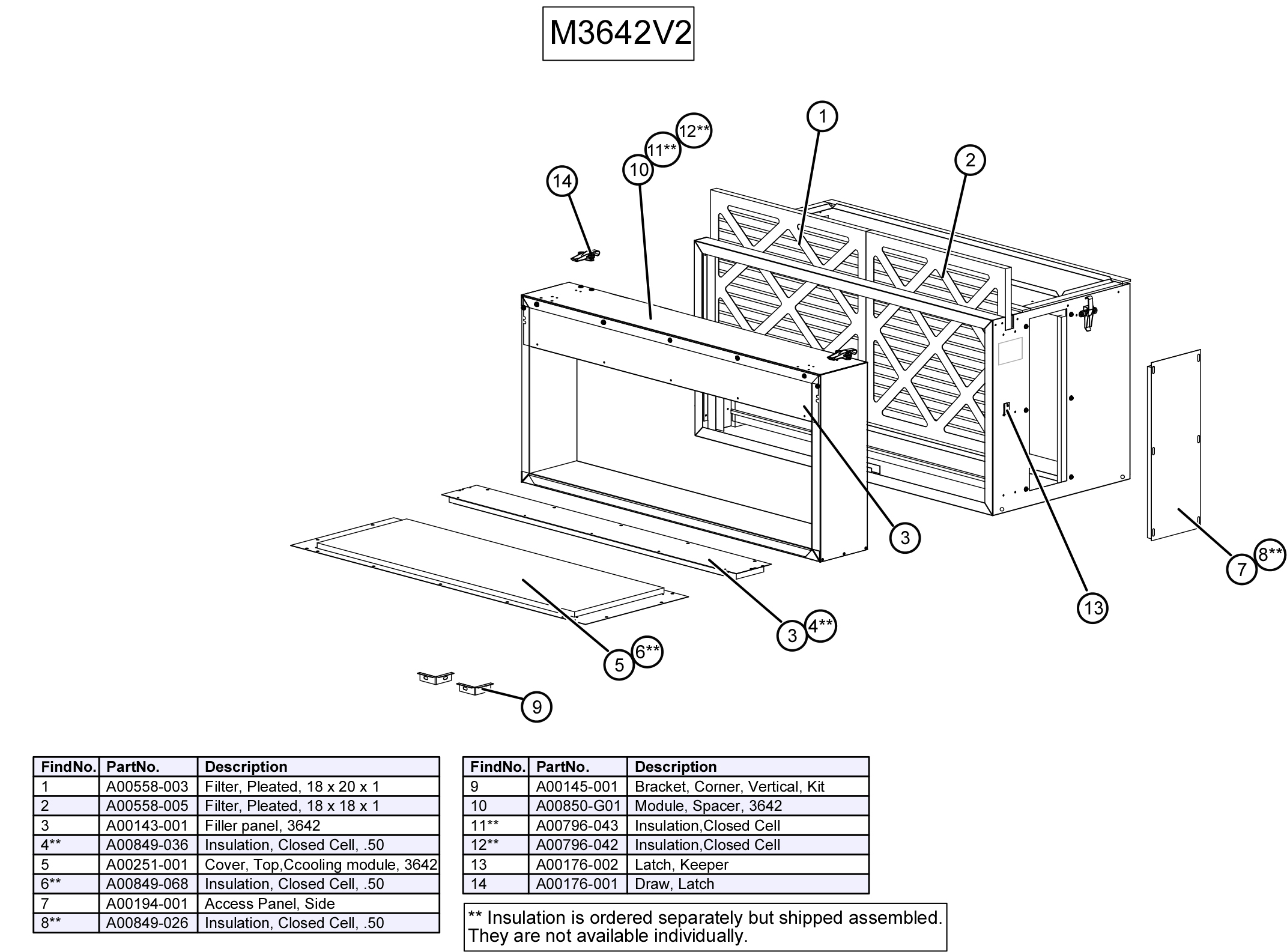

| M3642V2 |  |
| [![M3642V2\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3642V2_Rev_A.jpg?width=688&height=509&name=M3642V2_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M3642V2_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/M3642V2_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/M3642V2_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/MXXXXV2.zip?hsLang=en) [Submittals](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Submittals/SB-M3642V2.001.pdf?hsLang=en) |

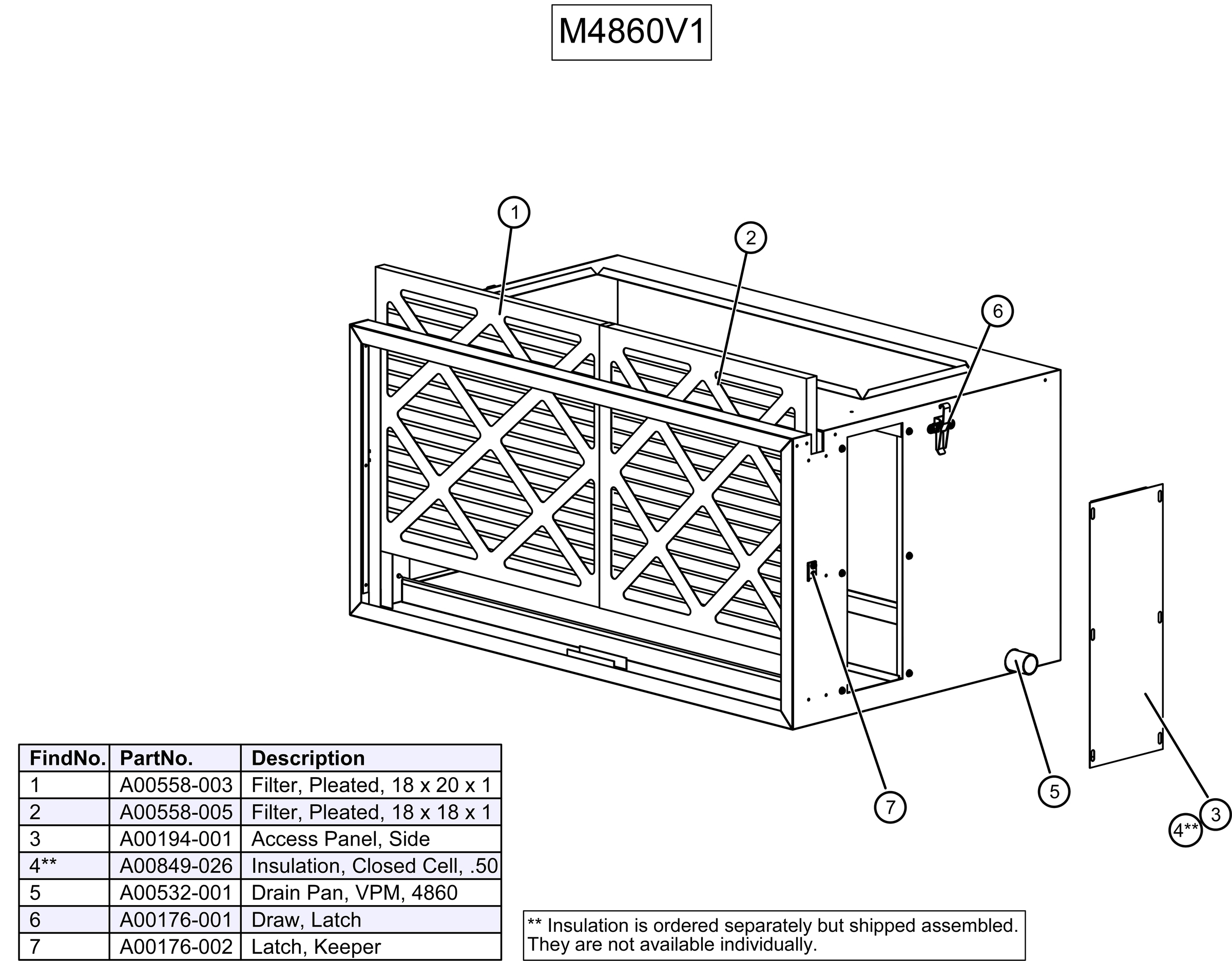

| M4860V1 |  |
| [![M4860V1\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M4860V1_Rev_A.jpg?width=688&height=537&name=M4860V1_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M4860V1_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/M4860V1_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/M4860V1_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/MXXXXV1.zip?hsLang=en) [Submittals](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Submittals/SB-M4860V1.001.pdf?hsLang=en) |

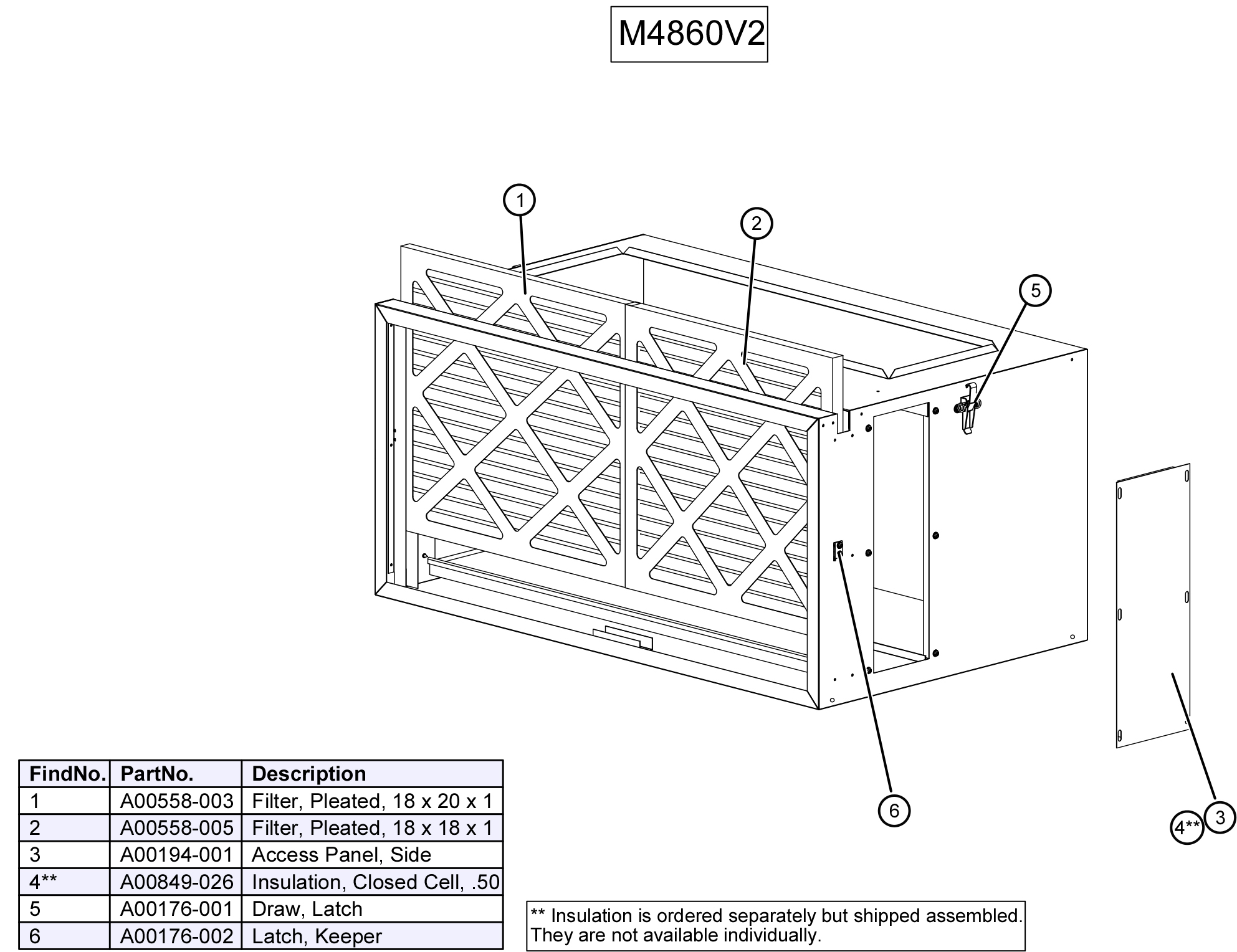

| M4860V2 |  |
| [![M2430V2\_Rev\_A](https://helpcenter.unicosystem.com/hs-fs/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M2430V2_Rev_A.jpg?width=688&height=528&name=M2430V2_Rev_A.jpg)](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Drawings/Blower%20AHU/M4860V2_Rev_A.jpg?hsLang=en) | [Dimensional Data](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Dimensional%20Data%20(.pdf%20files)/M4860V2_Dimensional_Data.pdf?hsLang=en) [DXF CAD](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/CAD%20Dimensional%20Data%20(.zip%20files)/M4860V2_Dimensional_Data.zip?hsLang=en) [Technical Specs](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Technical%20Specifications%20(.zip%20files)/MXXXXV2.zip?hsLang=en) [Submittals](https://helpcenter.unicosystem.com/hubfs/Exploded%20View%20Tech%20Files/Submittals/SB-M4860V2.001.pdf?hsLang=en) |
